Inflatable Restraint Steering Wheel Module




Component Connector End Views

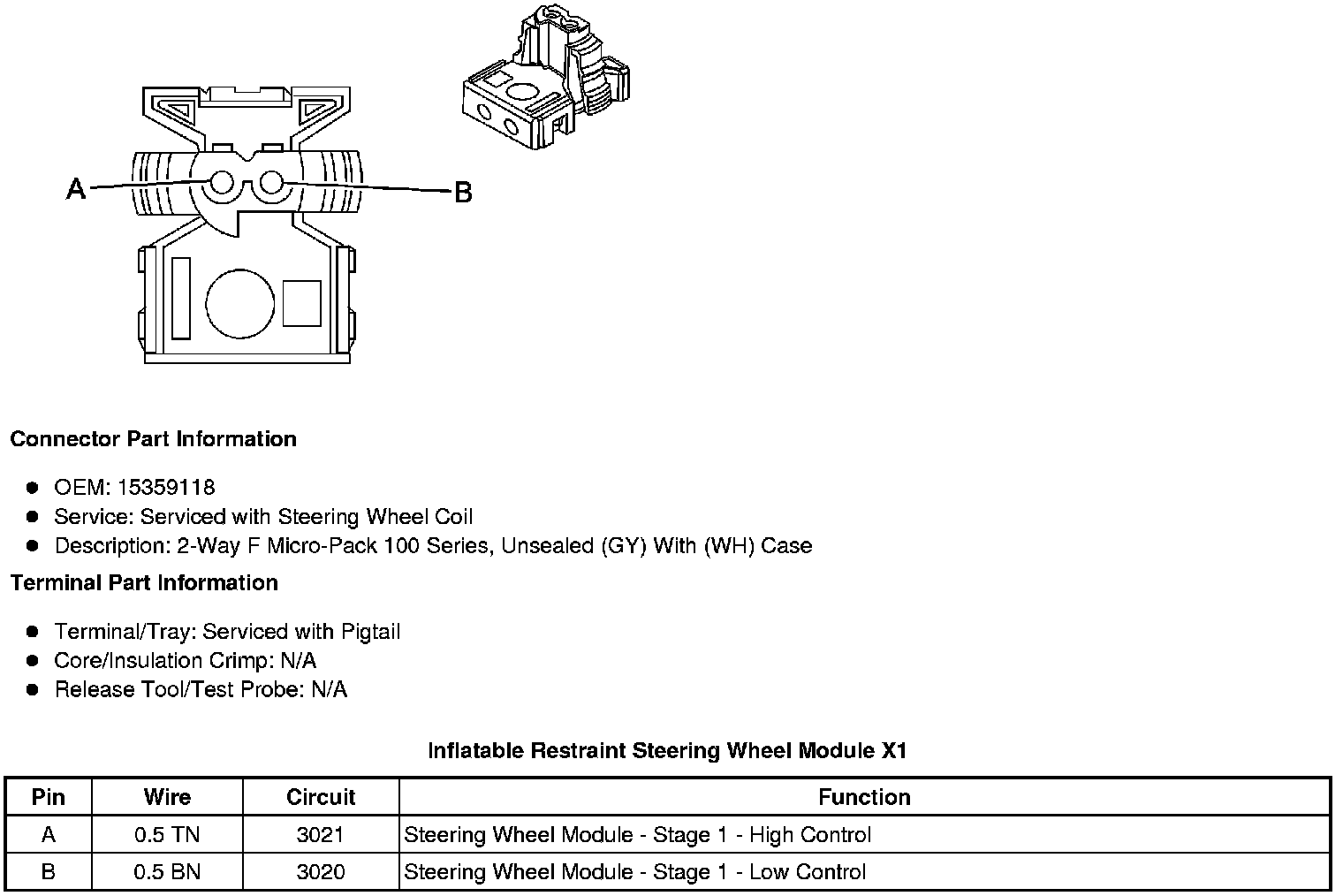

Inflatable Restraint Steering Wheel Module X1

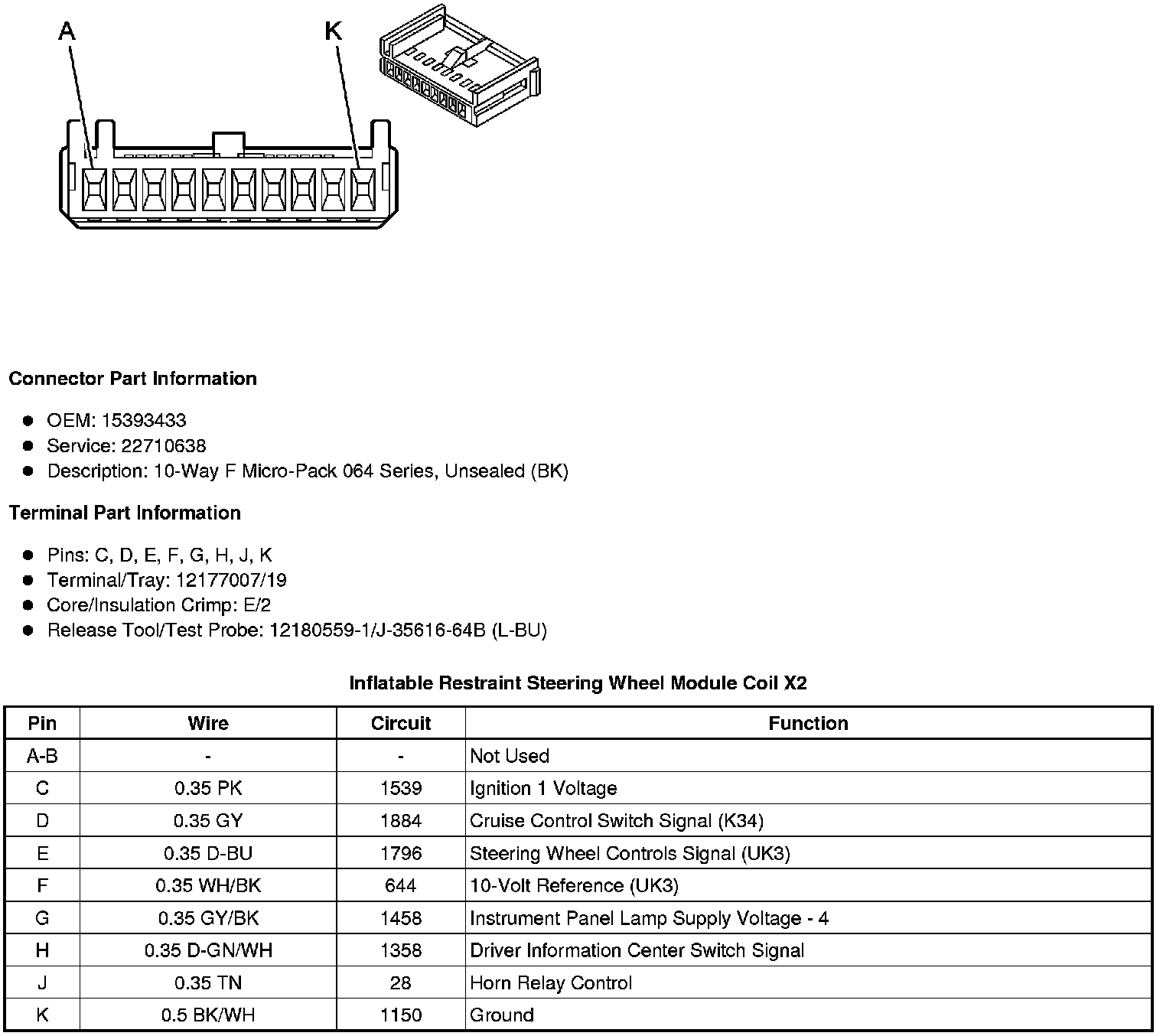

Inflatable Restraint Steering Wheel Module Coil X2

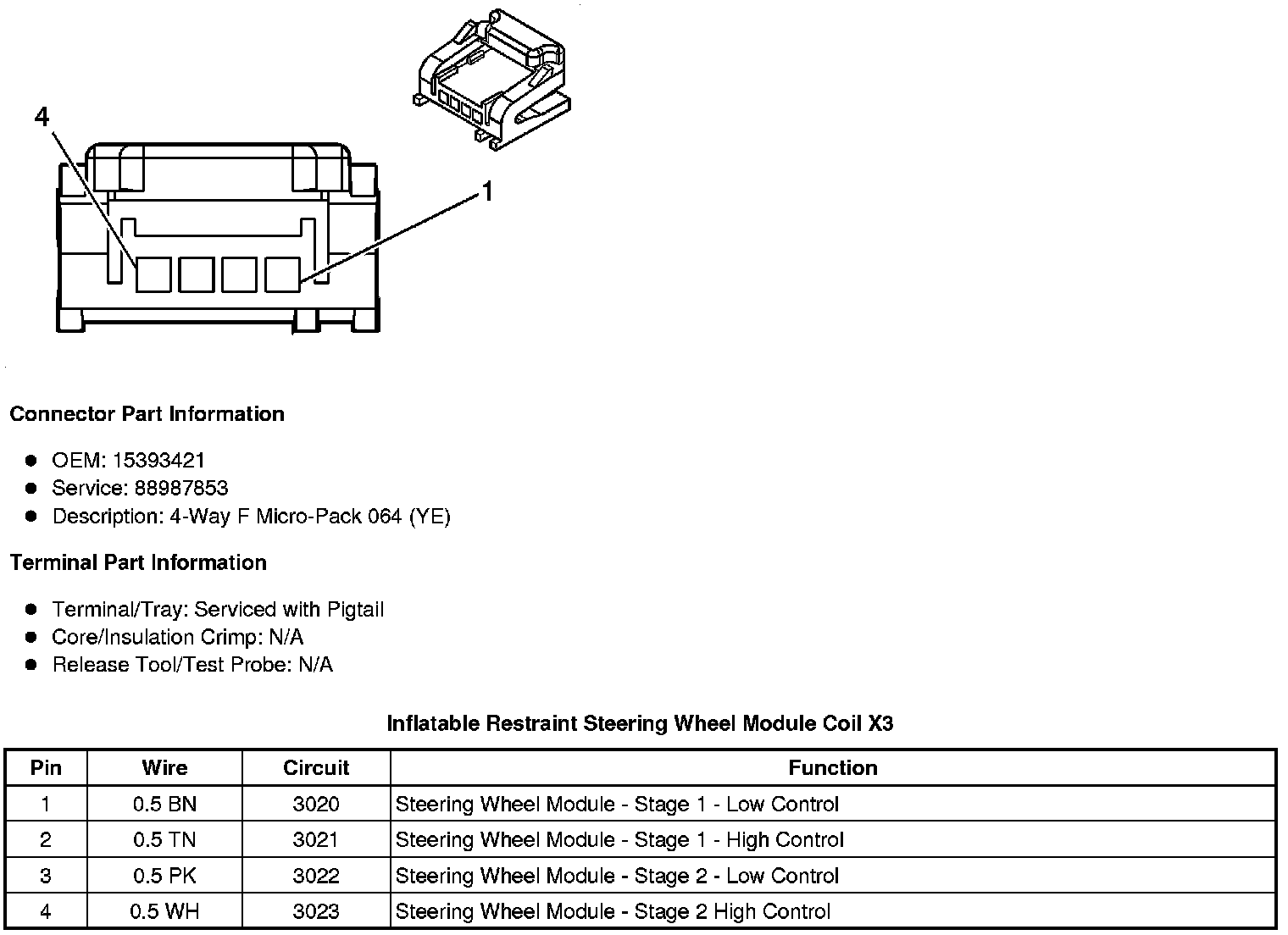

Inflatable Restraint Steering Wheel Module Coil X3
