Body Control Module
Electrical Center Identification Views

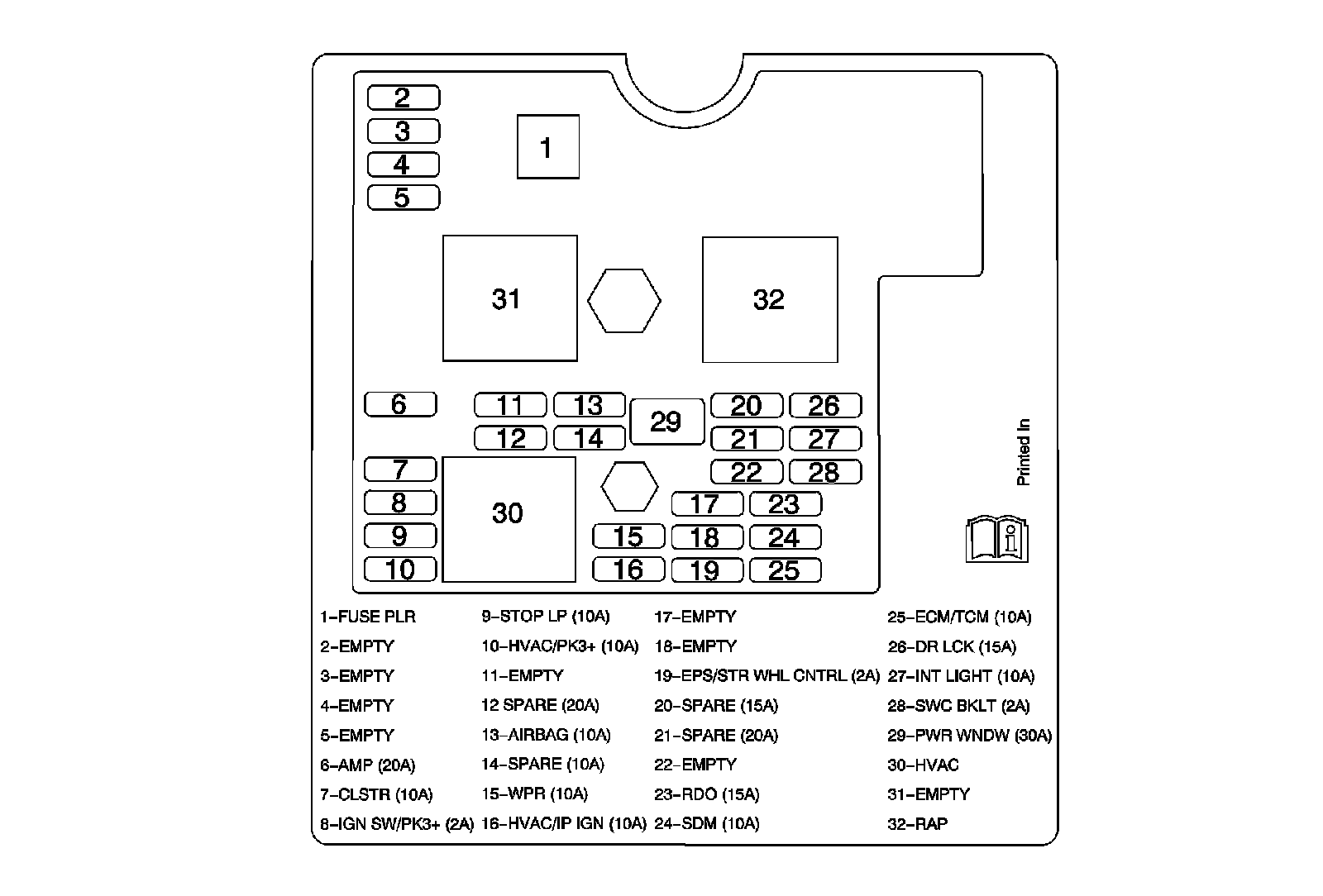

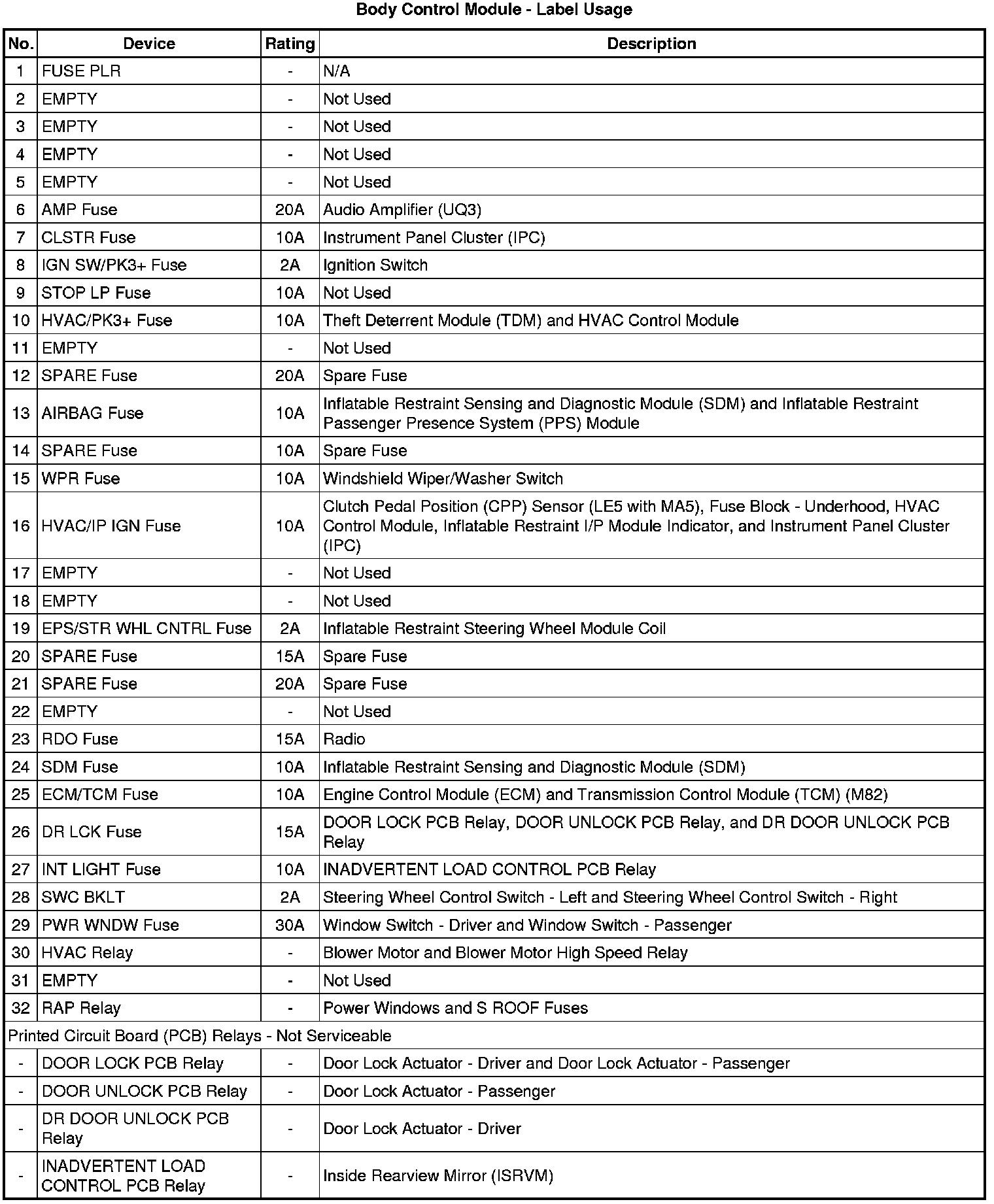

Body Control Module Label
Electrical Center Identification Views

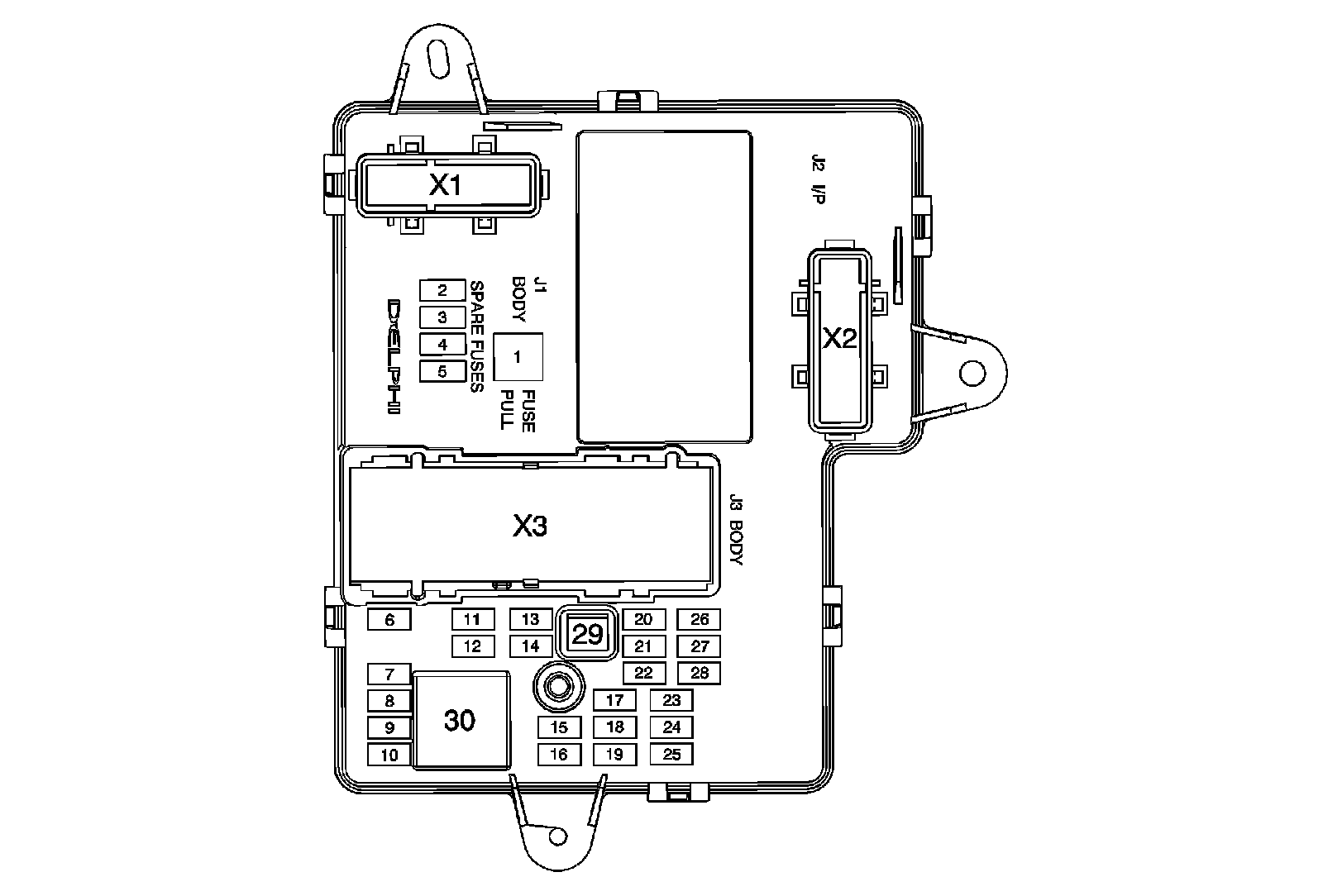

Body Control Module - Top View

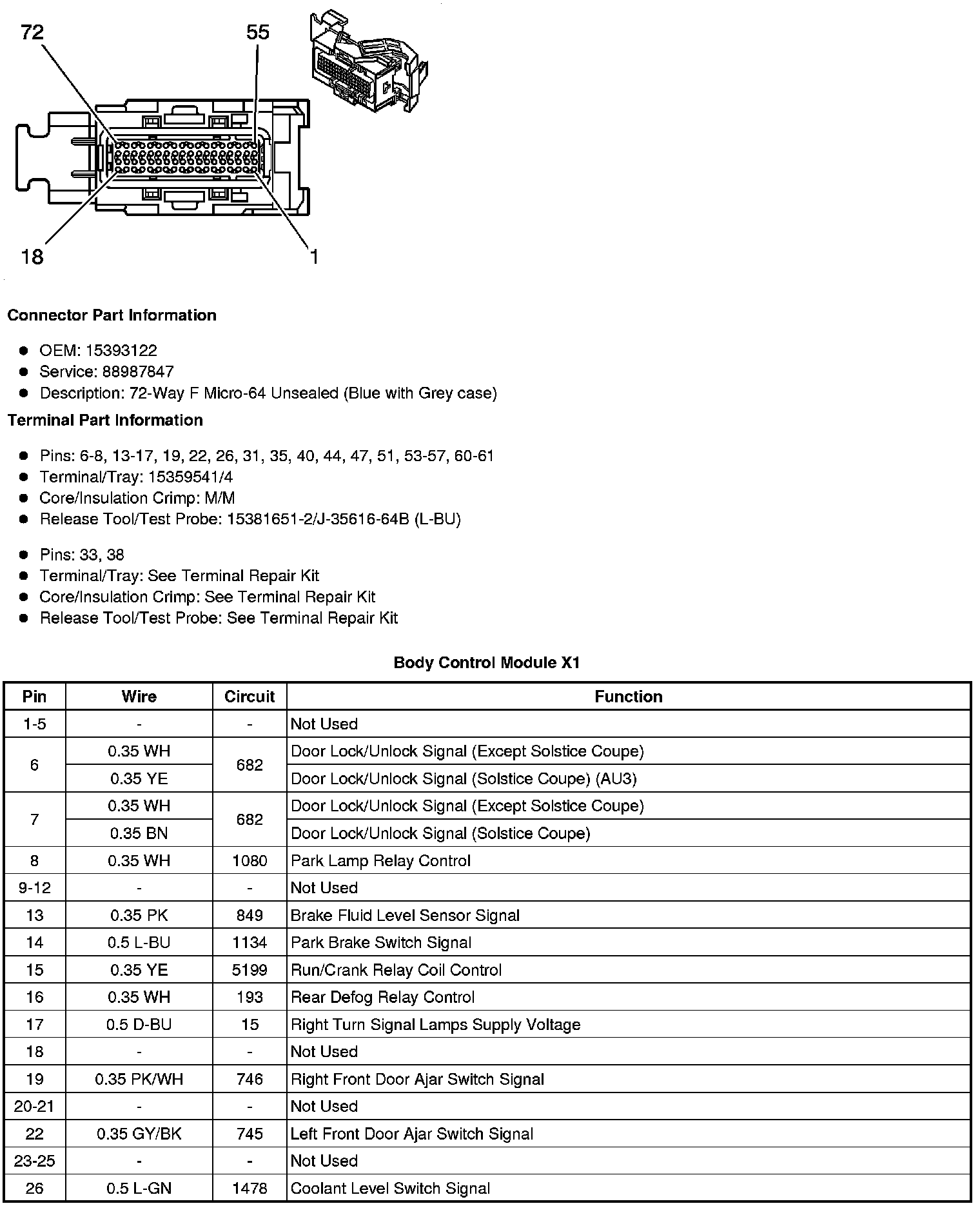

Body Control Module X1

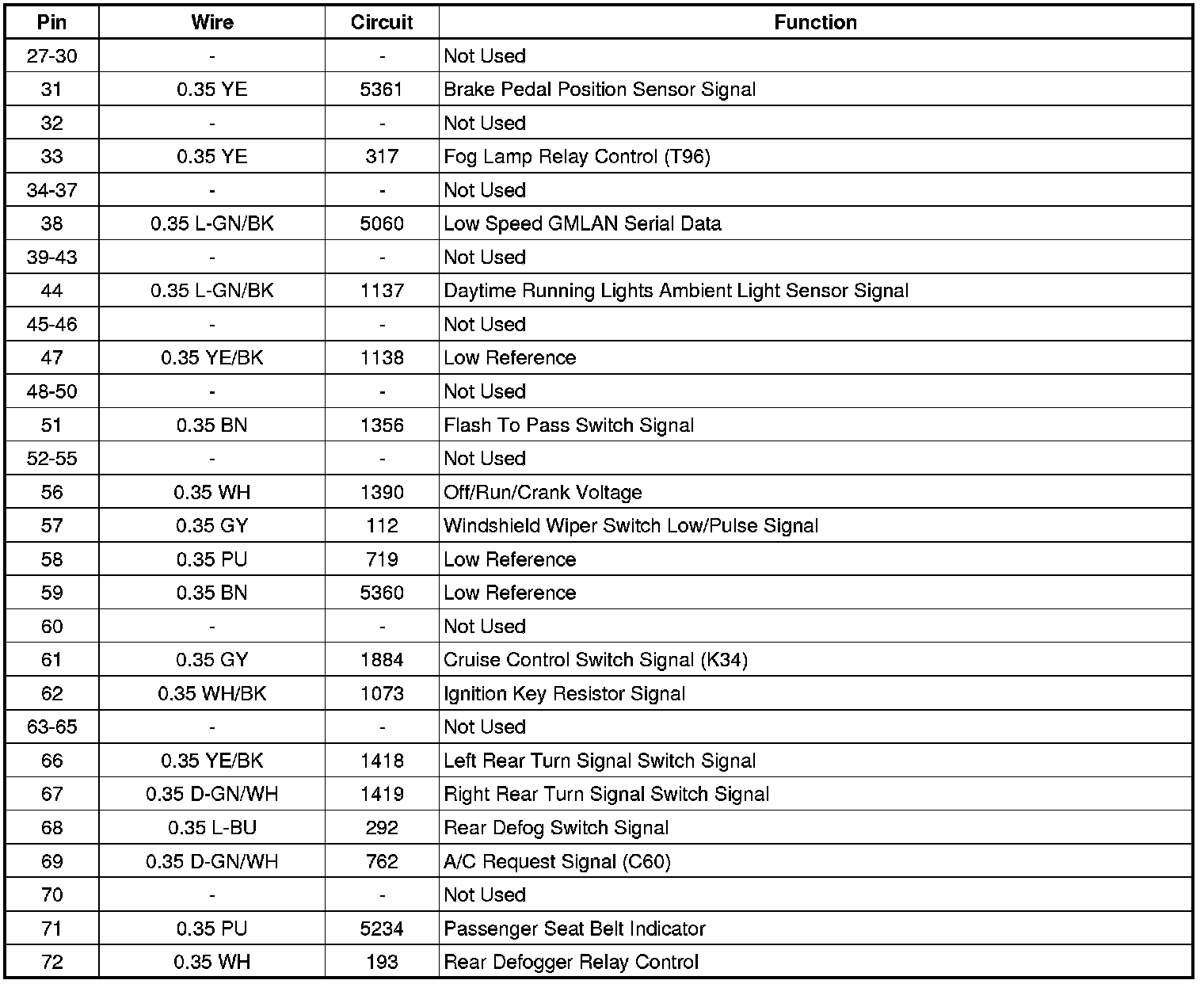

27-72:

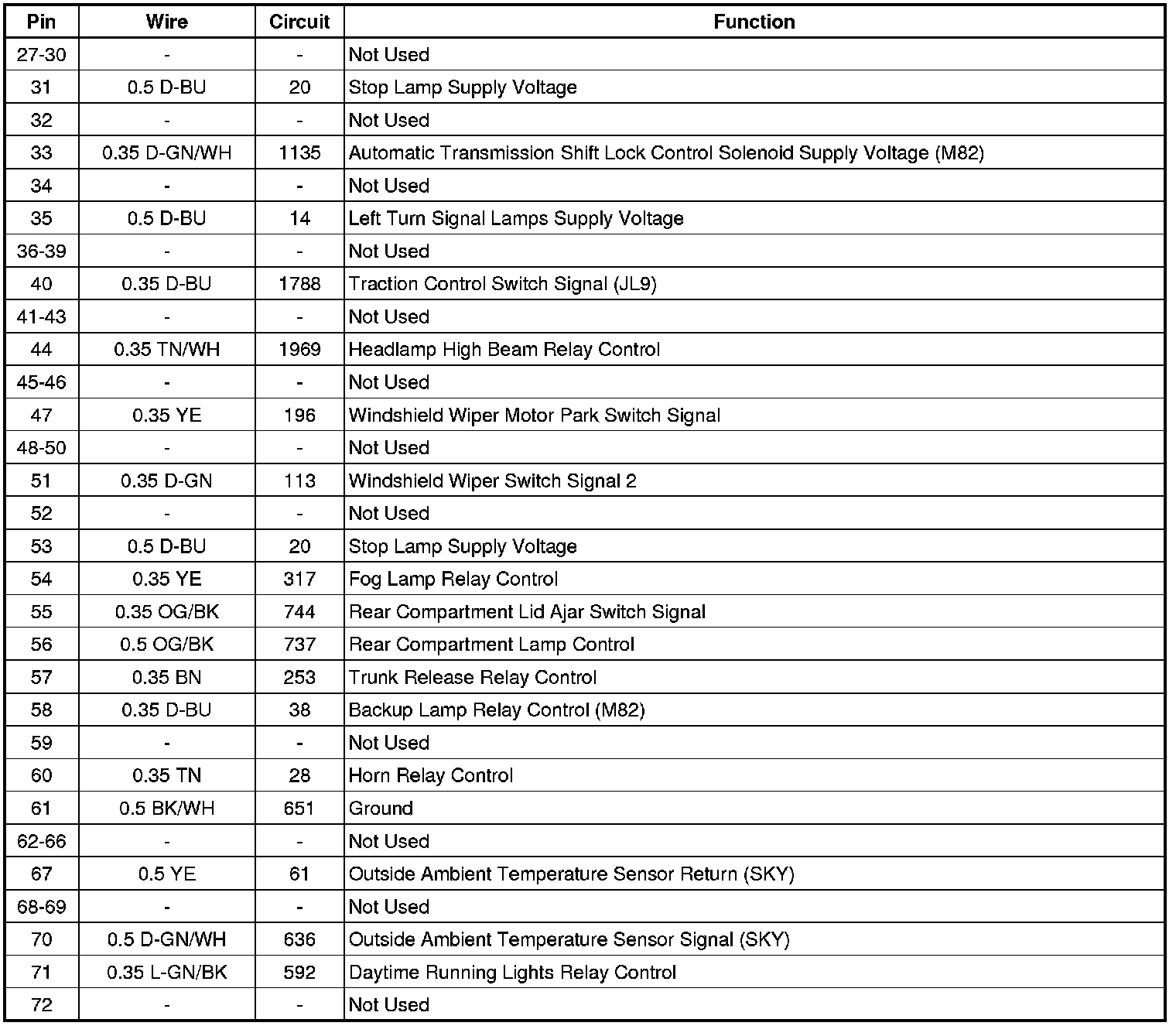

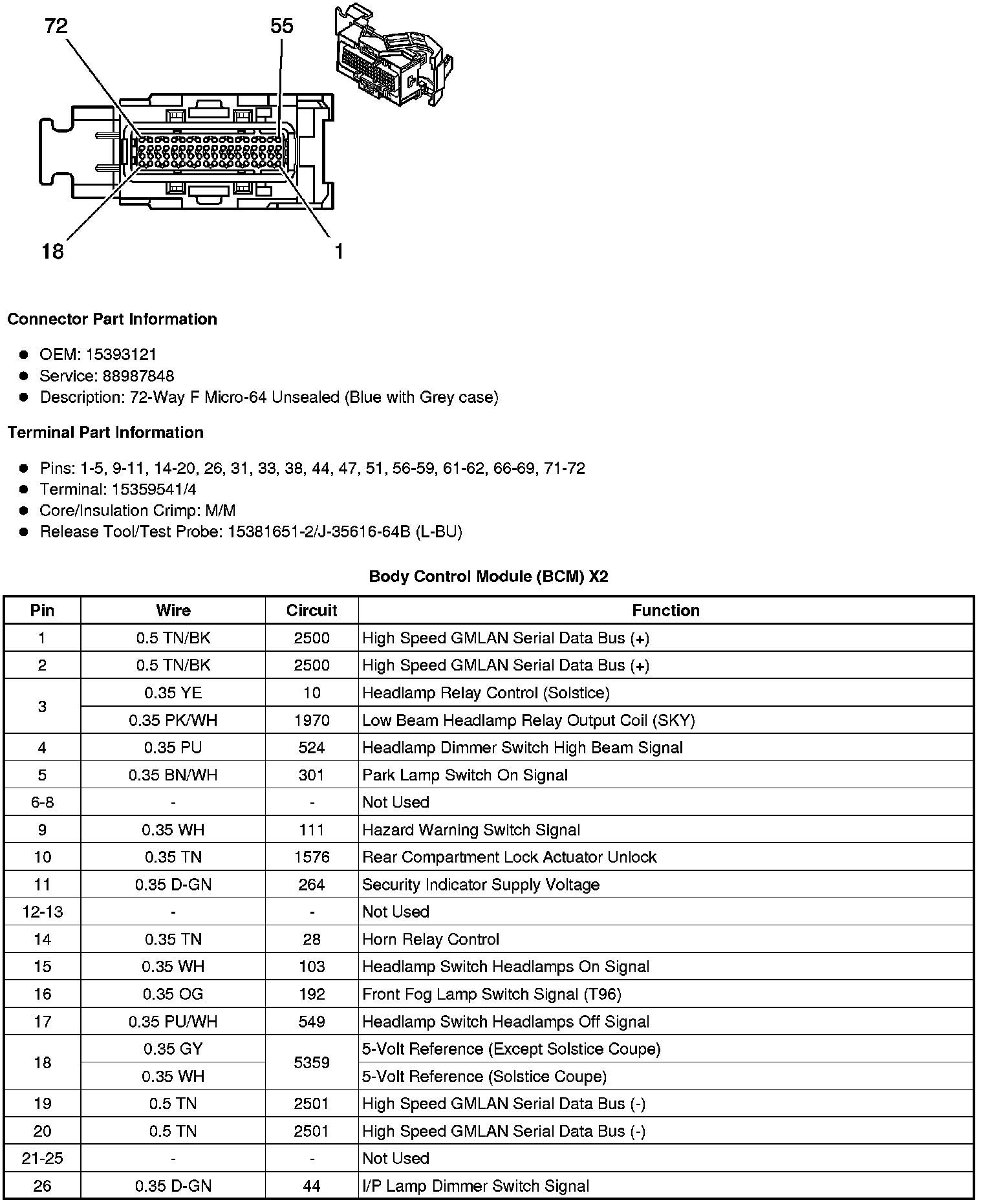

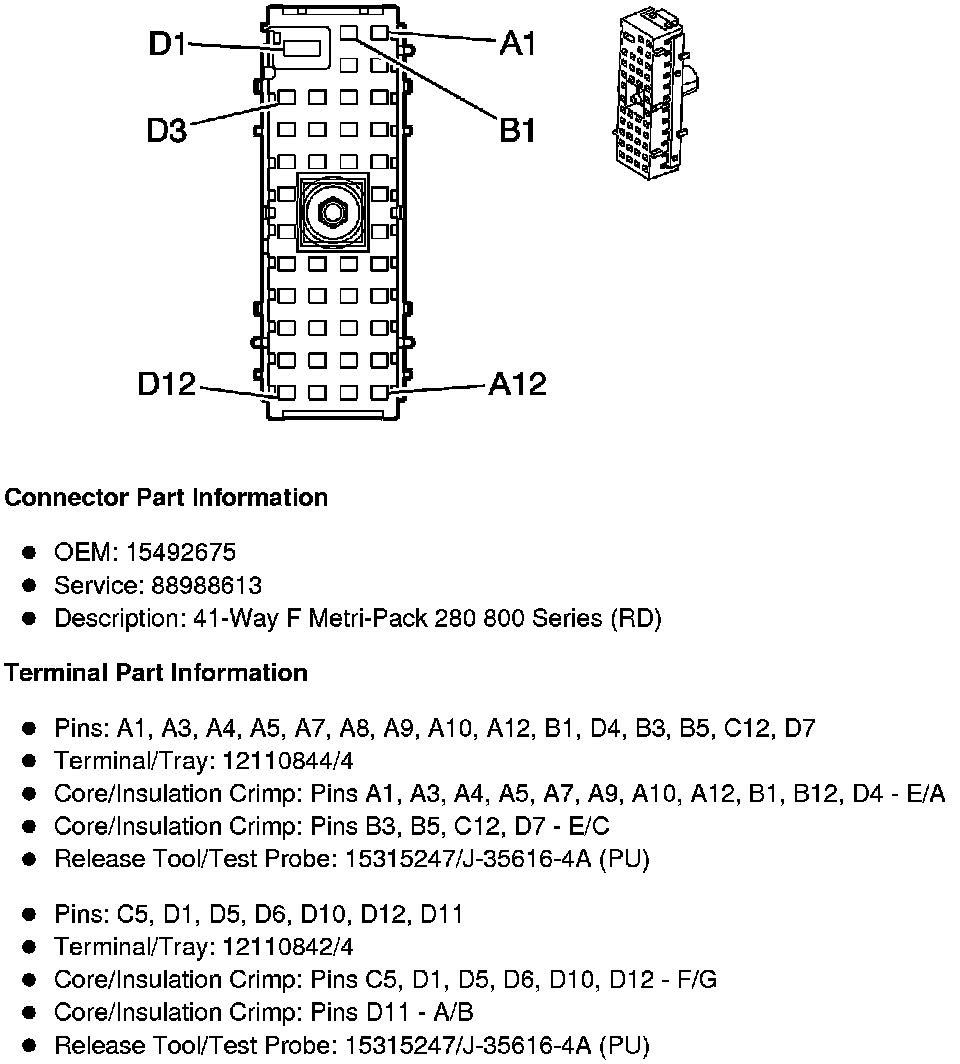

Body Control Module (BCM) X2

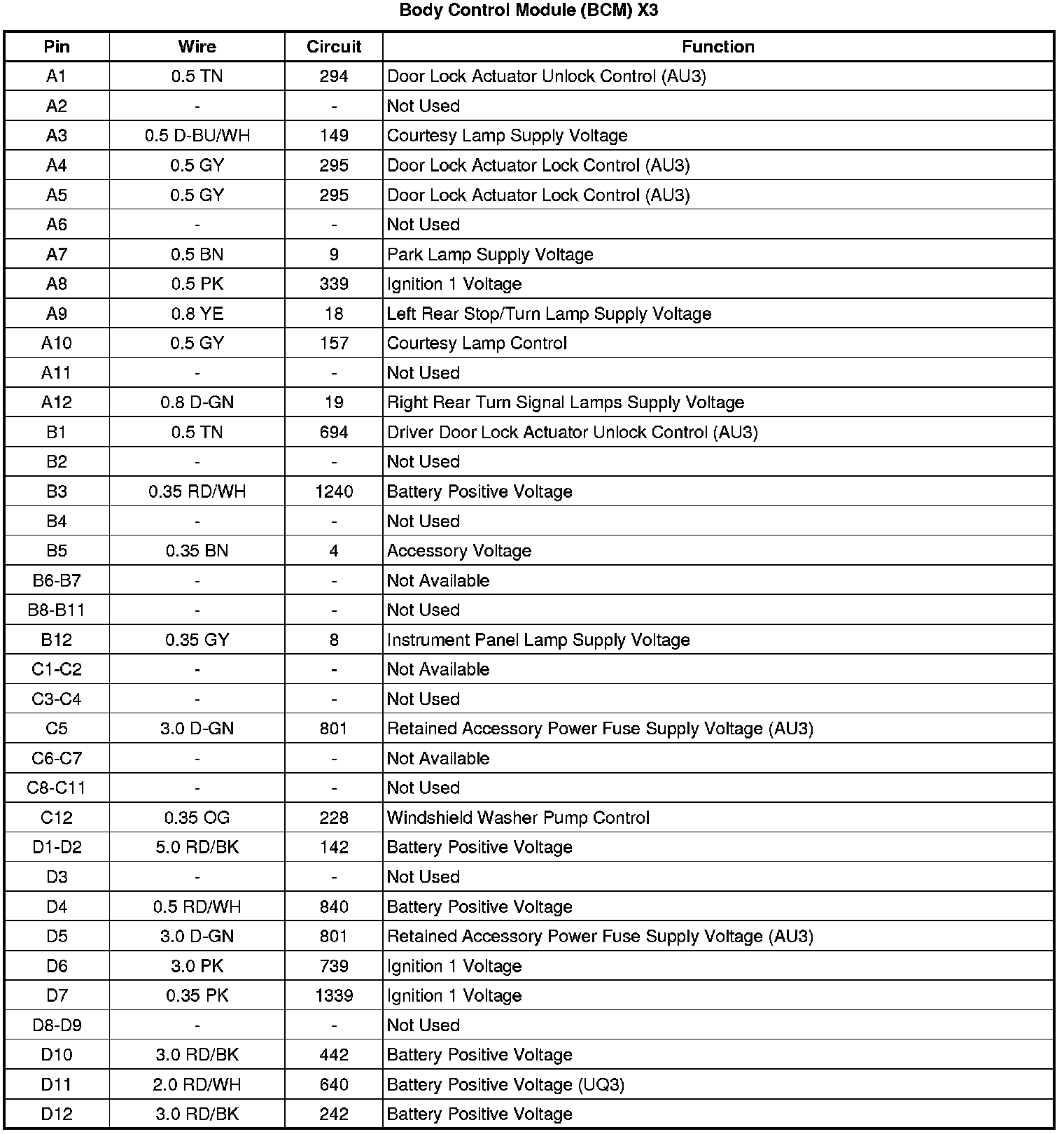

Body Control Module (BCM) X3

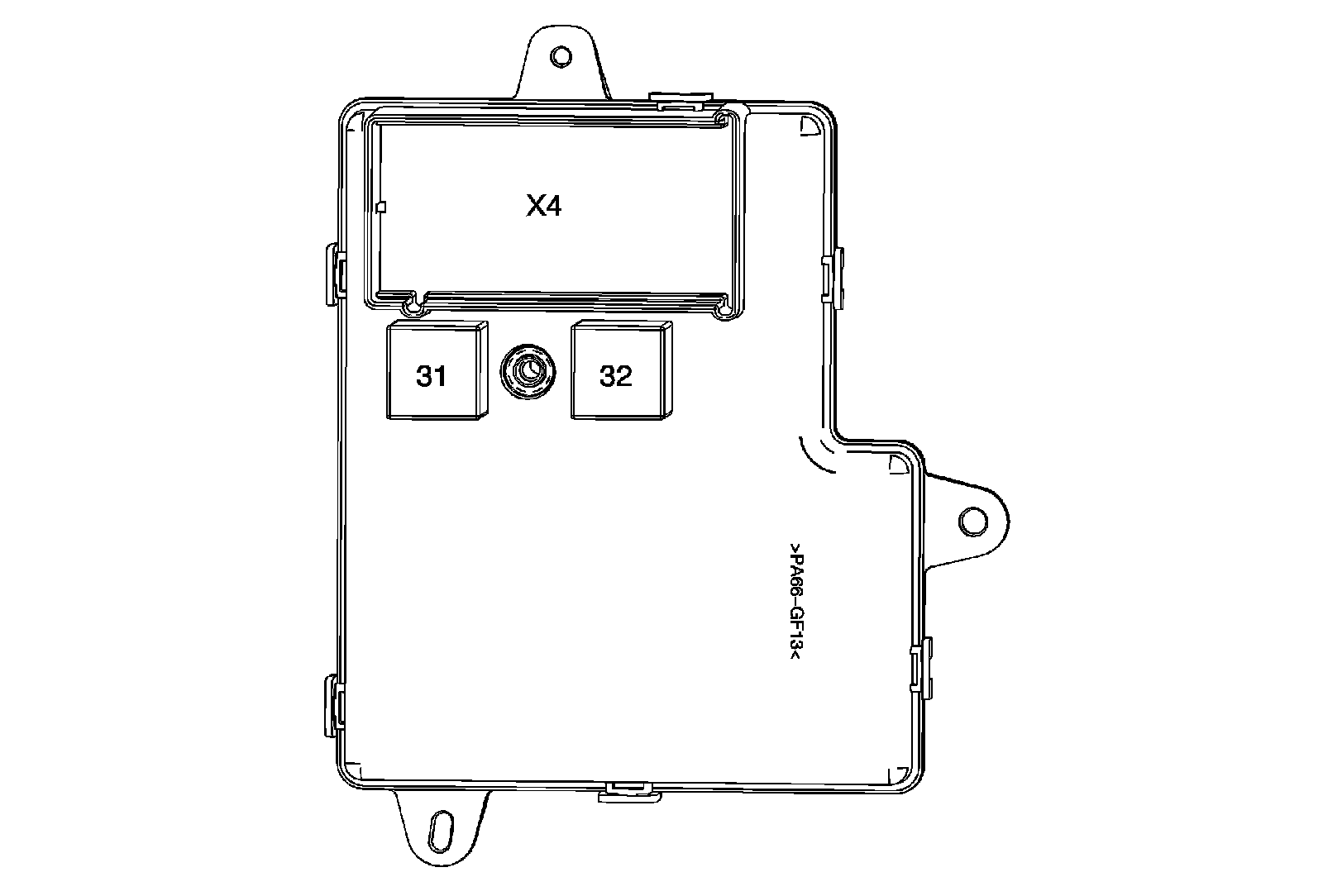

Body Control Module - Bottom View

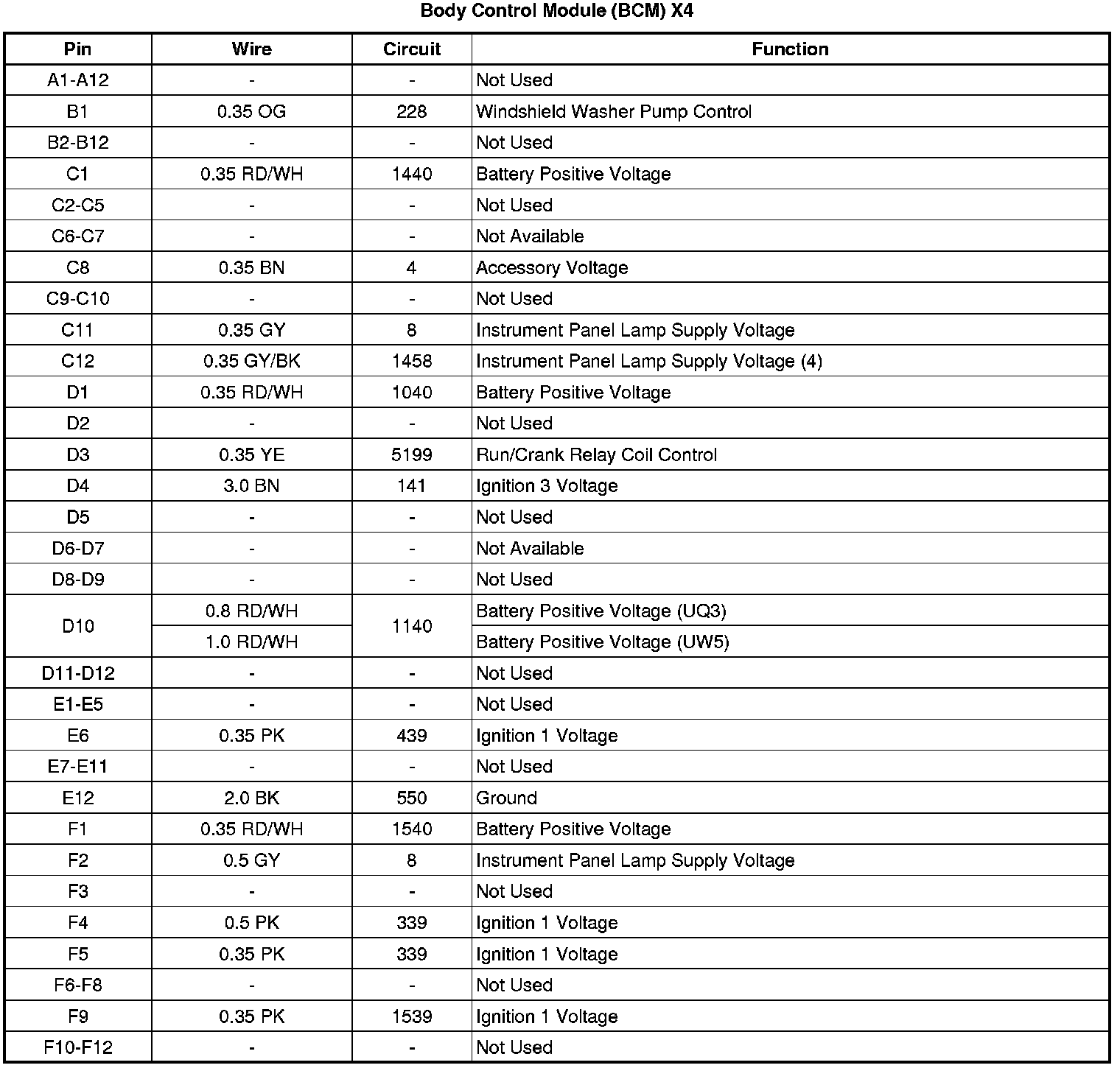

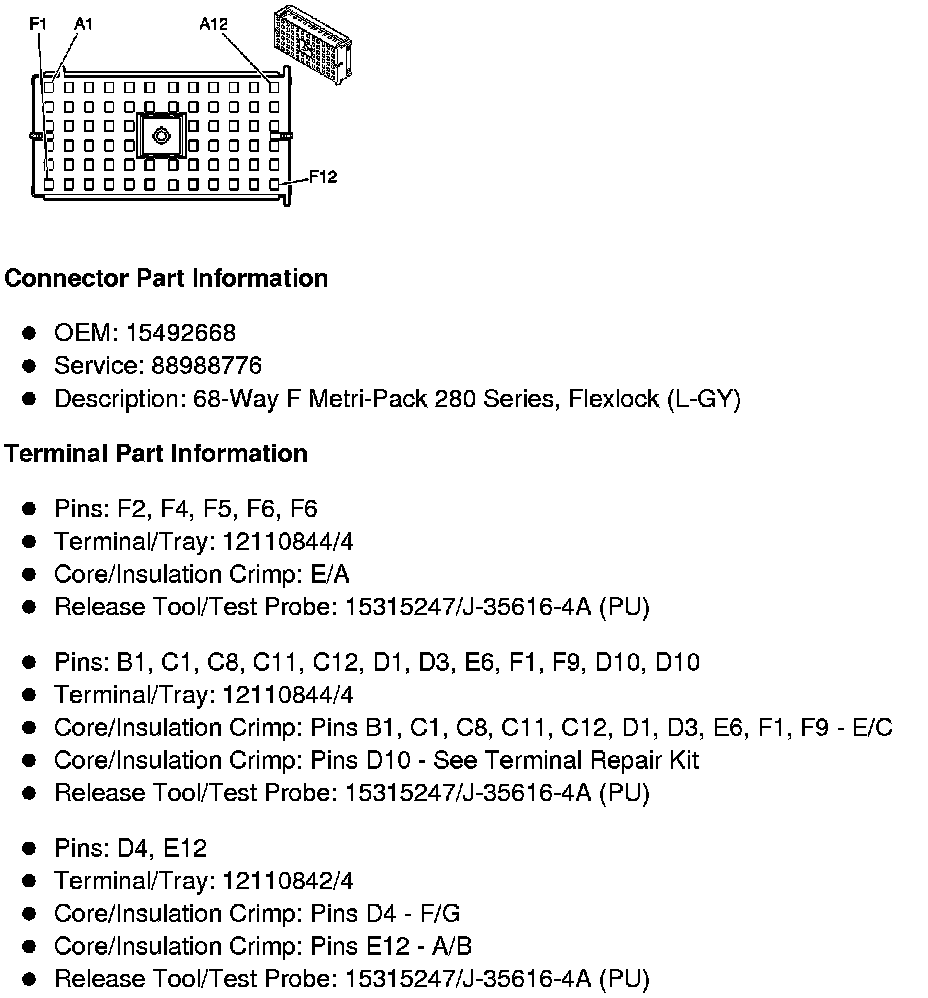

Body Control Module (BCM) X4
