Transmission Control Systems

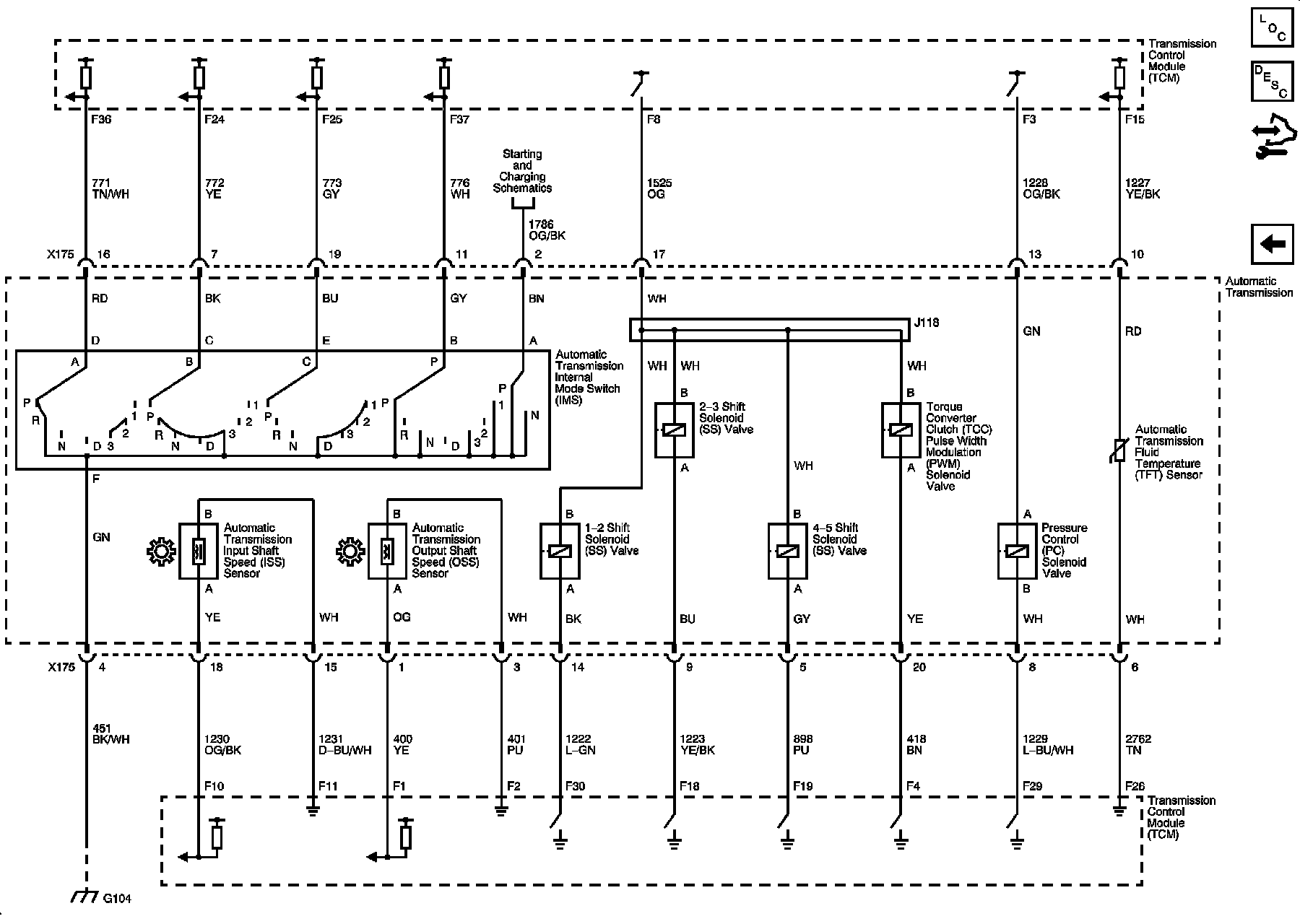

Automatic Transmission Controls Schematics

DLC, Ground, MIL, and Power





Shift Solenoids, TFT, and VSS





Electronic PRNDL
