Camshaft Position Sensor Replacement - Intake

Camshaft Position Sensor Replacement - Intake

Removal Procedure

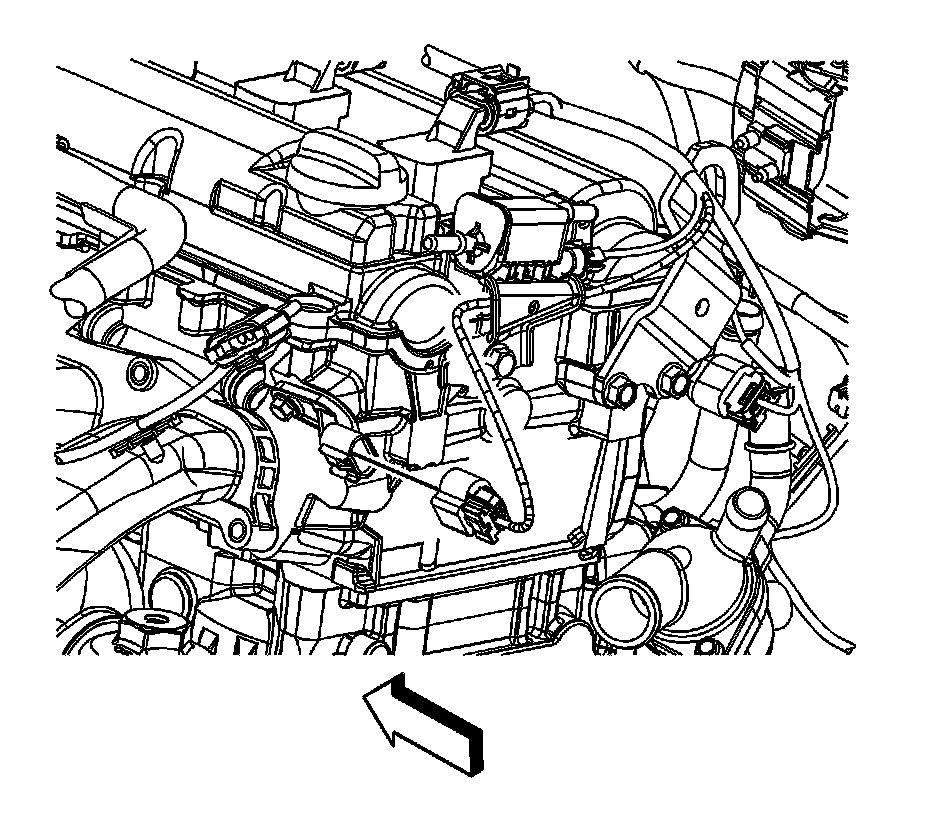

1. Disconnect the intake camshaft position (CMP) sensor electrical connector.

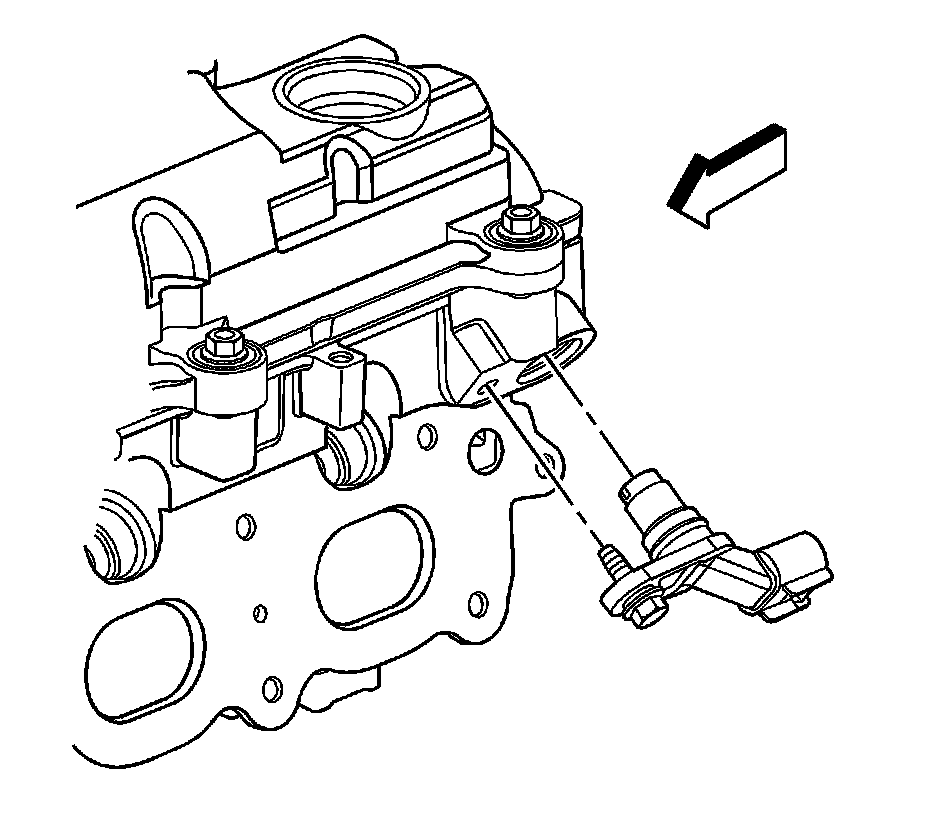

2. Remove the CMP sensor bolt.
3. Remove the CMP sensor.

Installation Procedure





Note: Inspect the CMP sensor for damage, replace as necessary.

1. Lubricate the CMP sensor O-ring seal with clean engine oil.
2. Install the CMP sensor.
Caution: Refer to Fastener Caution (Fastener Caution).

3. Install the CMP sensor bolt.

Tighten the bolt to 10 Nm (89 lb in).




4. Connect the intake CMP sensor electrical connector.
