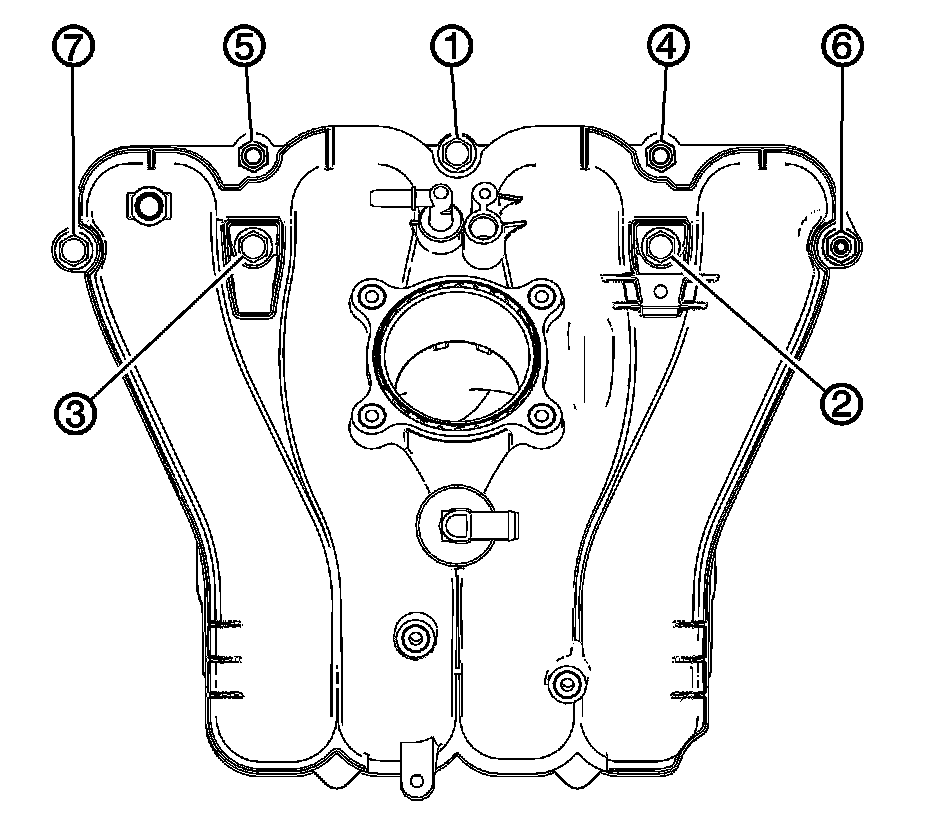

Intake Manifold





Intake Manifold to Cylinder Head Bolt 10 Nm (89 lb in)
Intake Manifold to Cylinder Head Nut 10 Nm (89 lb in)
Intake Manifold to Cylinder Head Stud 6 Nm (53 lb in)

Throttle Body Bolt 10 Nm (89 lb in)
Throttle Body Nut 10 Nm (89 lb in)
Throttle Body Stud 6 Nm (53 lb in)
