Control Module: Locations

Harness Routing Views

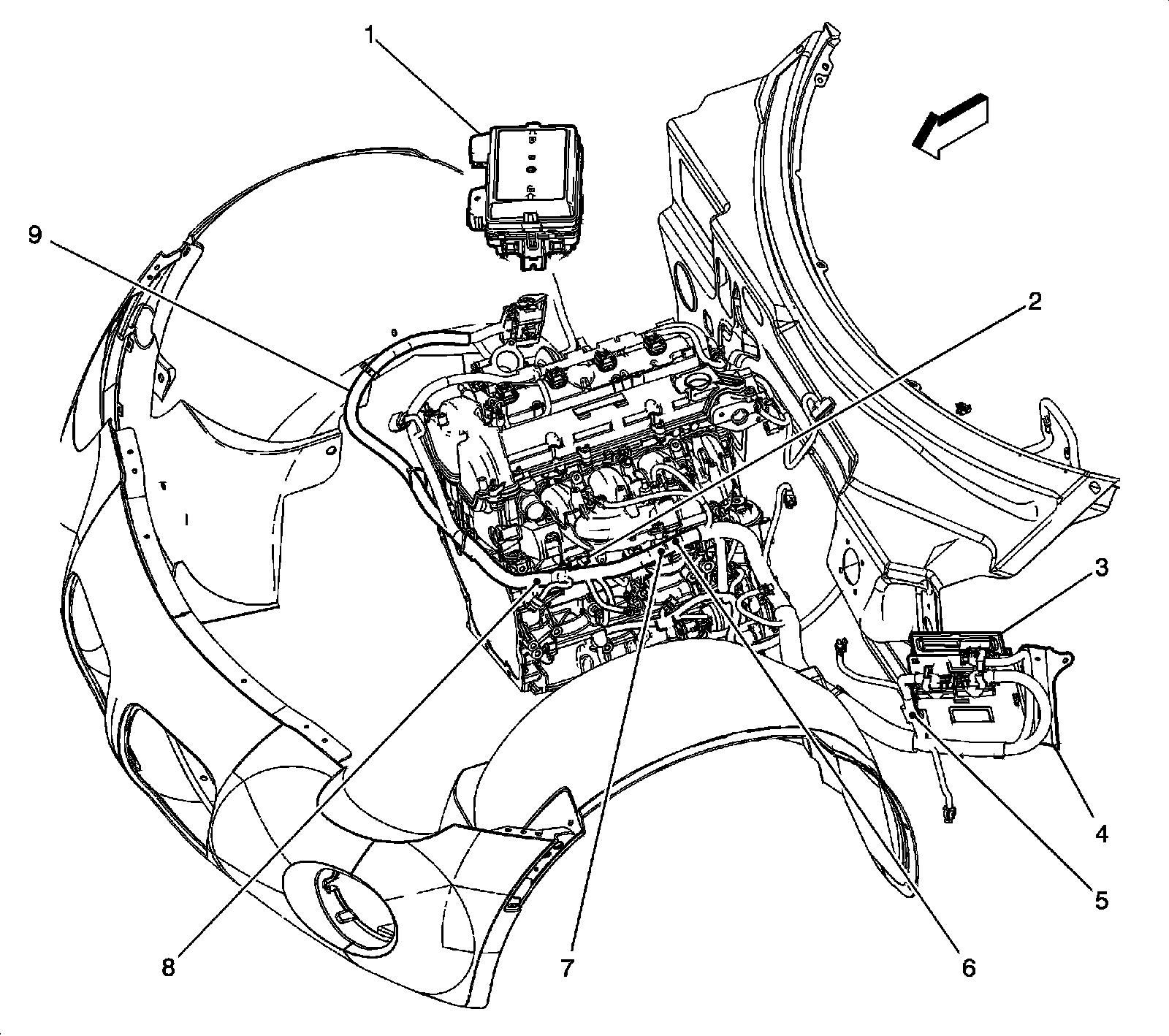

Engine Harness - Left Side (LE5)





5 - Transmission Control Module (TCM) (M82)

Engine Harness Routing Views 1 of 2 (LNF)




3 - Transmission Control Module (TCM) (M82)

Front Engine Compartment - Components




5 - Transmission Control Module (TCM) (M82)

Left Rear Of Engine Compartment




4 - Transmission Control Module (TCM) Bolt
5 - Transmission Control Module (TCM)
