Installation Procedure

If the air cleaner assembly (1) was replaced, install the MAF sensor. Refer to Mass Airflow Sensor Replacement .

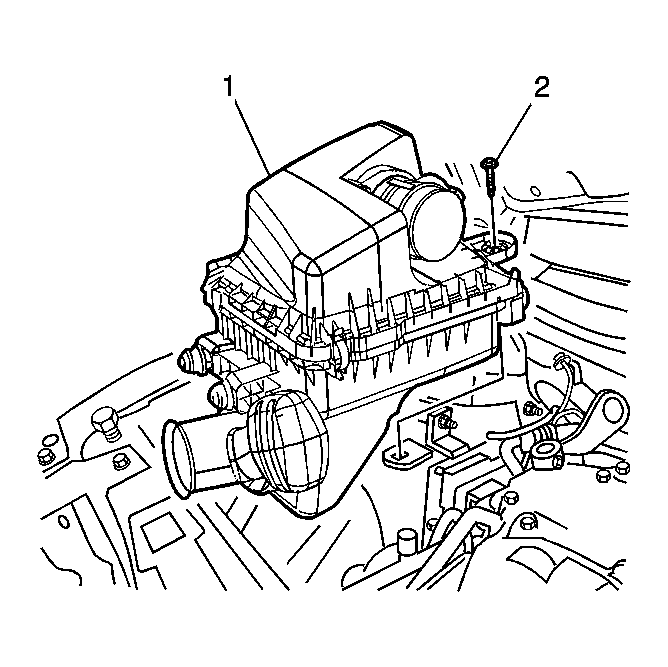

Fig 1: View Of Air Cleaner Assembly & Bolt

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner assembly (1) by inserting the two rubber alignment grommets into the radiator core support behind the right headlight.

CAUTION: Refer to Fastener Caution .

Install the air cleaner assembly attachment bolt (2).
Tighten: Tighten the bolt to 10 N.m (89 lb in).

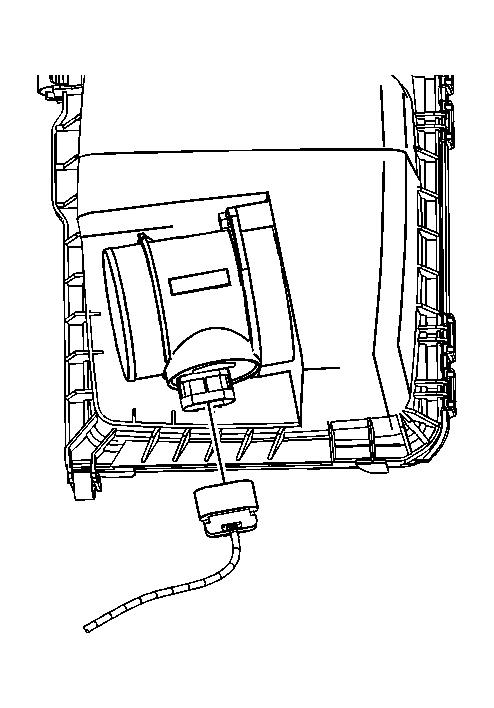

Fig 2: View Of MAF Sensor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the MAF sensor electrical connector.
Install the air cleaner intake duct. Refer to Air Cleaner Inlet Duct Replacement .
