Removal Procedure

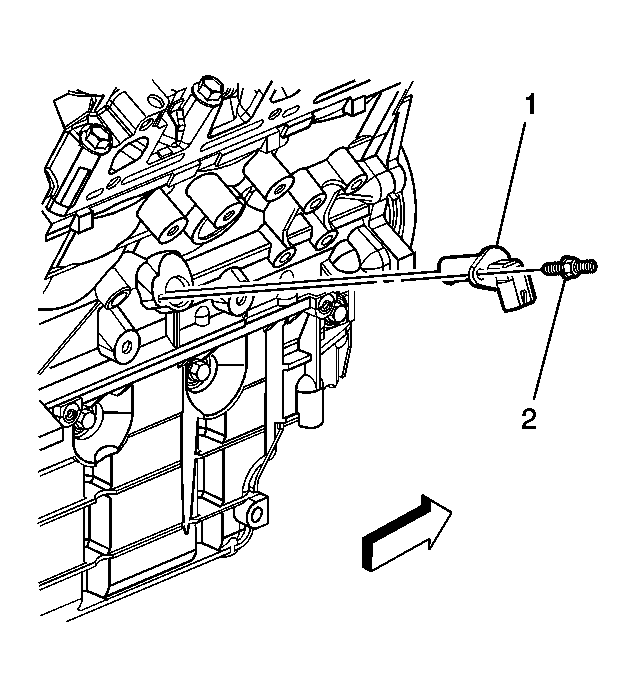

    Fig 1: View Of CKP Sensor
    GM1087795Courtesy of GENERAL MOTORS CORP.
  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the crankshaft position (CKP) sensor electrical connector.
  3. Remove the CKP sensor nut (2).
  4. Remove the CKP sensor (1) from the engine.
  5. Inspect for wear, cracks, or leakage if the CKP sensor is being reused.
