Removal Procedure

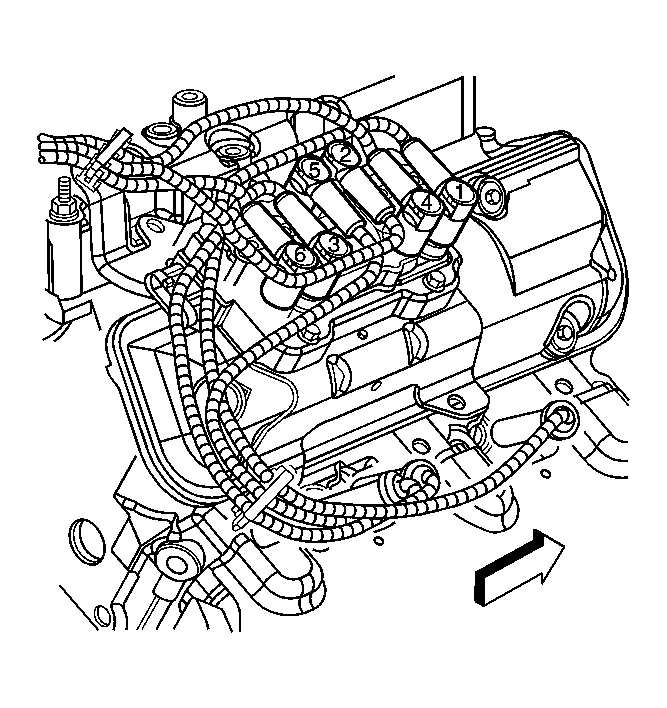

    Fig 1: View Of Ignition Coil/Control Module
    GM1422425Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  3. Disconnect the spark plug wires. Note the position from which the wires are removed.
  4. Disconnect the ignition coil/control module electrical connectors.
  5. Remove the 4 bolts securing the ignition coil/control module to the ignition control module bracket.
  6. Remove the ignition coil/control module.
