Removal Procedure

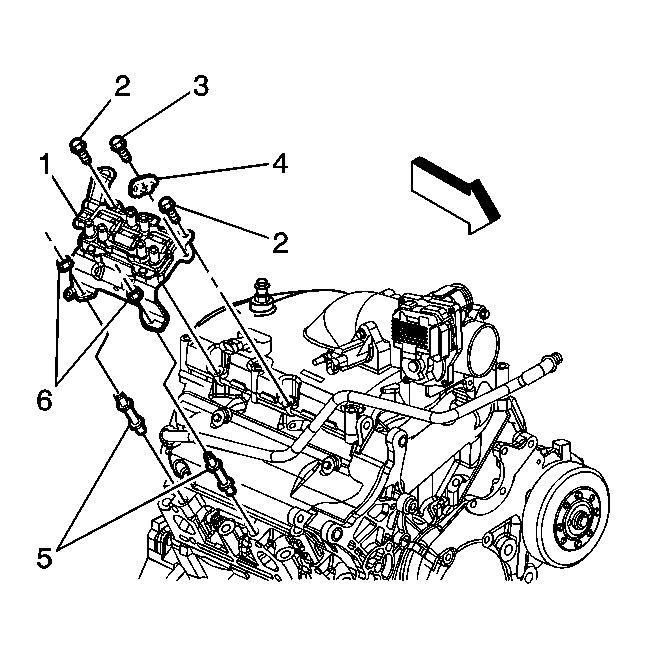

    Fig 1: View Of Ignition Control Module Bracket & Components
    GM1087898Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the negative battery cable. Refer to Lifting and Jacking the Vehicle .
  2. Remove the injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  3. Disconnect the ignition coil/control module electrical connectors.
  4. Remove the spark plug wire retainer (1) from the ignition control module bracket.
  5. Remove the 4 bolts securing the ignition coil/control module to the ignition control module bracket.
  6. Position the ignition coil/control module aside out of the way.
  7. Remove the bolt (3) from the fuel injector wire harness bracket (4) and positive crankcase ventilation (PCV) valve fresh air tube retainer.
  8. Remove the engine wire harness retainers from the ignition control module bracket studs (5).

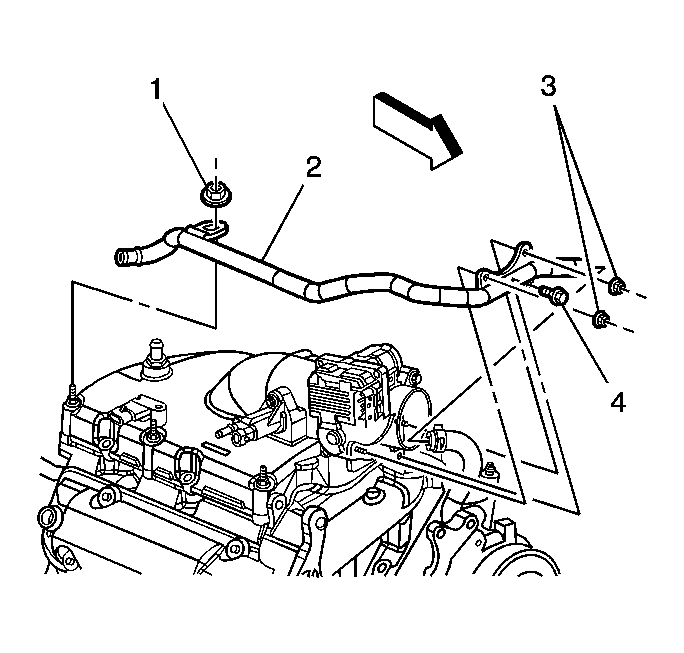

    9. Fig 2: View Of Heater Outlet Pipe, Nuts & Bolts
    GM1087631Courtesy of GENERAL MOTORS CORP.
  9. Remove the nut (1) retaining the heater outlet pipe.
  10. Lift pipe up slightly to gain access for the removal of the 2 ignition control module bracket bolts.
    11. Fig 3: View Of Ignition Control Module Bracket & Components
    GM1087898Courtesy of GENERAL MOTORS CORP.
  11. Remove the ignition control module bracket bolts (2).
  12. Remove the ignition control module bracket nuts (6).
  13. Remove the ignition control module bracket.
