Removal Procedure

  1. Disconnect the manifold absolute pressure (MAP) sensor electrical connector.

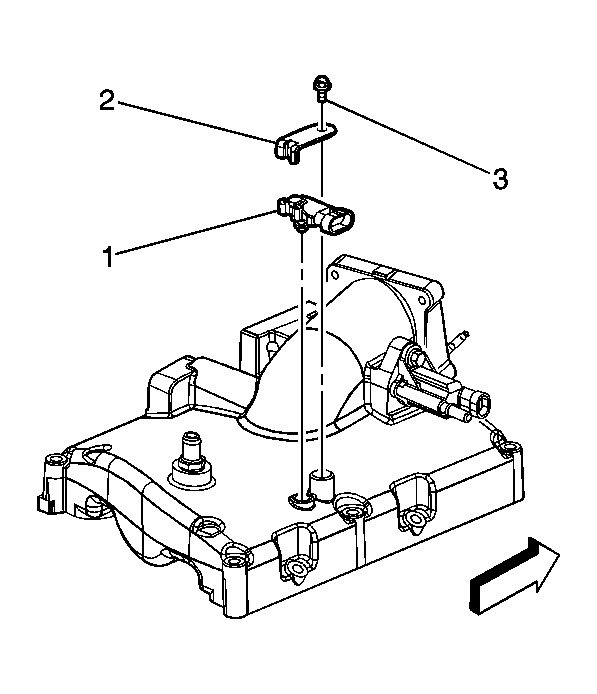

    2. Fig 1: View Of MAP Sensor, Bracket & Retaining Bolt
    GM1087786Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAP sensor retaining bolt (3) and bracket (2).
  3. Remove the MAP sensor (1) and the MAP sensor port seal if it is still retained in the intake manifold.
