Removal Procedure

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire assembly. Refer to Tire and Wheel Removal and Installation .

Fig 1: View Of Tie Rod End To Steering Knuckle

Courtesy of GENERAL MOTORS CORP.

Remove the outer tie rod. Refer to Steering Linkage Outer Tie Rod Replacement .
Remove the jam nut.

Fig 2: View Of Spring, Boot, Outer End & Steering Gear

Courtesy of GENERAL MOTORS CORP.

Remove the spring from the boot, outer end.
Cut and remove the crimp clamp, inner end. Discard the clamp.

IMPORTANT: After removing the boot, inspect the inner tie rod for evidence of corrosion or contamination. If none is evident, continue with the repair. If corrosion or contamination is evident, replace the steering gear.

Unseat the boot from the steering gear and remove.

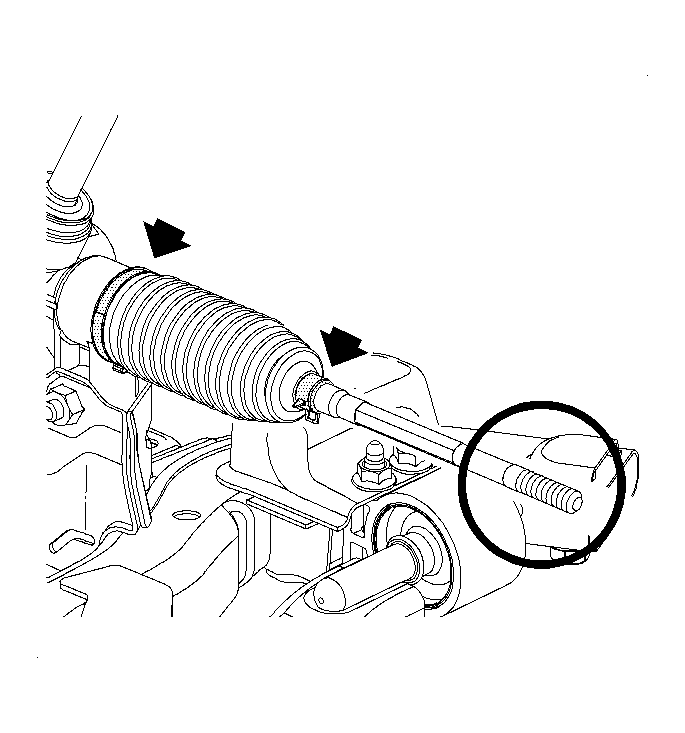

Fig 3: View Of Inner Tie Rod & Boot

Courtesy of GENERAL MOTORS CORP.

Clean the inner tie rod and boot contact area of grease and debris.
