Rear Toe Adjustment

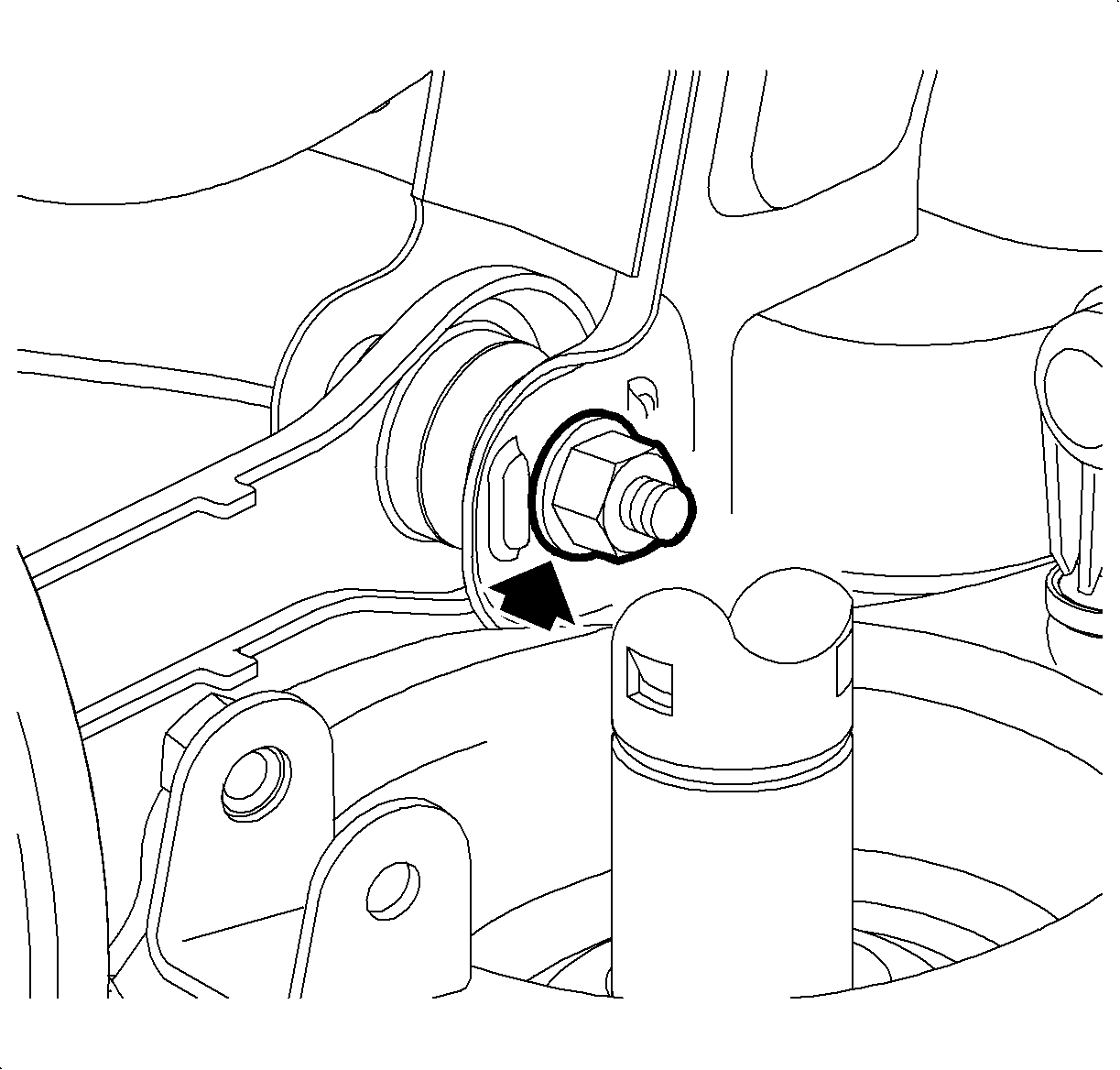

- Loosen the suspension adjustment link-to-frame fastener enough to allow for movement.
- Rotate the suspension adjustment nut in the direction necessary to correct the toe angle.
- Snug the suspension adjustment link-to-frame fastener, do not tighten at this time.
- Reinspect the rear toe specifications and adjust as necessary.
- Hold the nut and tighten the link-to-frame fastener bolt to 164 N.m (121 lb ft).
- Repeat the procedure for the other rear wheel.
NOTE:
If experiencing problems in adjusting the rear toe, replace the existing nut with the service cam nut to eliminate the adjustment problem.
CAUTION:
Refer to Fastener Caution
.
