Removal Procedure

IMPORTANT: If data is not retrieved from the malfunctioning body control module (BCM), additional time will be required to program the replacement BCM.

Retrieve data from the malfunctioning BCM. Refer to Control Module References .
Rotate the ignition switch to the OFF position.

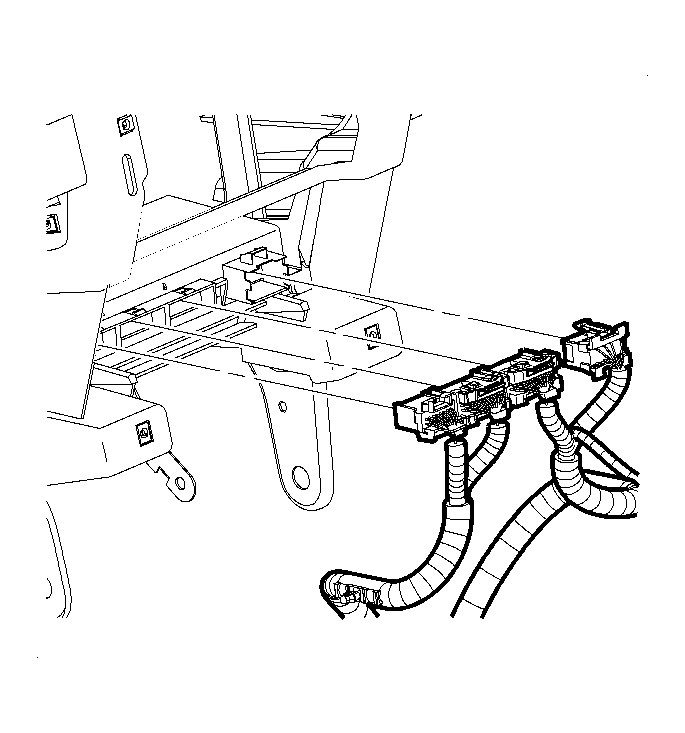

Fig 1: View Of Radio Bezel & Harness

Courtesy of GENERAL MOTORS CORP.

Remove the radio bezel. Refer to Radio Replacement .
Disconnect the BCM electrical harnesses.
Remove the BCM from the instrument panel (I/P) retainer:
1. Pry the BCM tabs from the locking tabs on the underside of the restraint.
2. Slide the BCM out of the retainer.
