Secondary Fuel Tank Module

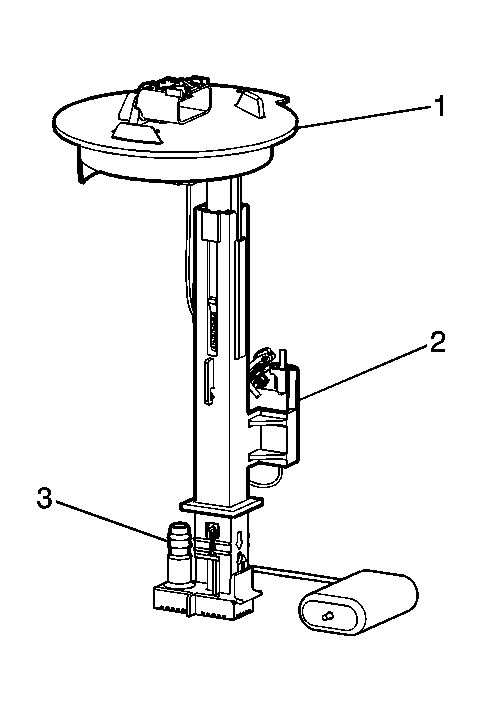

Fig 1: View Of Secondary Fuel Tank Module

Courtesy of GENERAL MOTORS CORP.

The secondary fuel tank module is located inside of the left side of the fuel tank. The secondary fuel tank module consists of the following major components:

• The fuel level sensor (1)
• The fuel pick-up (2)
