Installation Procedure

  1. If the fuel level sending unit is being replaced, install the fuel level sending unit into the new fuel pump. Refer to Secondary Fuel Level Sensor Replacement .

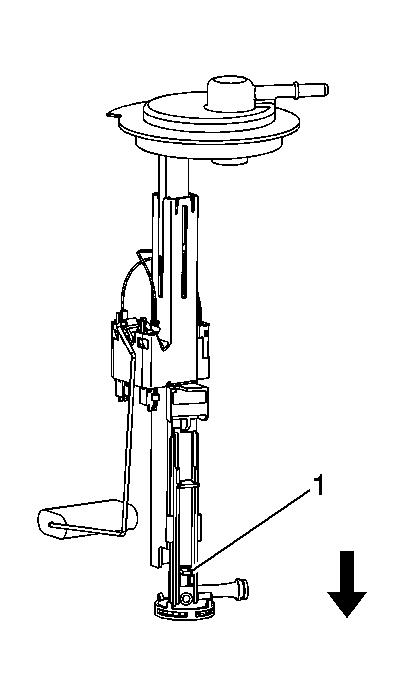

    2. Fig 1: View Of Suction Port
    GM1346873Courtesy of GENERAL MOTORS CORP.
  2. Connect the suction port (1).
  3. Connect the secondary level sensor electrical connector.
    4. Fig 2: View Of Fuel Tank Module
    GM1226439Courtesy of GENERAL MOTORS CORP.
  4. Insert the new secondary fuel pump module with the level sender and new fuel pump-to-tank seal. Ensure the orientation tabs are aligned.
  5. Use the J39765-A  to install the fuel pump lock ring.
  6. Connect the EVAP line quick connect.
  7. Install the fuel tank. Refer to Fuel Tank Replacement (AWD)  or Fuel Tank Replacement (FWD) .
