Installation Procedure

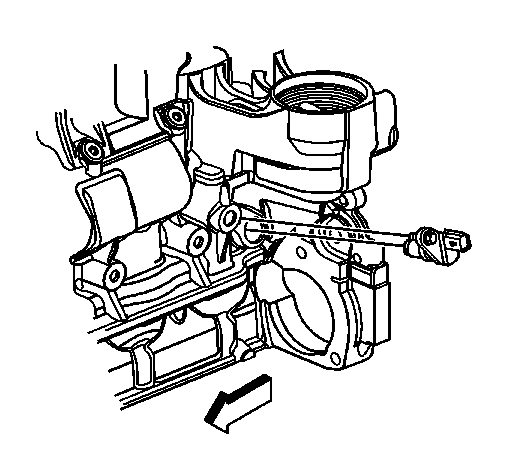

    Fig 1: Identifying CKP Sensor
    GM1578475Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the CKP sensor O-ring seal with clean engine oil.
  2. Install the CKP sensor.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the CKP sensor bolt and tighten to 10 N.m (89 lb in).

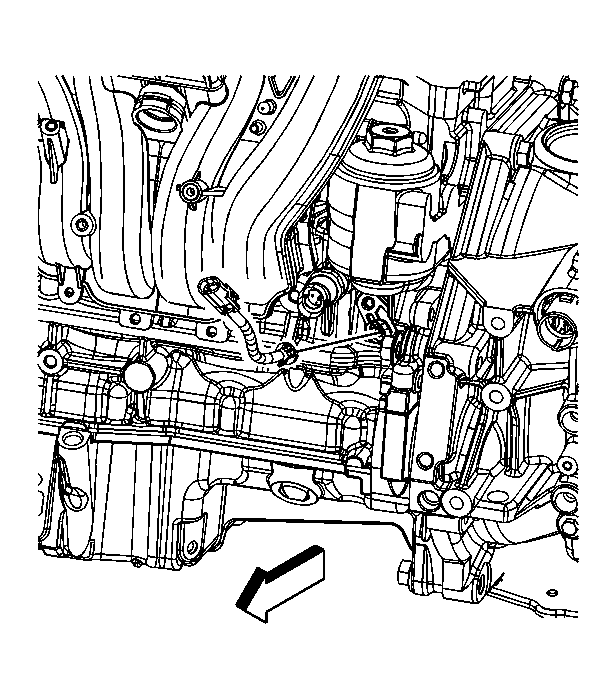

    4. Fig 2: View Of CKP Sensor Wiring Harness Electrical Connector And CKP Sensor
    GM1656996Courtesy of GENERAL MOTORS CORP.
  4. Connect the CKP sensor wiring harness electrical connector to the CKP sensor.
  5. Install the starter. Refer to Starter Replacement .
