Installation Procedure

NOTE: Rotate the pigtail 90 degrees from vertical before securing the fastener.

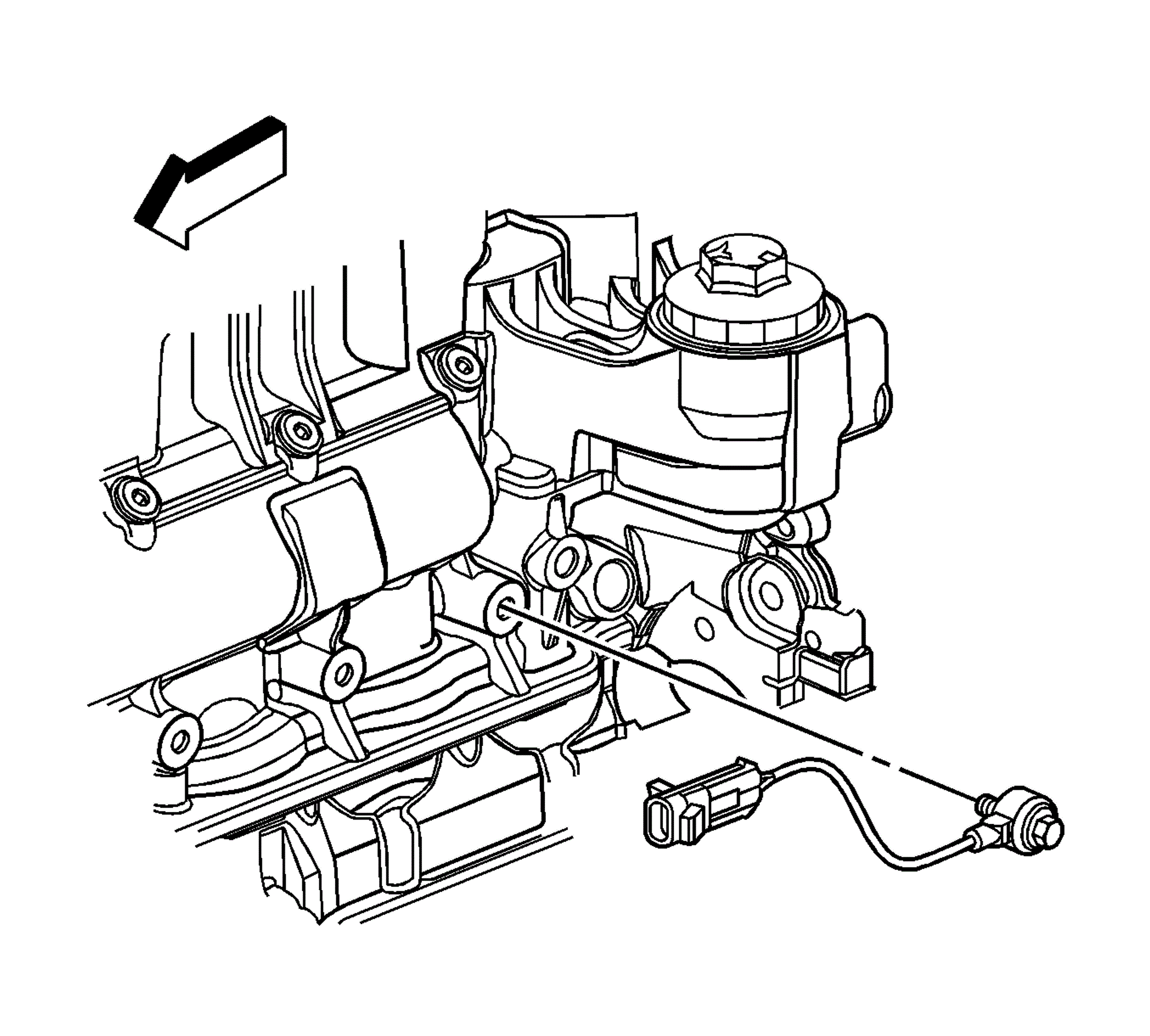

    Fig 1: Identifying Knock Sensor
    GM1578476Courtesy of GENERAL MOTORS CORP.
  1. Install the KS.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the KS bolt and tighten to 25 N.m (18 lb ft).

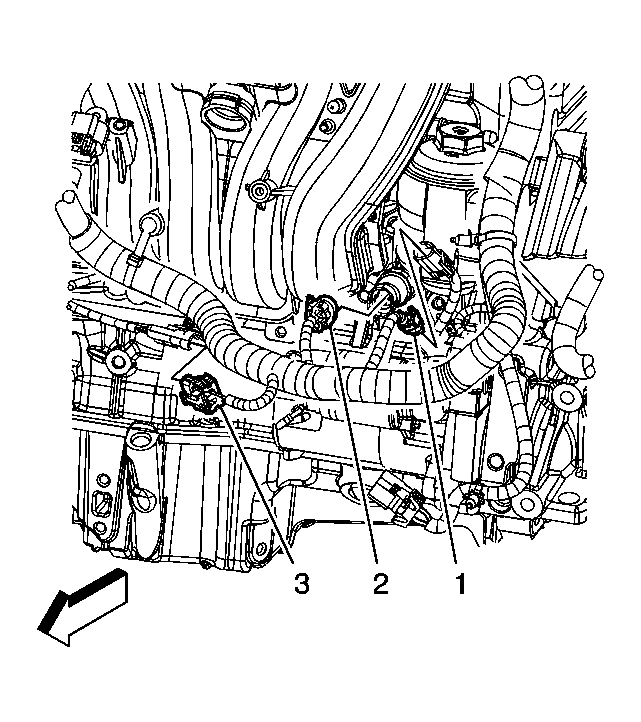

    3. Fig 2: View Of Knock Sensor (KS) Electrical Connector
    GM1656089Courtesy of GENERAL MOTORS CORP.
  3. Connect the KS electrical connector (3).
