Removal Procedure

    Fig 1: View Of Engine Harness Electrical Connector To MAF/IAT Sensor
    GM1647998Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine harness electrical connector from the mass air flow (MAF)/intake air temperature (IAT) sensor.

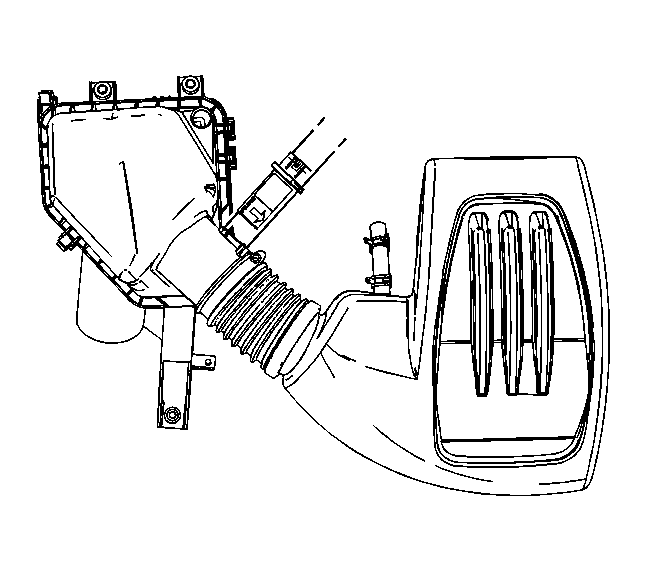

    2. Fig 2: View Of MAF/IAT Sensor
    GM1656943Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAF/IAT sensor screws.
  3. Remove the MAF/IAT sensor.
