Secondary Air Injection Pipe Replacement

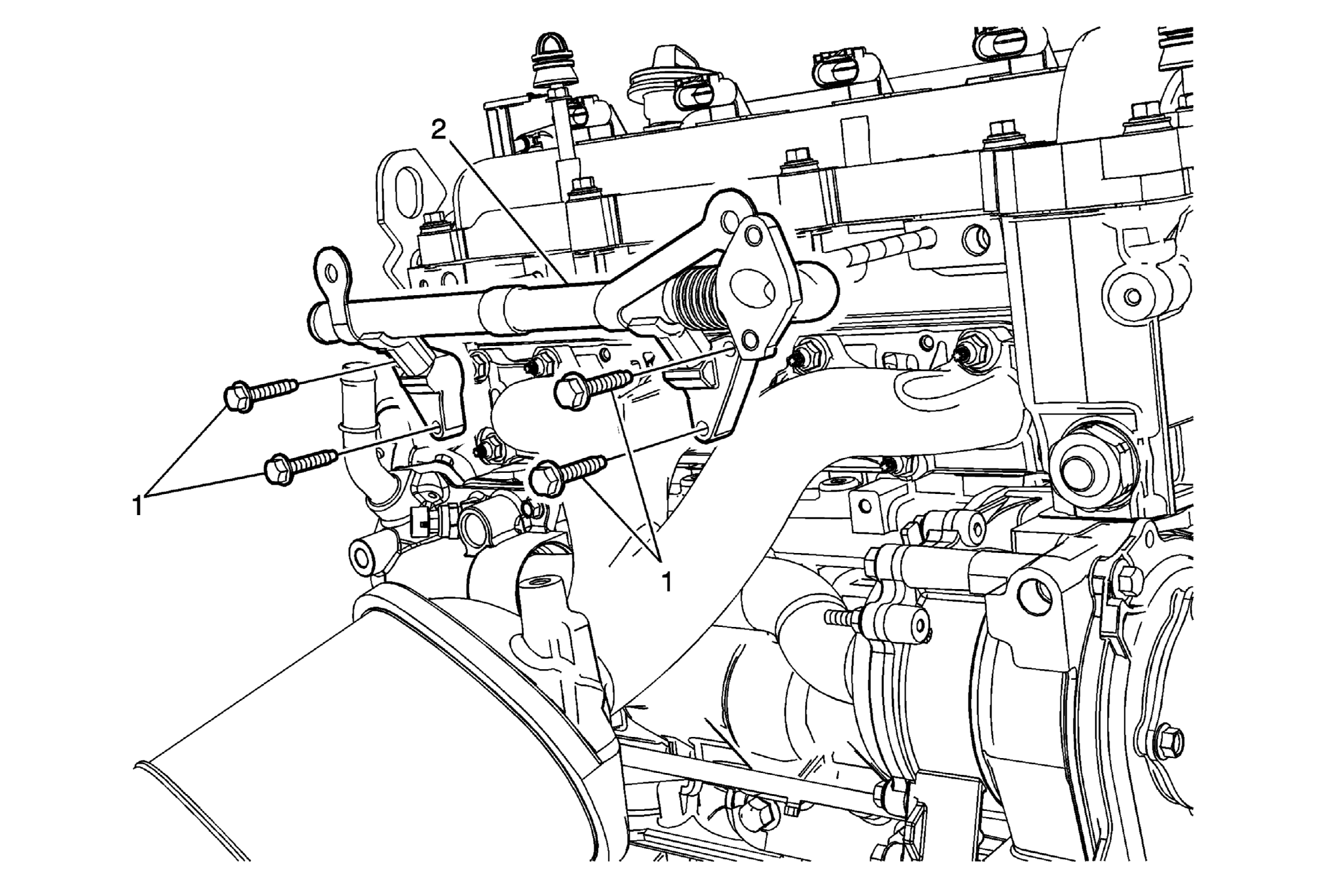

Fig 1: Identifying Secondary Air Injection Pipe Replacement & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the secondary air injection check valve. Refer to Secondary Air Injection Check Valve Pipe Replacement
1	Secondary Air Injection Pipe Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m(89 lb in).
2	Secondary Air Injection Pipe
