Installation Procedure

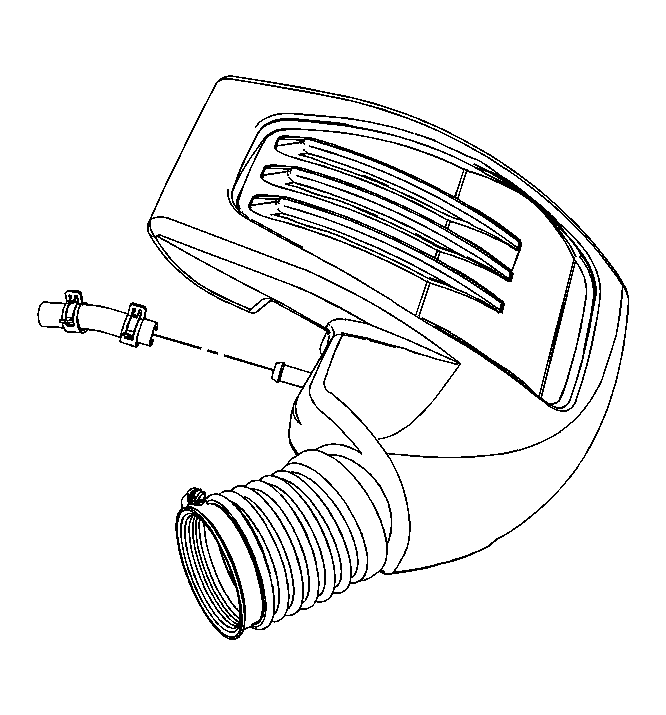

    Fig 1: View Of PCV Hose From Outlet Duct
    GM1656106Courtesy of GENERAL MOTORS CORP.
  1. If necessary, install the PCV hose to the outlet duct.
  2. If necessary, position the PCV hose clamp at the outlet duct.

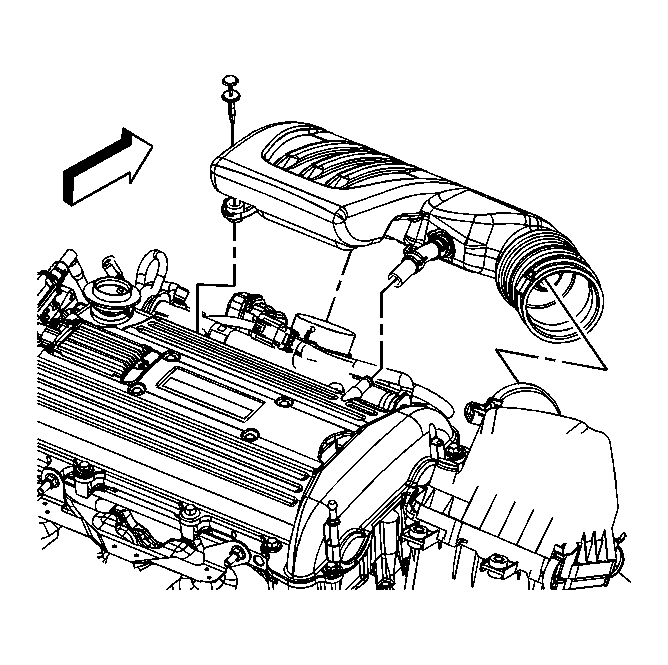

    3. Fig 2: View Of Air Cleaner Outlet Duct
    GM1657019Courtesy of GENERAL MOTORS CORP.
  3. Install the air cleaner outlet duct to the throttle body and air cleaner housing.
    4. CAUTION: Refer to Fastener Caution .
  4. Tighten the clamps at the air cleaner housing and throttle body to 5 N.m (44 lb in).
  5. Install the push pin retainer.
  6. Install the PCV hose to the camshaft cover.
  7. Position the PCV hose clamp at the camshaft cover.
  8. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
