Air Cleaner Assembly Replacement

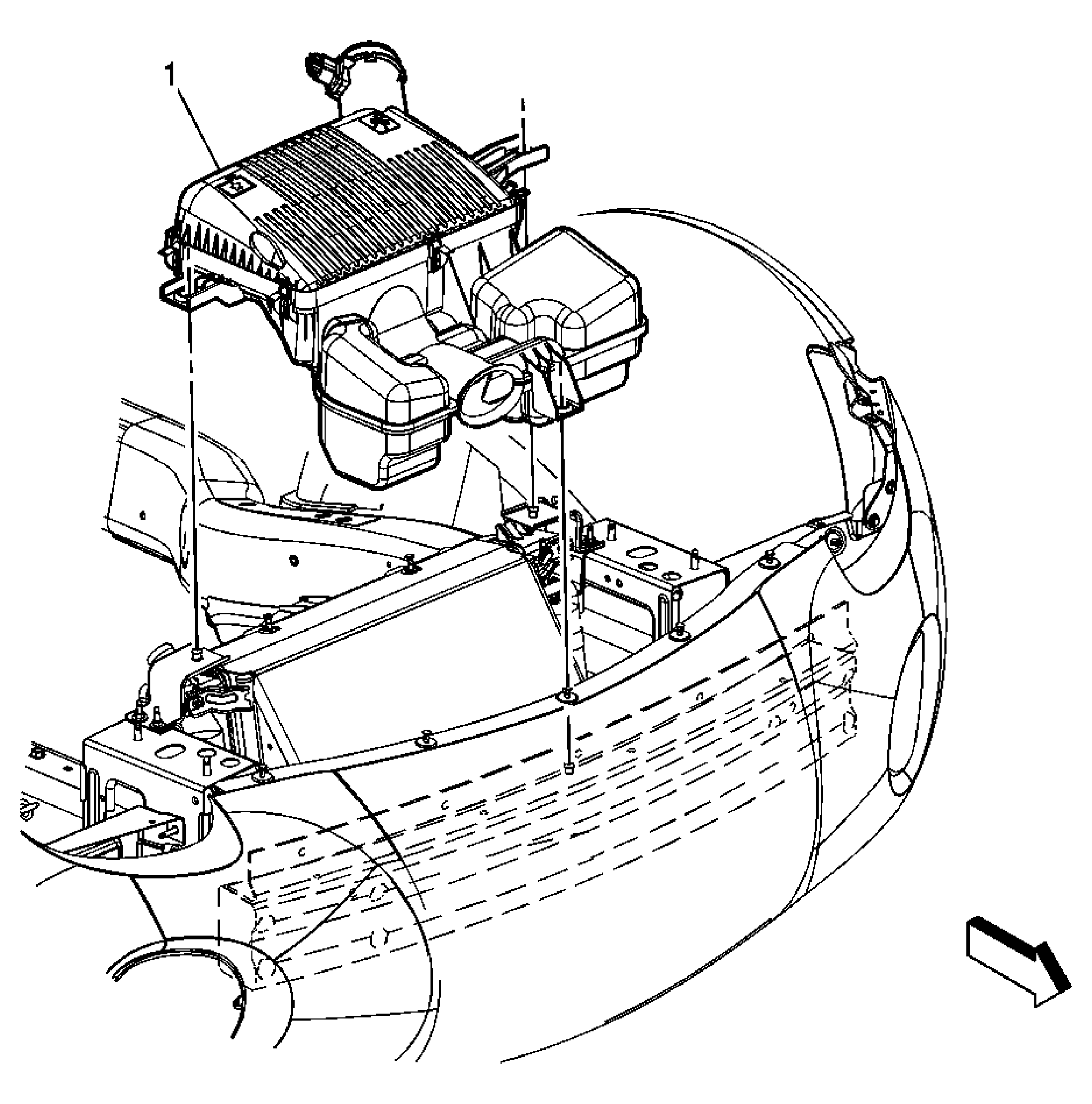

Fig 1: Identifying Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the air cleaner outlet resonator duct. Refer to Air Cleaner Outlet Resonator Replacement . Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector. CAUTION: Refer to Fastener Caution . Remove the air cleaner front bolt or nut. Tighten: 10 N.m (89 lb in)
1	Air Cleaner Assembly Tip: Firmly tug on the air cleaner in order to disengage the air cleaner from the studs.

Callout

Component Name

Preliminary Procedures

Remove the air cleaner outlet resonator duct. Refer to Air Cleaner Outlet Resonator Replacement .
Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector.

CAUTION: Refer to Fastener Caution .

Air Cleaner Assembly
Tip: Firmly tug on the air cleaner in order to disengage the air cleaner from the studs.
