All Models (Front)

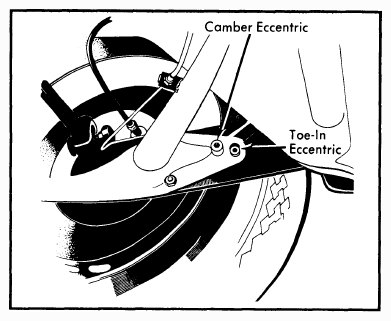

If camber angle is not to specifications, it will be necessary to move adjuster plate which attaches to front shock absorber. Remove enough front compartment carpet to allow access to top of each shock absorber. Mark position of each movable plate, located below each Allen screw. Loosen each screw and upper shock absorber nut. Move assembly from side to side to obtain correct camber angle. Tighten all three screws and shock absorber nut.
NOTE:
Movement of adjuster plates in lengthwise direction will affect caster angle.
