Description & Operation: 911SC

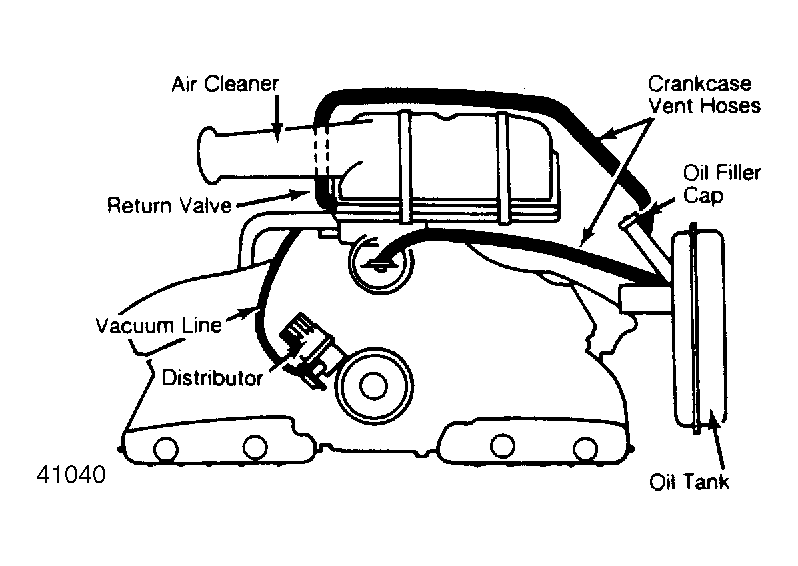

Components of system include a connecting hose located between crankcase and oil tank, and a second hose connecting oil tank to return valve at air cleaner. Vapors and blow-by gases from crankcase are taken into oil tank, where excess oil is separated from gases. The gases are then drawn into intake chamber through a hose that has a metered orifice and flame arrestor.
