Ignition Control Signal Test

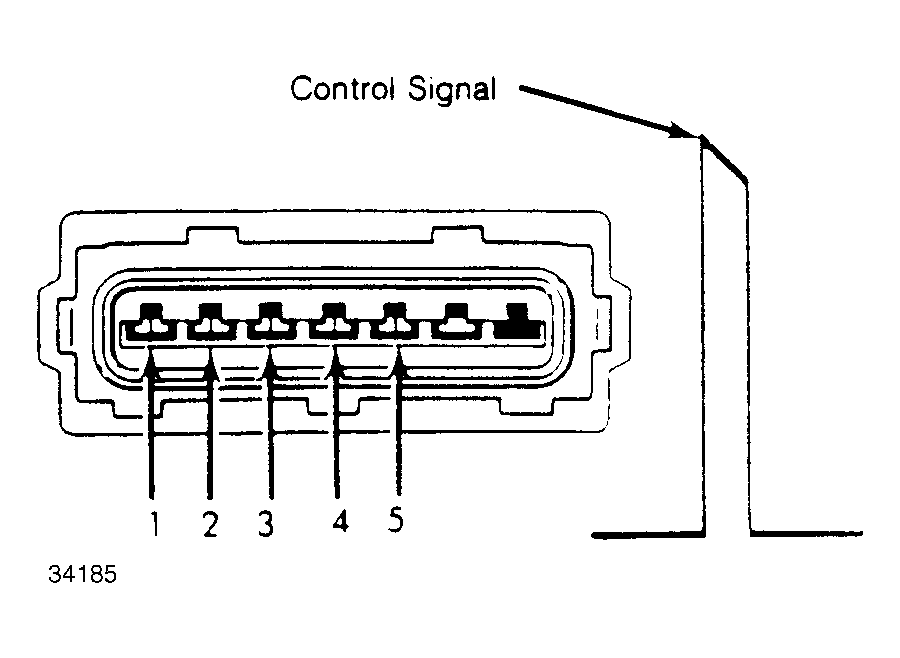

Disconnect trigger boxes. Connect oscilloscope positive test lead to terminal No. 5 and negative lead to terminal No. 2 of trigger box connector. See Fig 1. Crank engine. Oscilloscope must display a control signal at both trigger boxes.
