Fuel Injection System - BOSCH LH: Wiring Diagram

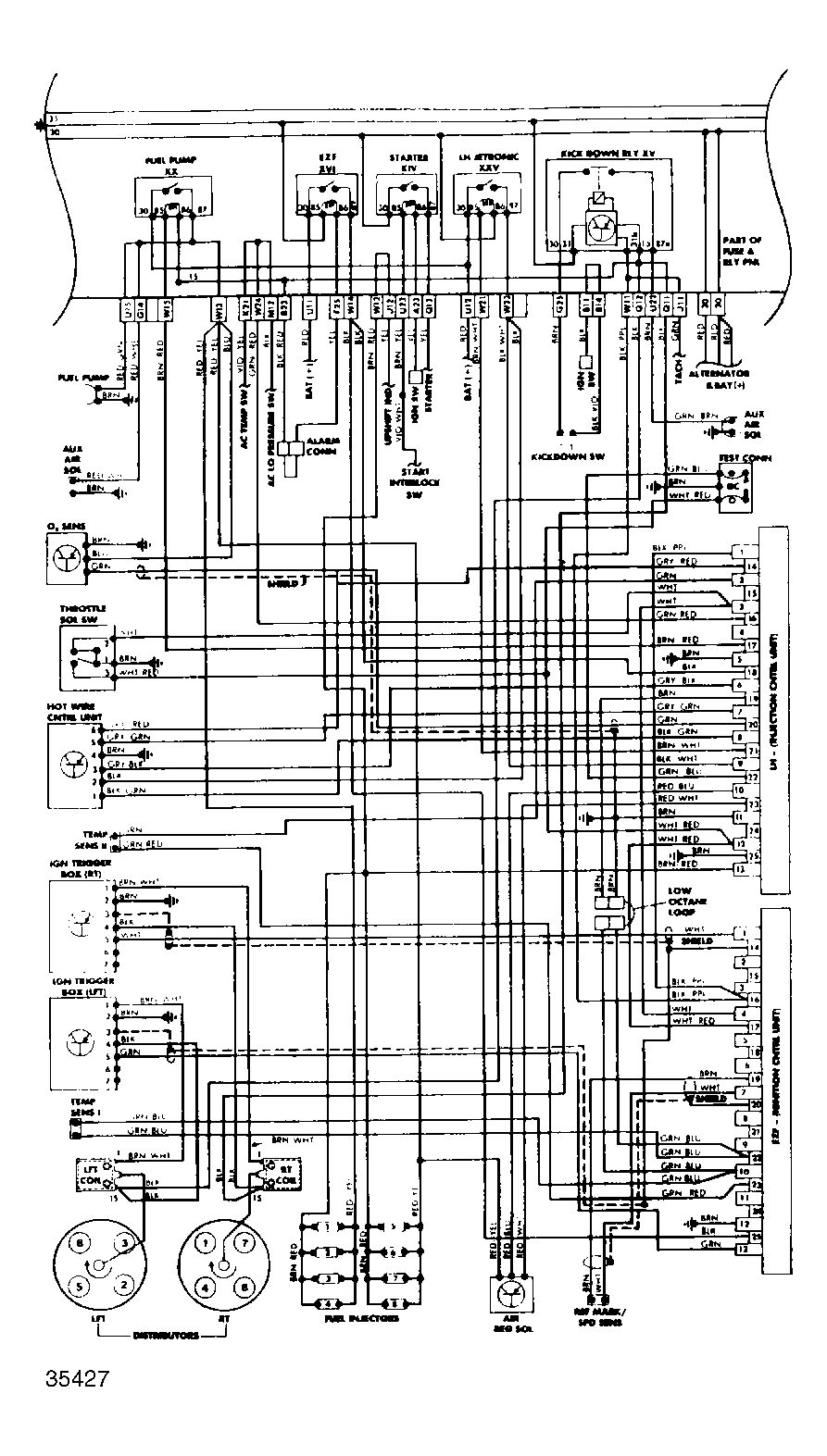

Fig 1: Porsche 928s Injection Wiring Diagram

G35427
