Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

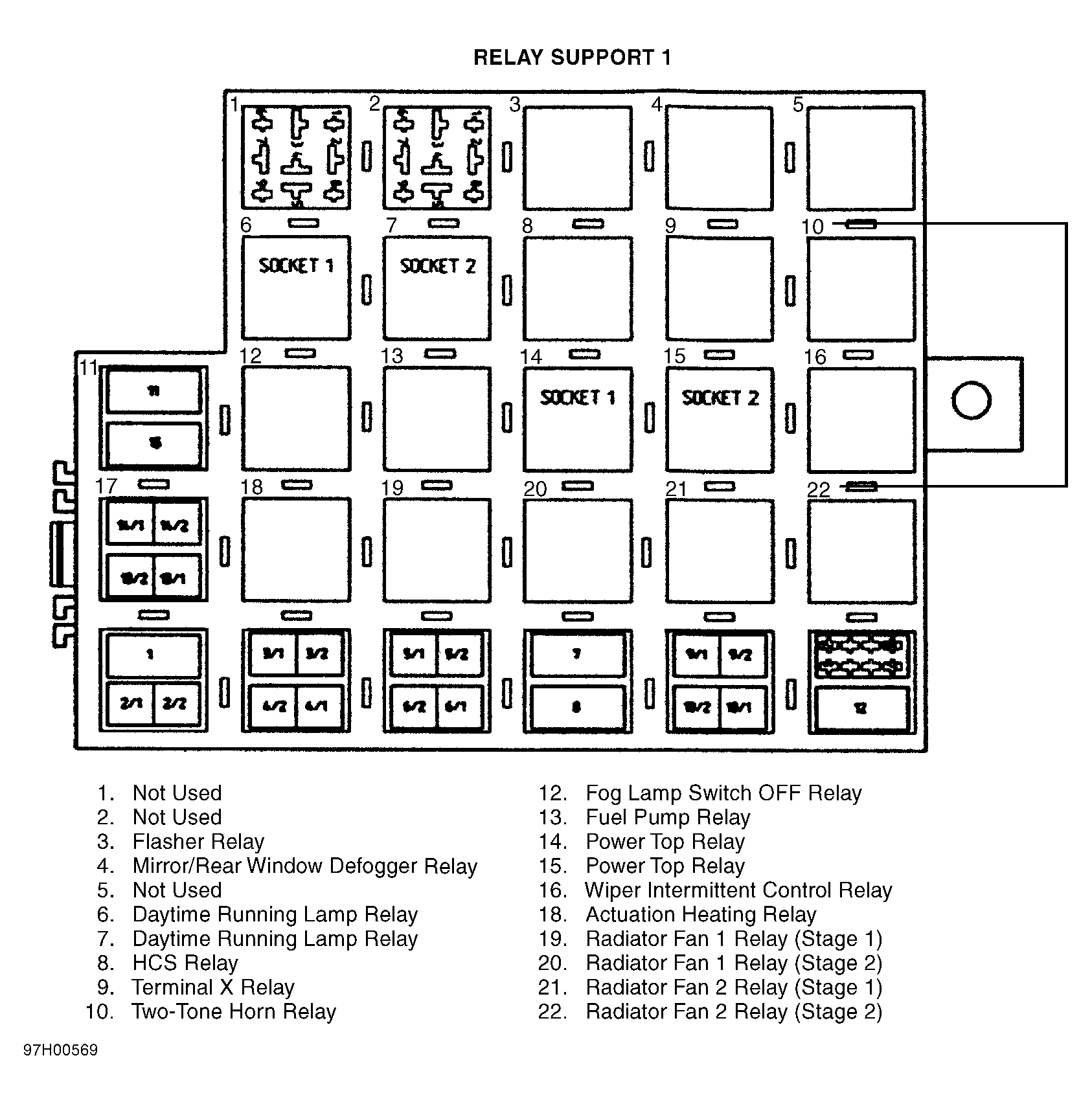

Fig 1: Relay Support 1
G97H00569

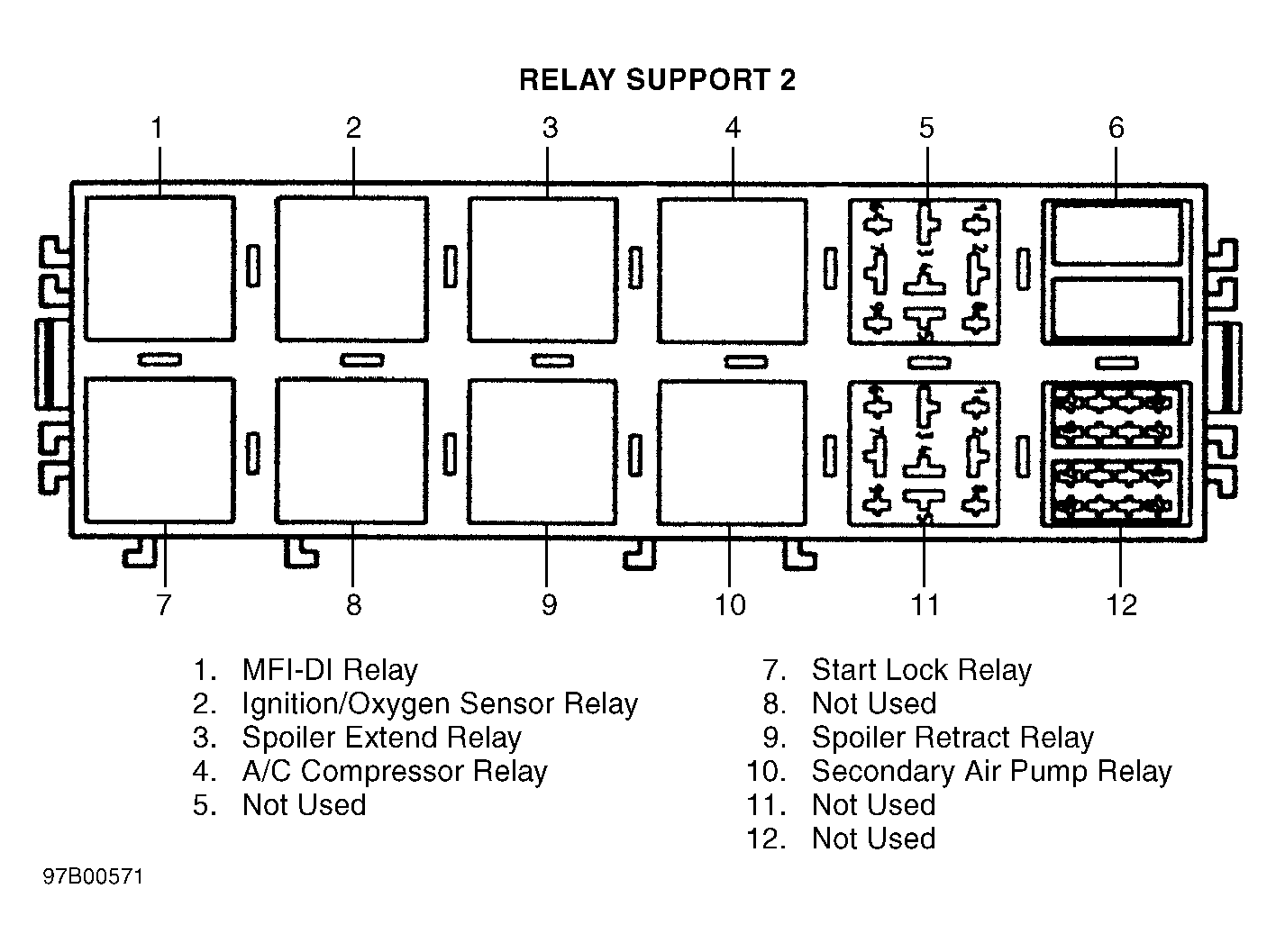

Fig 2: Relay Support 2
G97B00571
Fig 3: Vehicle Overview
G00074649
