Control Units

CONTROL UNITS

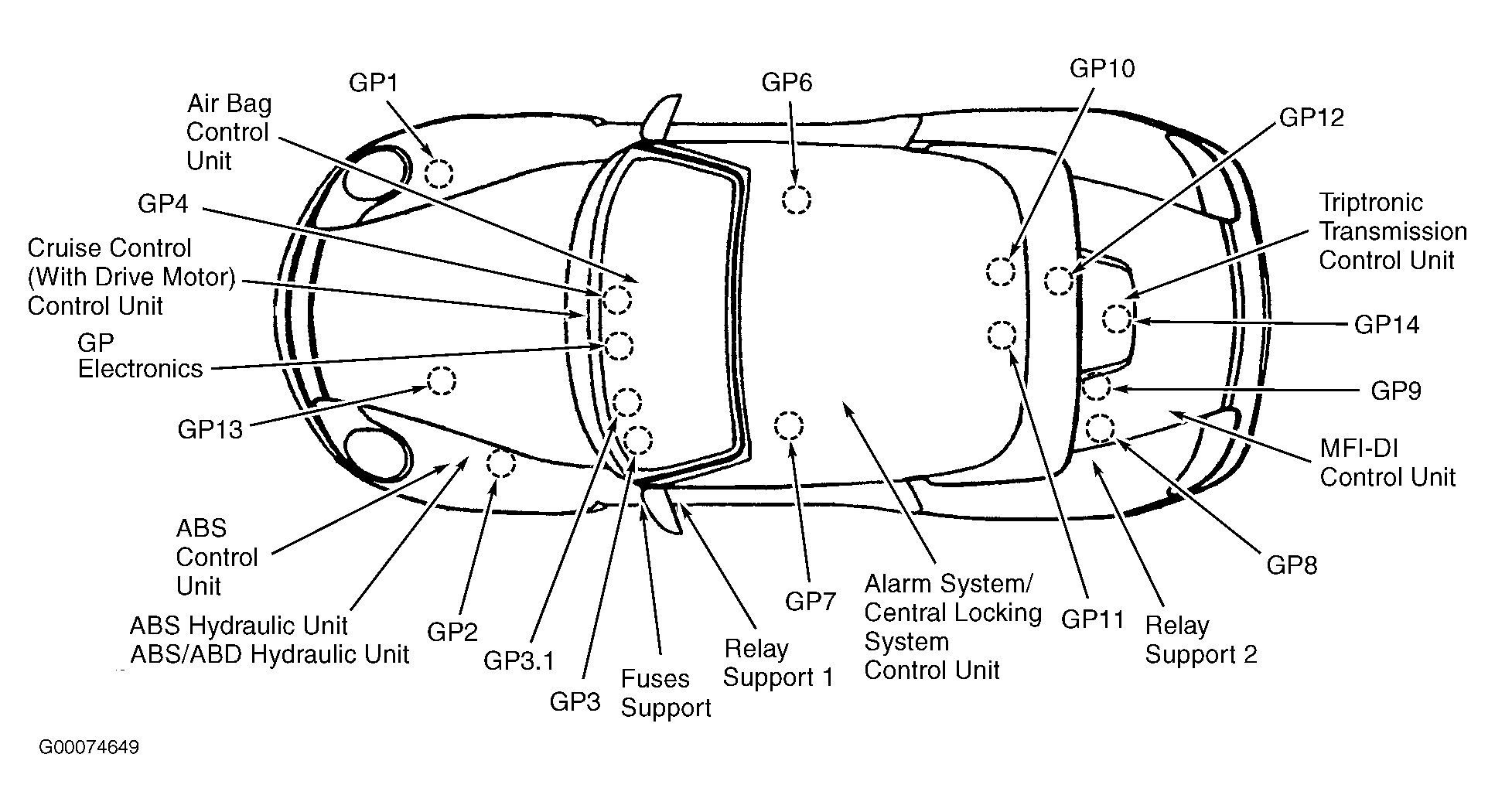

Component Component Location
A/C-Heating Control Unit Behind center of dash.
ABS Control Unit On left side of front luggage compartment. See Figure .
ABS Hydraulic Unit On left side of front luggage compartment. See Figure .
ABS/ABD Hydraulic Unit On left side of front luggage compartment. See Figure .
Air Bag Control Unit Under center console. See Figure .
Alarm System/Central Locking System Control Unit Under driver's seat. See Figure .
Cruise Control (With Drive Motor) Control Unit Behind center of dash. See Figure .
MFI-DI Control Unit On left side of engine compartment. See Figure .
Tiptronic Transmission Control Unit On front center of engine compartment. See Figure .
