DME Connector Assignment

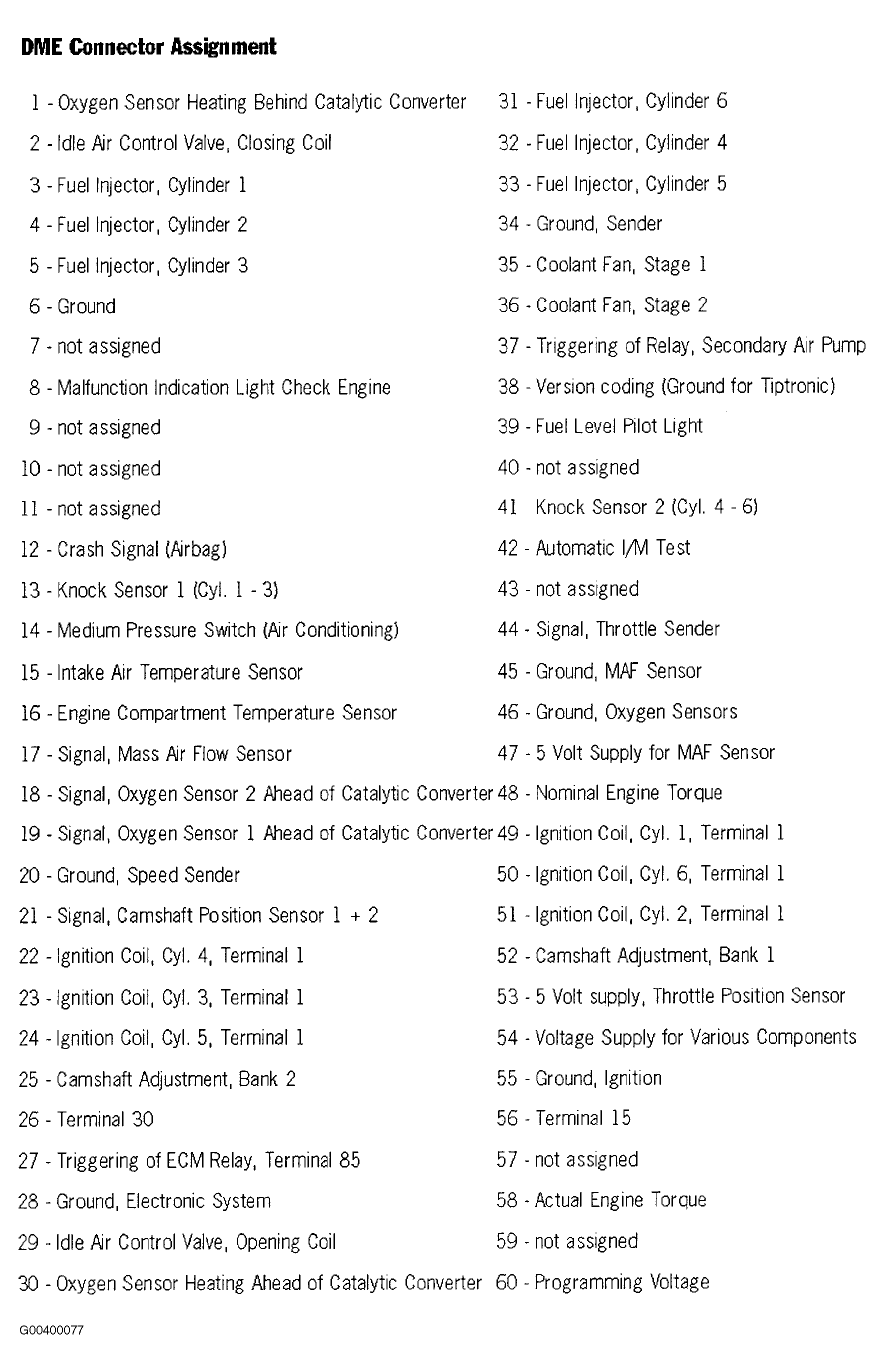

Fig 1: Identifying DME Connector Terminals (1 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.

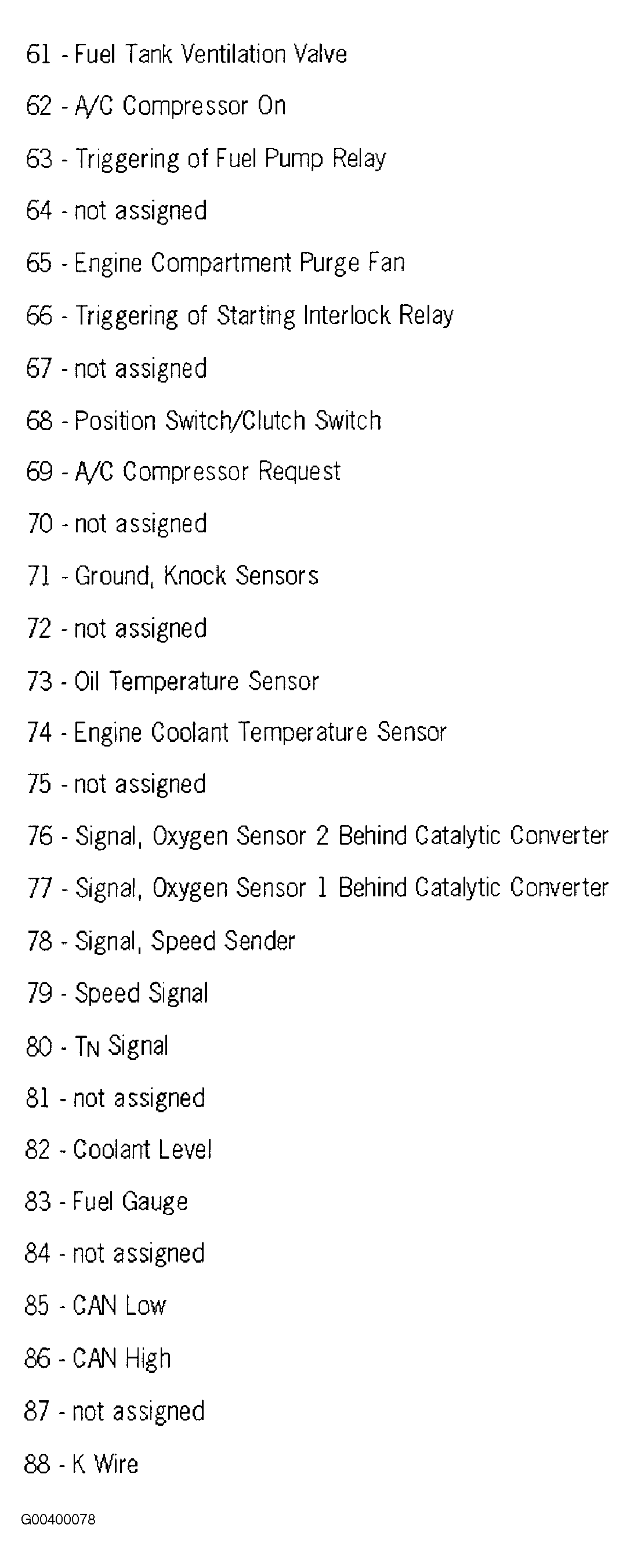

Fig 2: Identifying DME Connector Terminals (2 Of 2)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
