DME 5.2.2 Diagnosis
>>
DTC P1140: Load Calculation - Signal implausible
>>
Diagnostic procedure
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic procedure: Notes

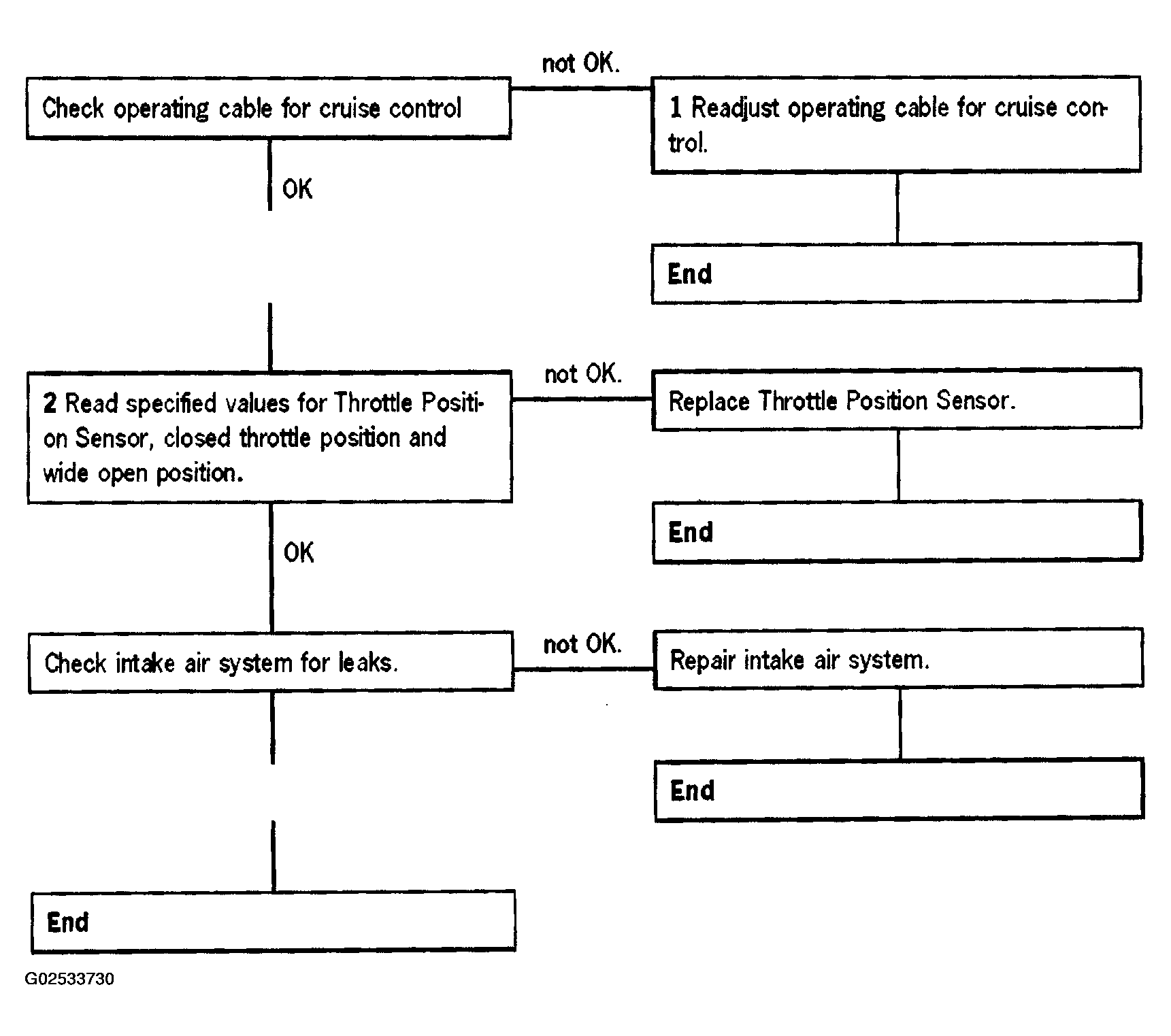

Fig 1: DTC P1140 Diagnostic Procedure
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
