MIL (Check Engine Malfunction Indicator Light)

MIL is not triggered with this fault

MIL is on, emission relevant fault

MIL is flashing, fault damaging to TWC

Only in combination with misfiring

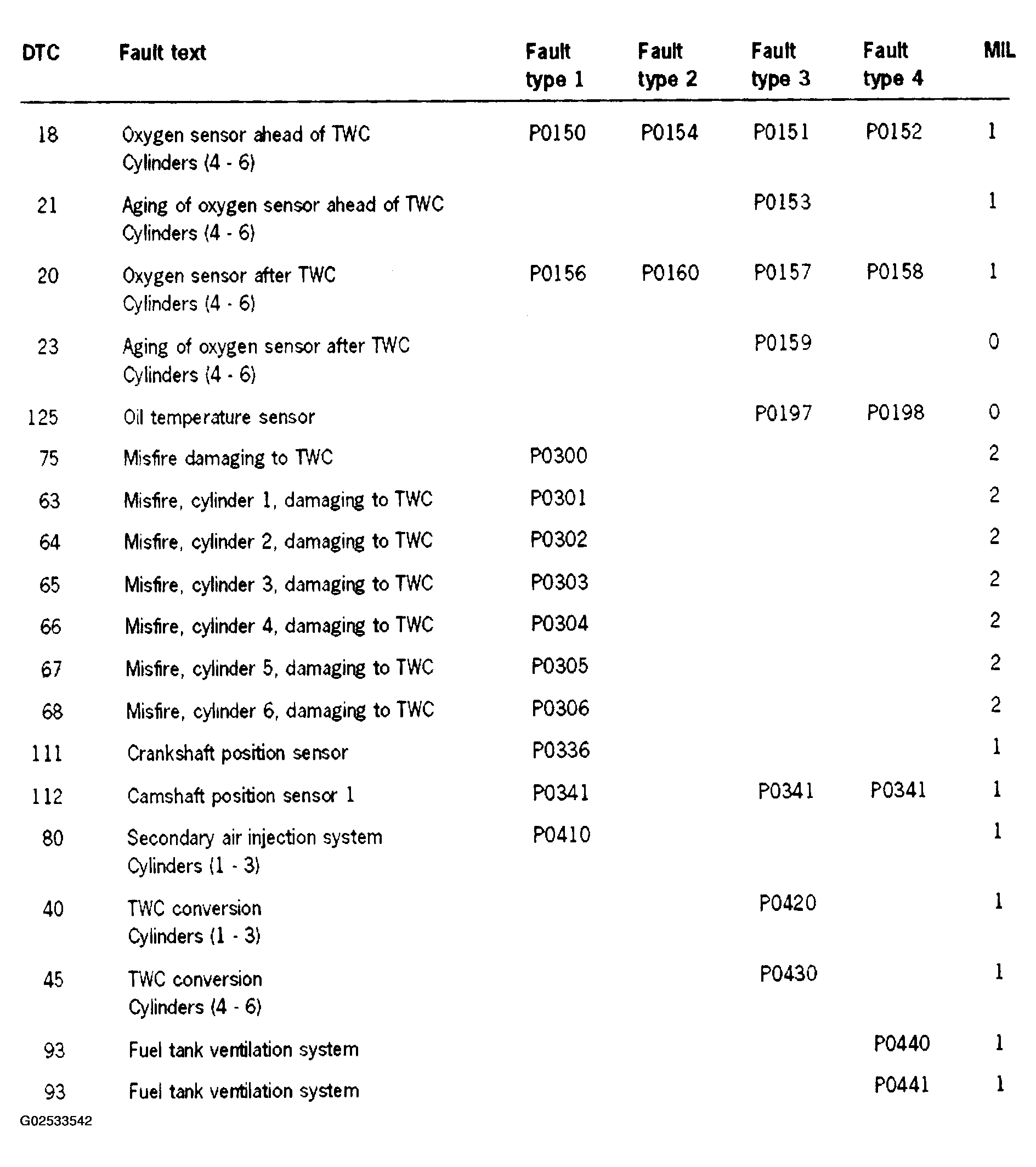

Fig 1: Identifying DTC To Fault Type (1 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

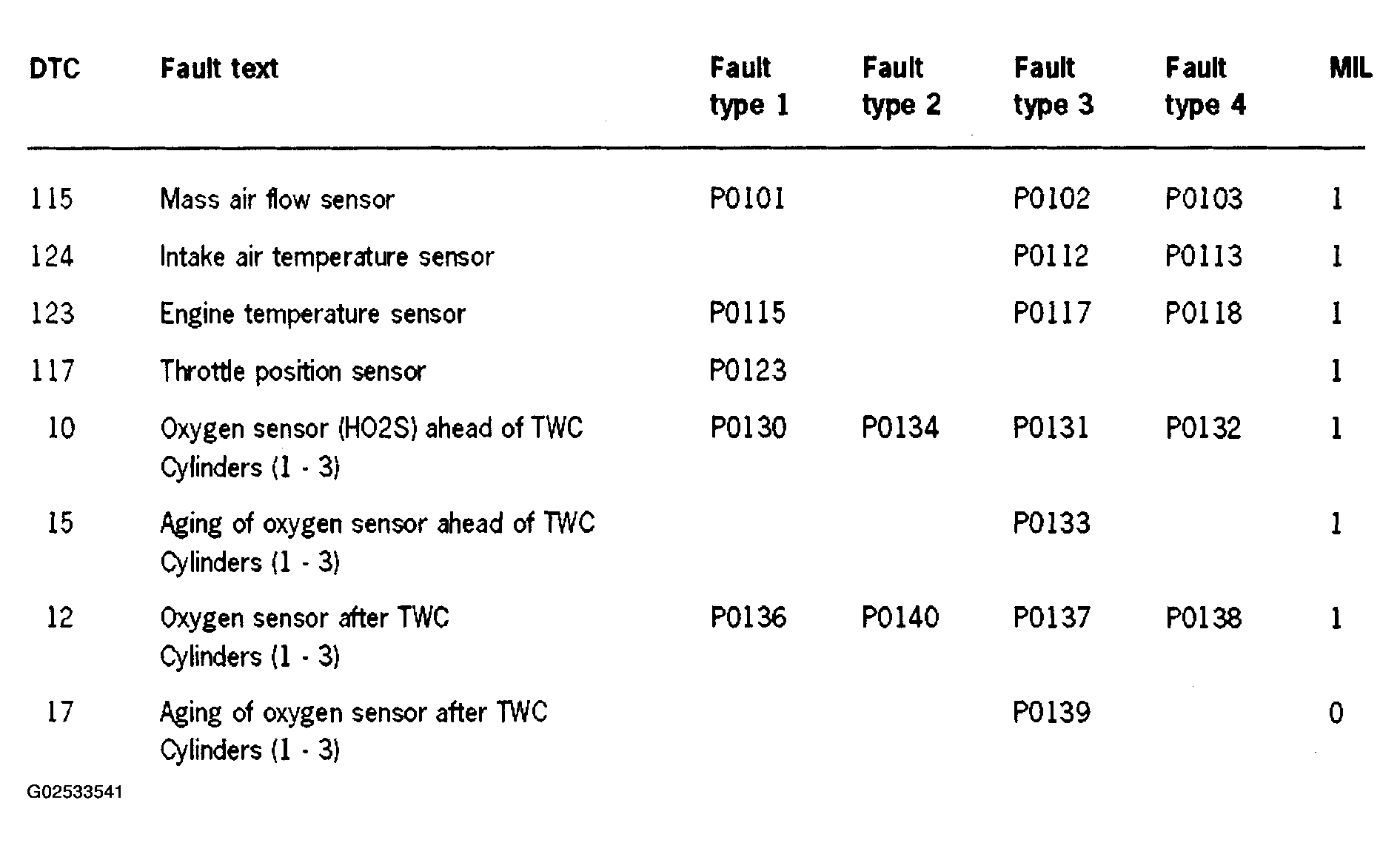

Fig 2: Identifying DTC To Fault Type (2 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

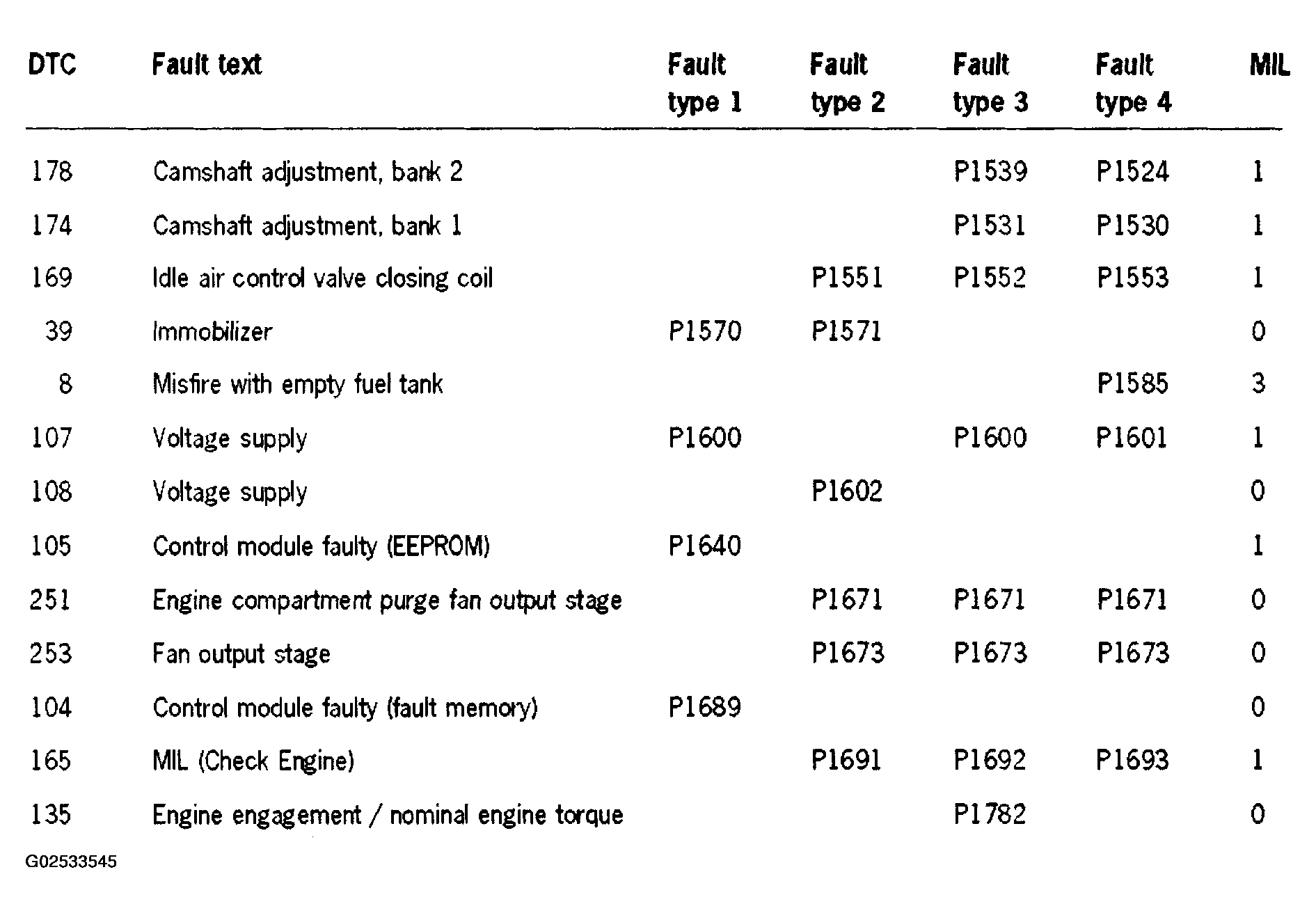

Fig 3: Identifying DTC To Fault Type (3 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

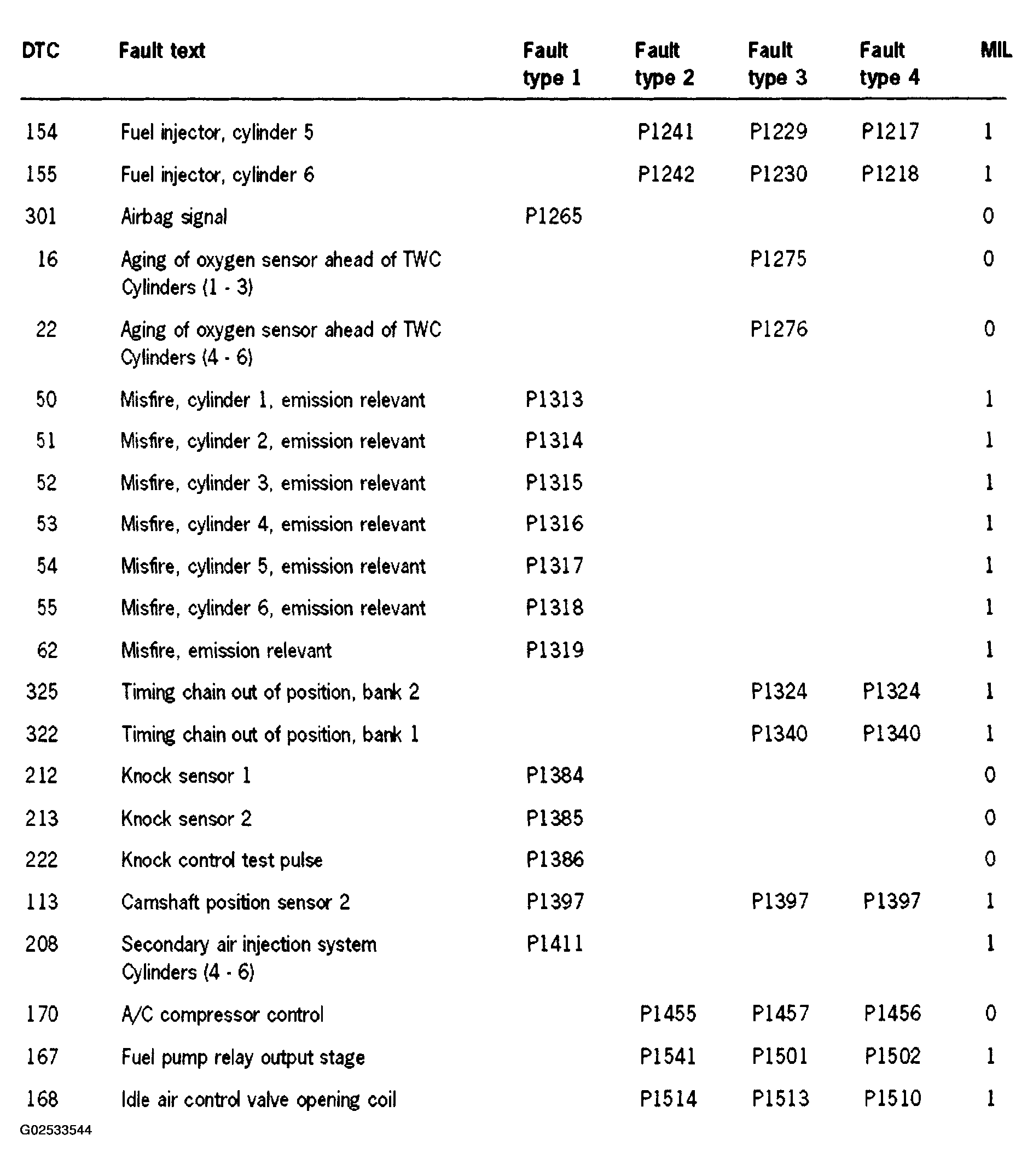

Fig 4: Identifying DTC To Fault Type (4 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

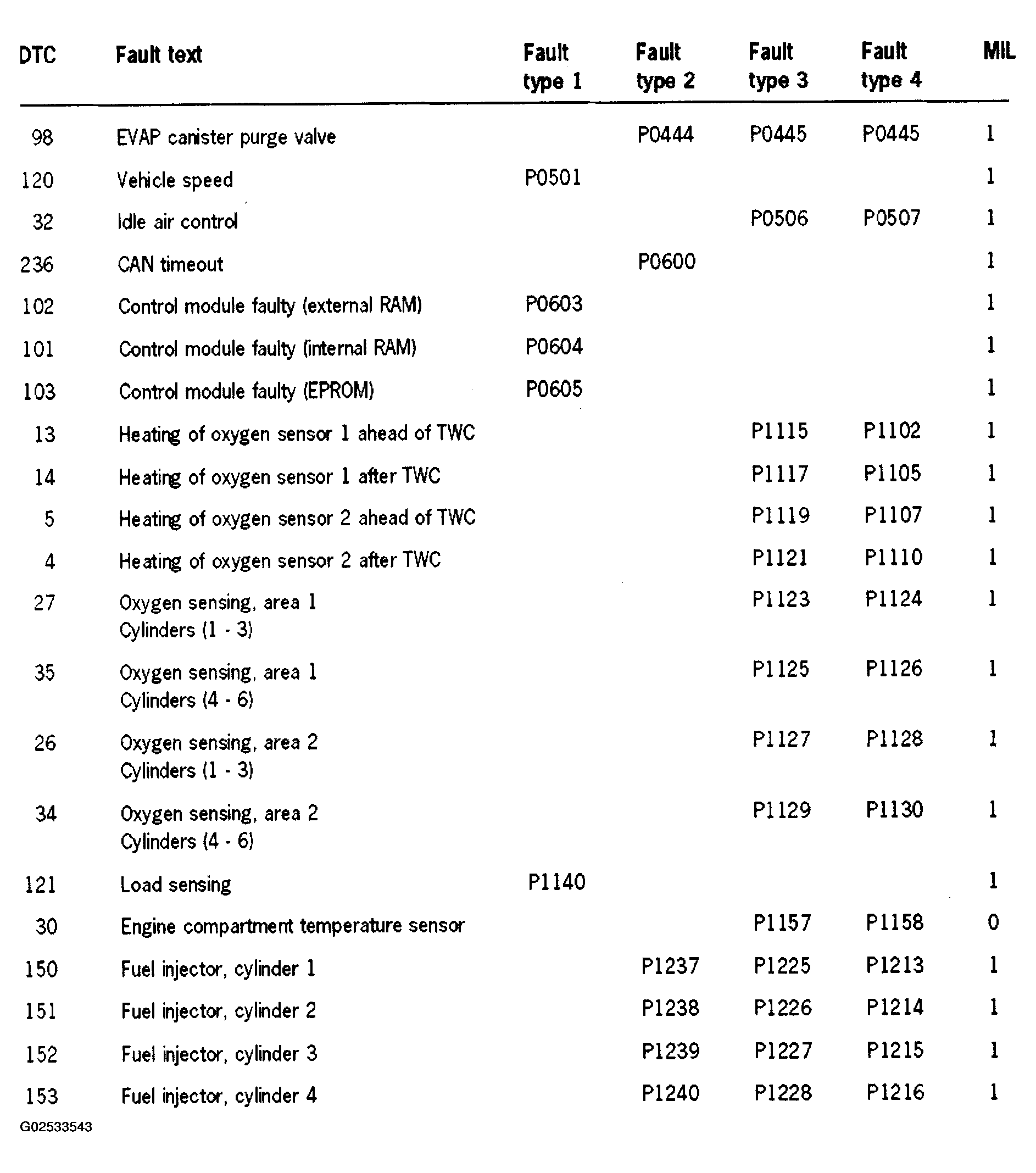

Fig 5: Identifying DTC To Fault Type (5 Of 5)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
