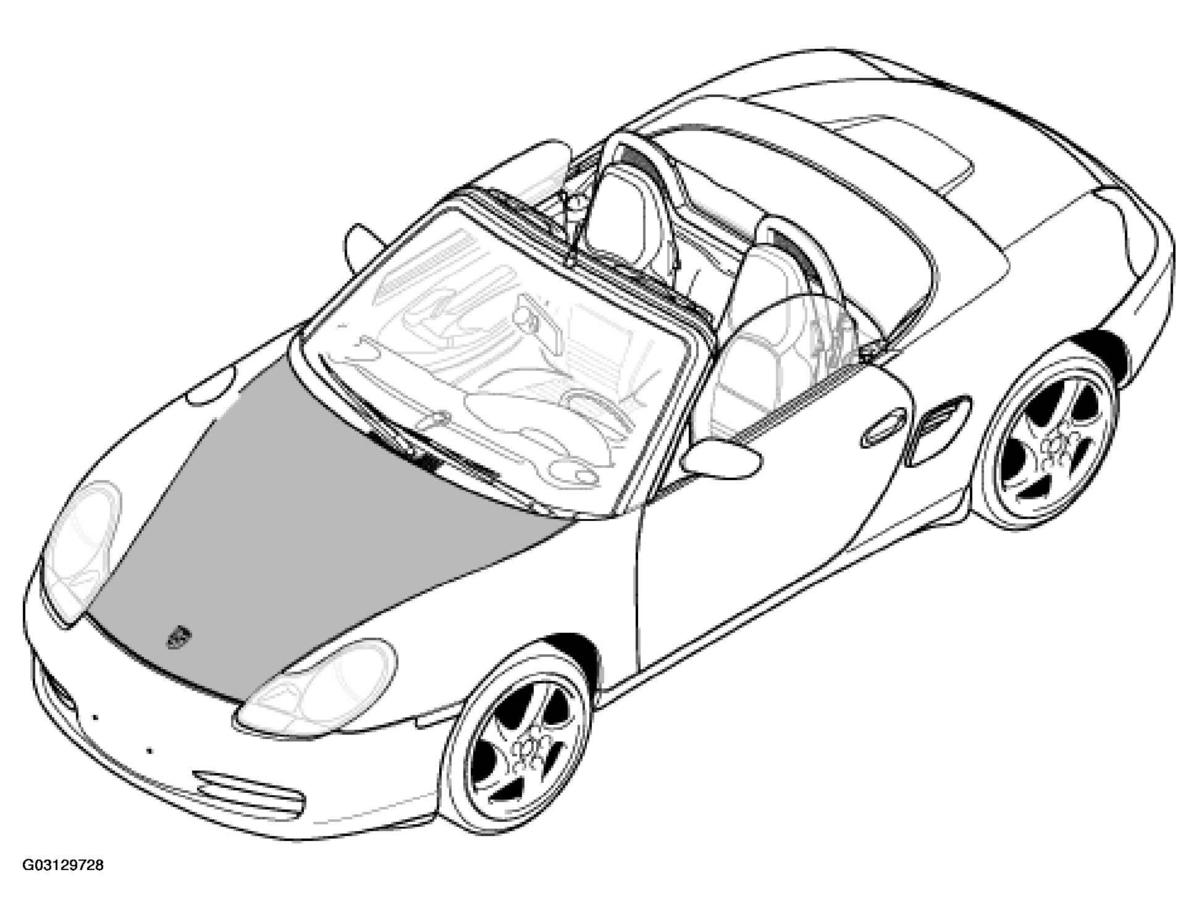

Disassembling and assembling front cover
FRONT COVER DISASSEMBLING AND ASSEMBLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|

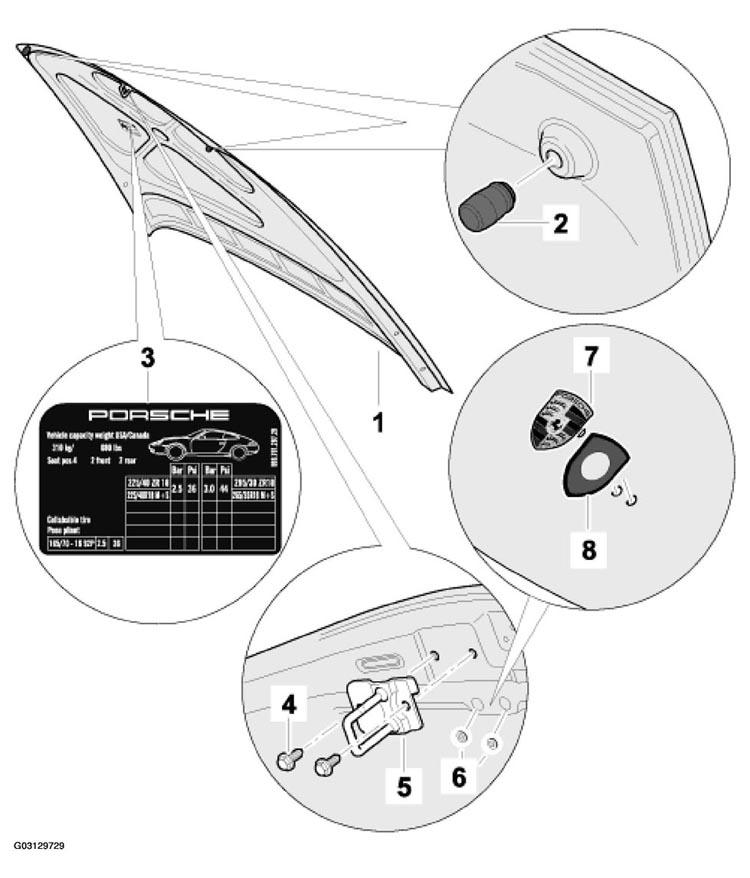

| 1 | Covers | 1 | Adjust cover -1- . See Fig 2 . | |
| 2 | Rubber pads | 2 | Unscrew rubber pads -2- . See Fig 2 . | Screw in rubber pads -2- . See Fig 2 . |
| 3 | Self-adhesive label tire pressure | 1 | ||
| 4 | Combination screw M6 x 12 | 2 | Tightening torque:-10 Nm (7.5 ftlb.)- | |
| 5 | Upper part of the lock | Take upper part of lock -5-1- . See Fig 2 . | Fasten upper part of lock -5-1-4- . See Fig 2 . | |
| 6 | Tapping nut | 2 | Unscrew tapping nut -6- . See Fig 2 . | Replace. |
| 7 | Badge on cover | Remove base -8-7- . See Fig 2 . | Insert base -8-7-6- . See Fig 2 . | |
| 8 | Base | 1 |
