Disassembling and assembling rear cover: Notes

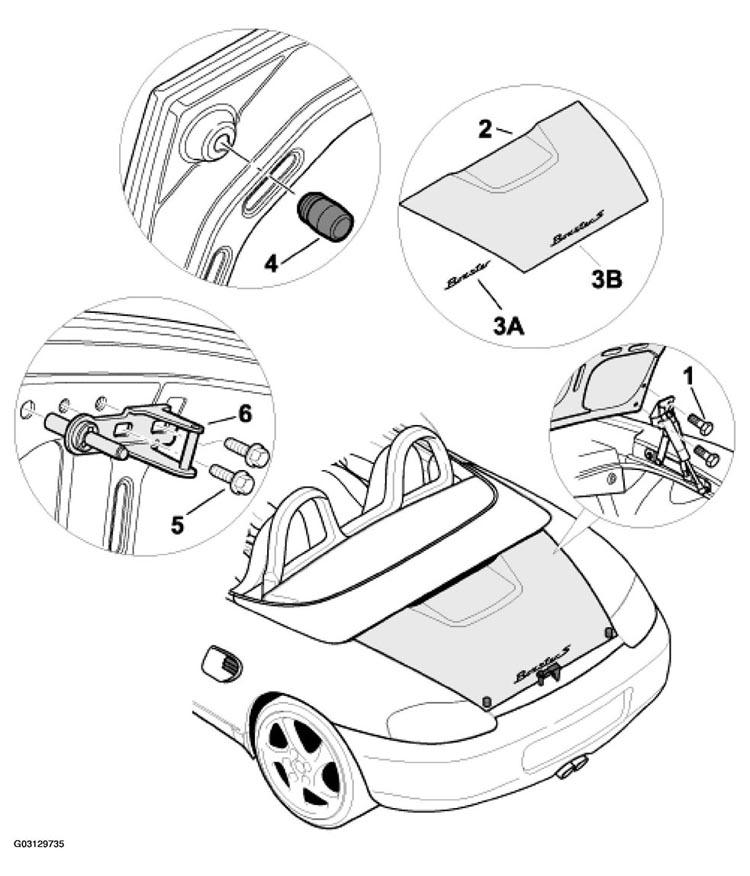

REAR COVER REMOVING AND INSTALLING PROCEDURE
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Fastening screws | 4 | Unscrew. | Tightening torque -10 Nm (7.5 ftlb.)- |

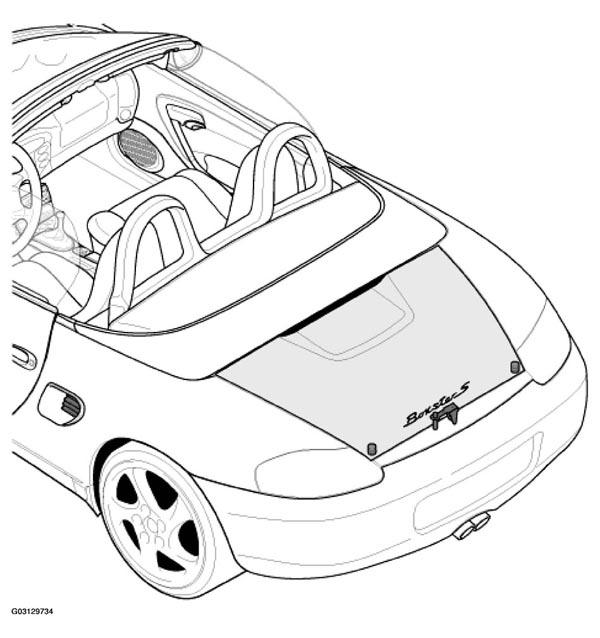

| 2 | Rear cover | Undo the fastening screws -1-2- . See Fig 2 . | Adjust the covers on the hinges, the upper lock parts and the right and left rubber buffers according to the contours of the convertible-top compartment lid and the side sections. | |
| 3A | Logo -Boxster-Boxster- | 1 | Pull off. | |
| 3B | Logo -Boxster S- | 1 | Pull off. | |
| 4 | Rubber pads | 2 | Remove rubber buffers by turning them. | Screw in rubber buffers. |
| 5 | Combination screw M6 x 12 | 2 | Unscrew. | Tightening torque -10 Nm (7.5 ftlb.)- |
| 6 | Upper part of the lock | 1 | Remove upper part of lock from cover. | Fasten the upper part of the lock with the fastening screws -1- . See Fig 2 . |
