Removing and installing filler flap: Notes

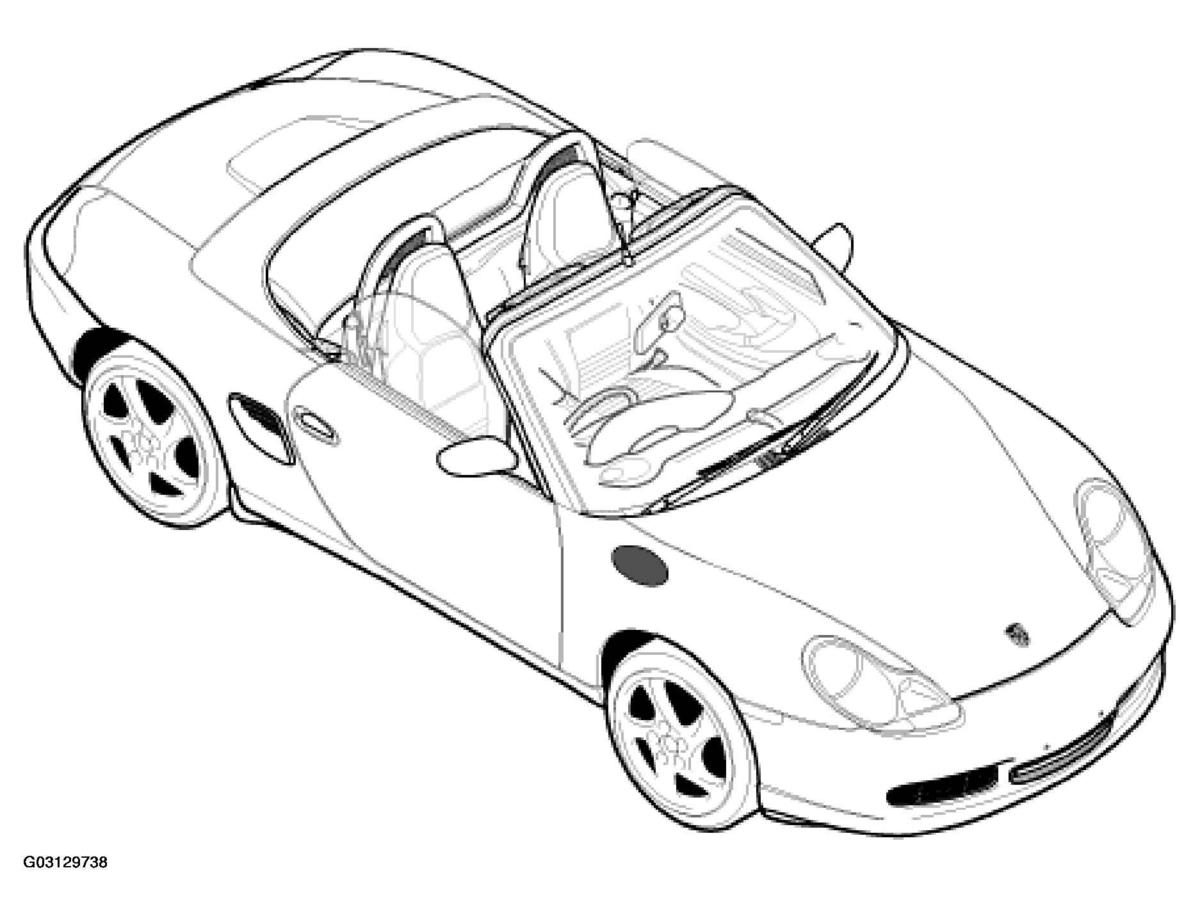

Fig 1: Identifying Fuel Filler Flap

Courtesy of PORSCHE OF NORTH AMERICA, INC.

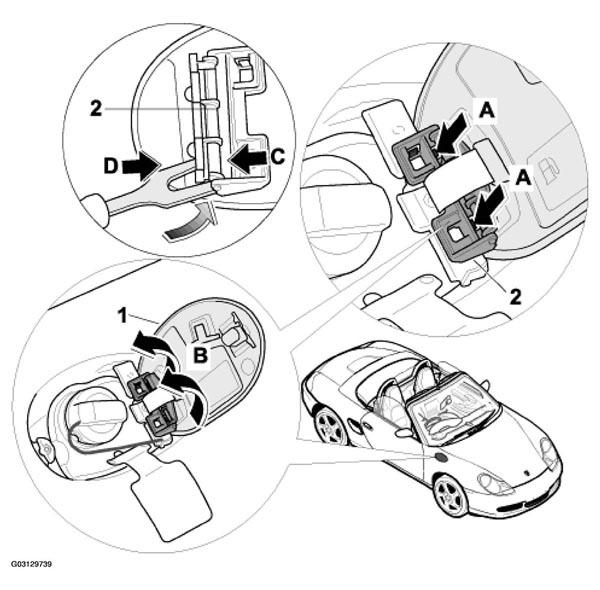

Fig 2: Removing And Installing Fuel Filler Flap Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

FILLER FLAP REMOVING AND INSTALLING PROCEDURE

No.	Designation	Qty.	Removal	Installation
1	Filler flap	1	Insert a narrow screwdriver from above in front of the clip -arrow A-direction of arrow B-1- . See Fig 2 .	Position the filler flap -1- . See Fig 2 .
2	Plastic hinge	1	Insert the removal tool at the locking lugs on the left and right -2-direction of arrow C-1- . See Fig 2 . -2-direction of arrow C-1- . See Fig 2 . and lift via the locking lugs, remove the plastic hinge -2-direction of arrow C-1- . See Fig 2 .	Position the plastic hinge -2-1-direction of arrow D- . See Fig 2 .
