Removing And Installing Optical Contacts: Notes

• Remove PCM. Refer to REMOVING AND INSTALLING DISPLAY AND OPERATOR . Remove and install the operator control unit (PCM2).

  Disconnecting the plug connection on the amplifier:

  Fig 2: Disconnecting Amplifier Plug Connection

  Courtesy of PORSCHE OF NORTH AMERICA, INC.
• Remove cover for the brake booster.

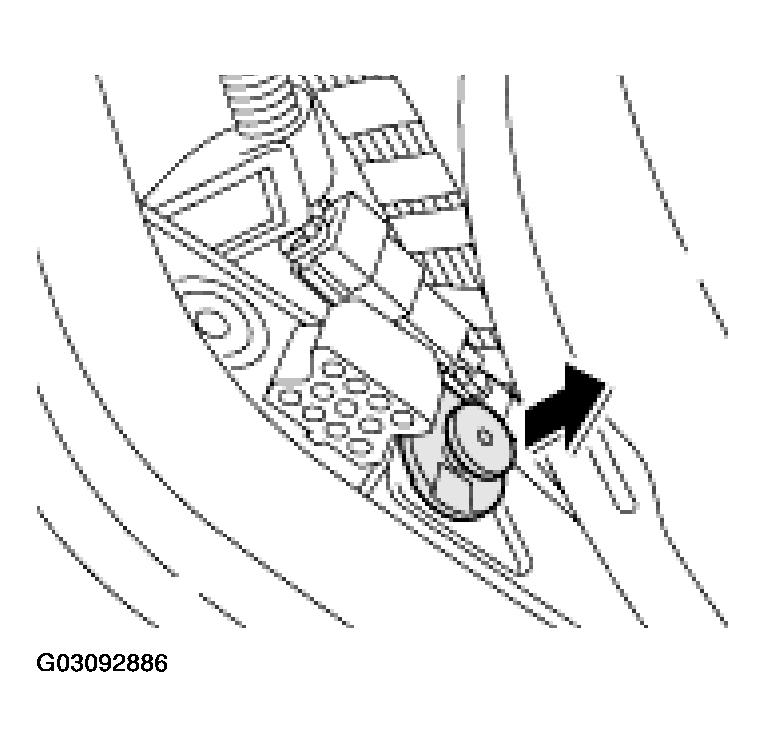

Disconnecting the joint in the front luggage compartment:

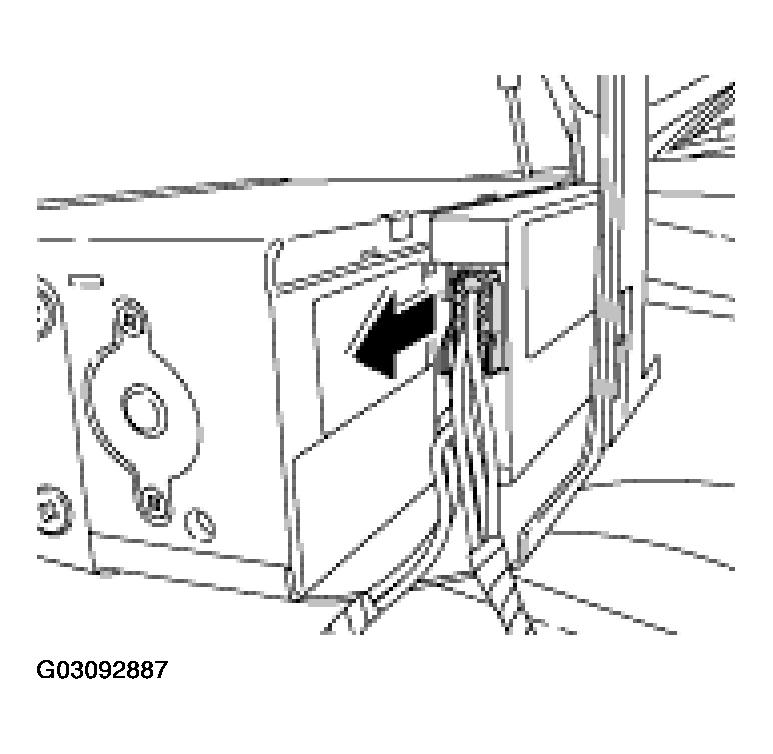

Disconnecting the plug connection on the CD changer:

• Remove the CD changer.

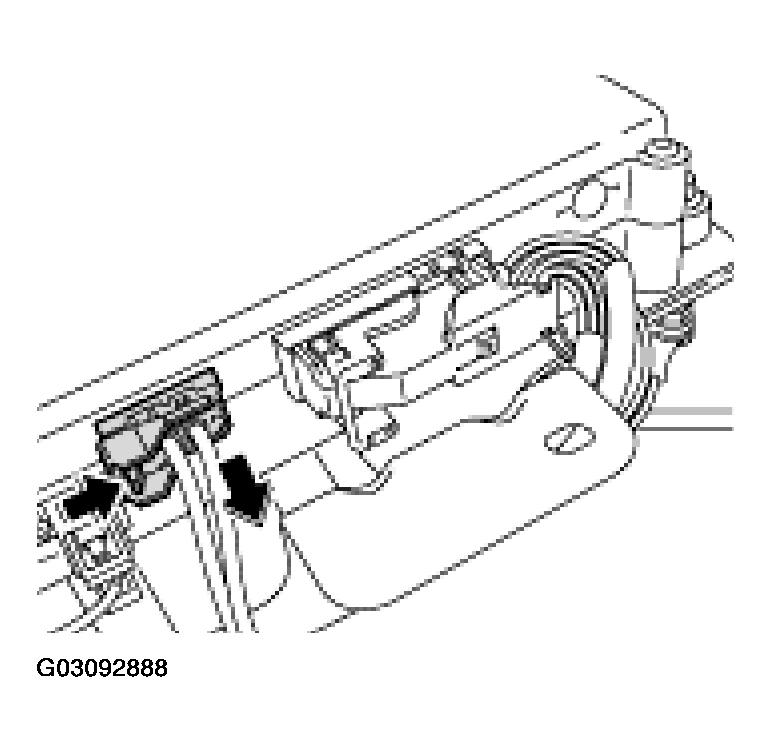

Unplugging the control unit plug connection for the telephone:

• Remove passenger's seat. Refer to REMOVING AND INSTALLING FRONT SEAT, - AS OF MY 1996 .
• Removing control unit holder for telephone. Refer to REMOVING AND INSTALLING CONTROL UNIT FOR THE TELEPHONE .
