Installing The Current Distributor
NOTE:
- The following spare parts must be replaced:
Hexagon nut M 6, 7 ea.
Hexagon nut M 8, 2 ea.
Service label, red
Depending on condition, flange seal, current distributor/firewall
Tie-wraps

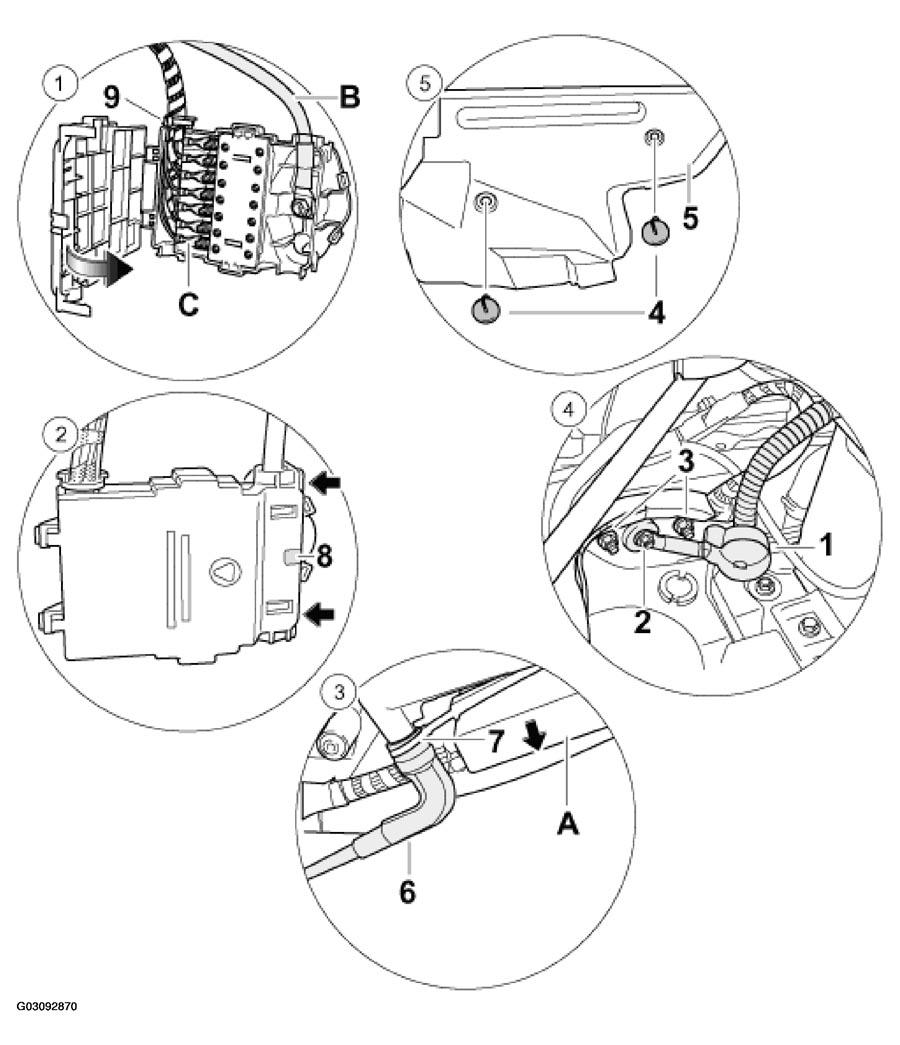

CURRENT DISTRIBUTOR INSTALLATION SEQUENCE
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1 | Connecting the connection lines | Connect the connection lines -C-B-9- (1) | ||
| 2 | Closing and sealing the current distributor | Close the cover until both locking elements -arrow-8-red- (1) | ||
| 3 | Installing the current distributor | Check the flange seal between the current distributor and the firewall for damage and replace, if necessary. Push the current distributor -A-direction of the arrow-A-6-7- (1) | ||
| 4 | Screwing the current distributor tight | Tighten both hexagon nuts -3-2-1- (1) | ||
| 5 | Cover in passenger's footwell | Position the cover -5-4- (1) | ||
| Connecting the battery | Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY . Work instructions after disconnecting the battery. | |||
| Installing the cowl panel cover | Refer to REMOVING AND INSTALLING COWL PANEL COVER . Removing and installing cowl panel cover. | |||
|
||||
