Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location
Back-Up Lights Fuse On relay support 2.

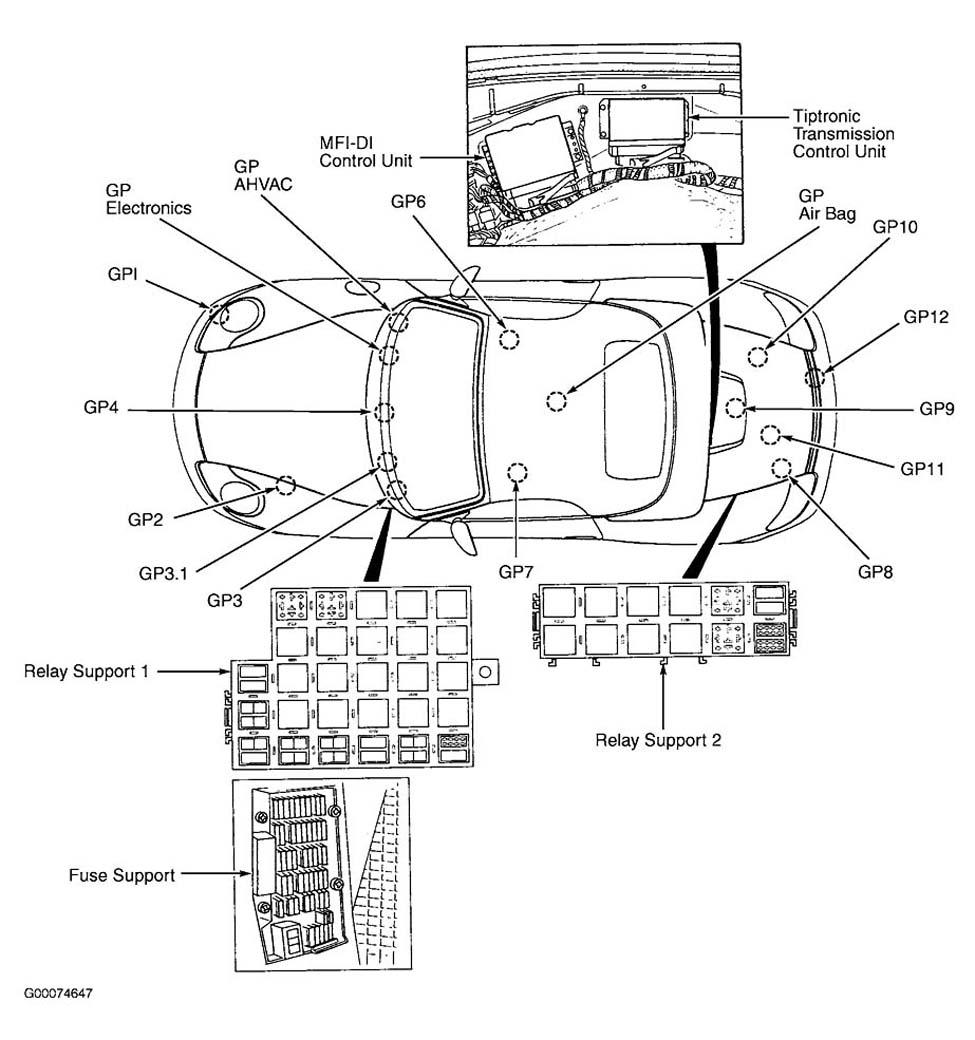

Fuse Support Under left side of dash, at kick panel. See Figure .
Relay Support 1 Under left side of dash, in footwell. See Figure .
Relay Support 2 On left side of rear luggage compartment. See Figure .
Secondary Air Injection Maxi-Fuse On relay support 2.
