Special Tools

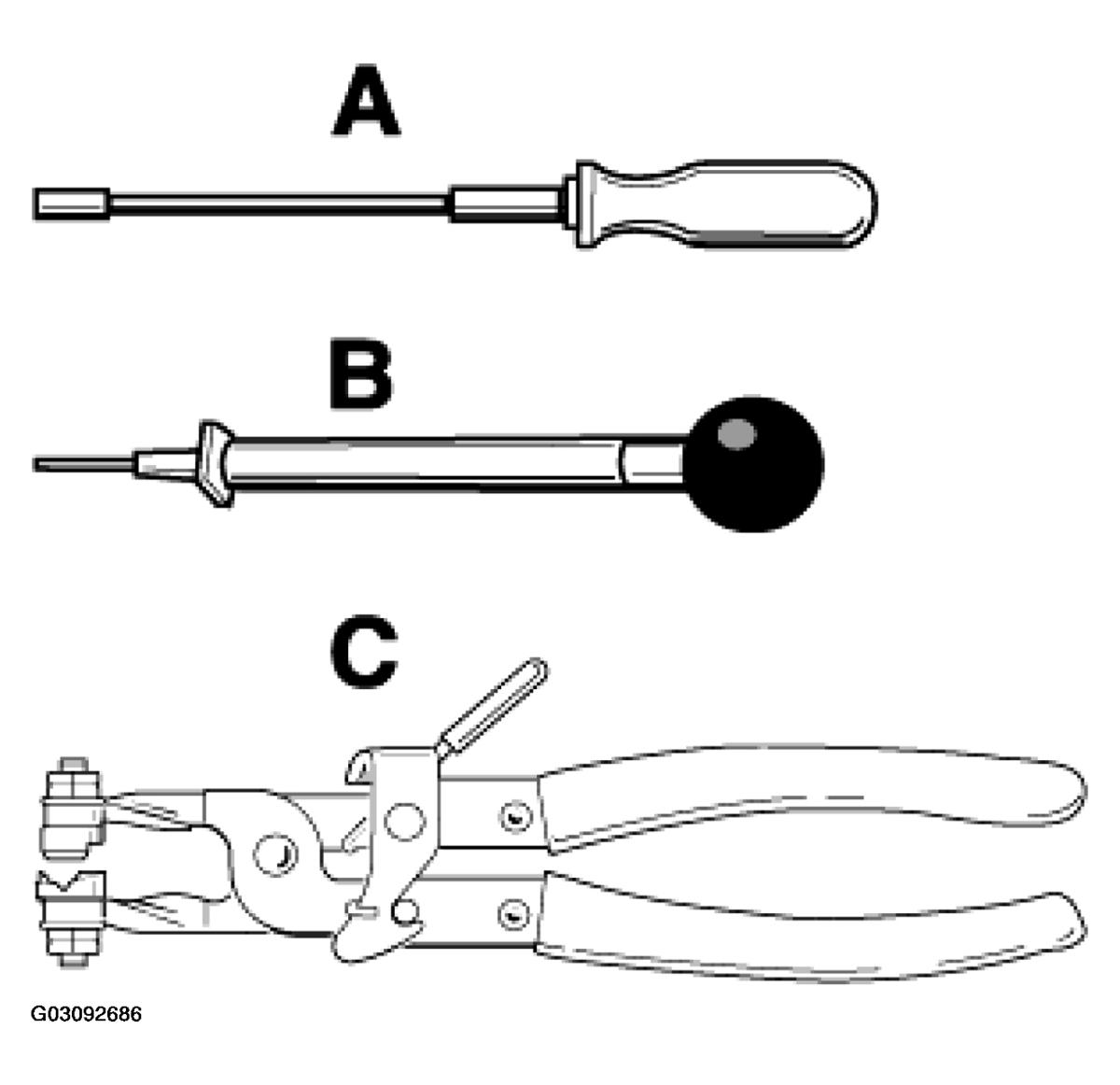

SPECIAL TOOLS (1 OF 2)
| Item | Designation | Special tool | Remarks | ||
|---|---|---|---|---|---|
| A(1) | Flexible screwdriver wrench size 7 | Commercially available | For undoing or tightening screw hose clamps | ||
| B(1) | Frost protection testing device | Commercially available | For checking the frost protection content in the coolant circuit. The structural shape can deviate from that in shown in (1). | ||
| C(1) | Spring-band clamp pliers | Commercially available | For opening and closing spring-band clamps | ||
| Frostox R Spezial | Part Nos.: 000.043.204.39 | Agent for cleaning the coolant circuit. Available from the Porsche Parts Service | |||
|
|||||

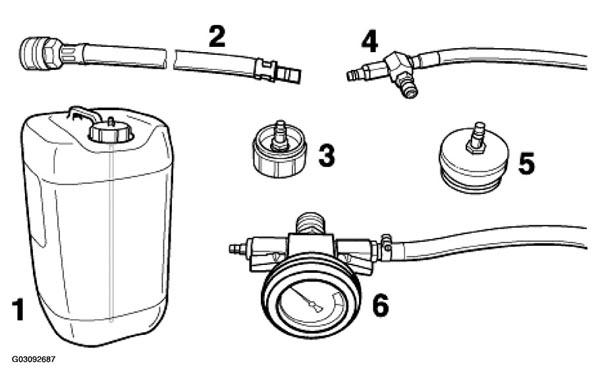

SPECIAL TOOLS (2 OF 2)
| Item | Designation | Special tool | Remarks | ||
|---|---|---|---|---|---|
| 1(1) | Canister | Contained in scope of delivery of 9696 | 30 L canister with lifting tube. | ||
| 2(1) | Hose extension FZ 100 K | Contained in scope of delivery of 9696. | Is connected between adapter K22 and pressure gauge part. | ||
| 3(1) | Adapter K 22 | Contained in scope of delivery of 9696. | Is mounted onto the coolant expansion tank. | ||
| 4(1) | Venturi nozzle (KVB 01) | Contained in scope of delivery of 9696. | For producing vacuum. | ||
| 5(1) | Adapter K 65 | Contained in scope of delivery of 9696. | |||
| 6(1) | Pressure gauge (KVB 01) | Contained in scope of delivery of 9696. | Displays the existing vacuum. | ||
|
|||||
