Removing And Installing Coolant Pump: Notes

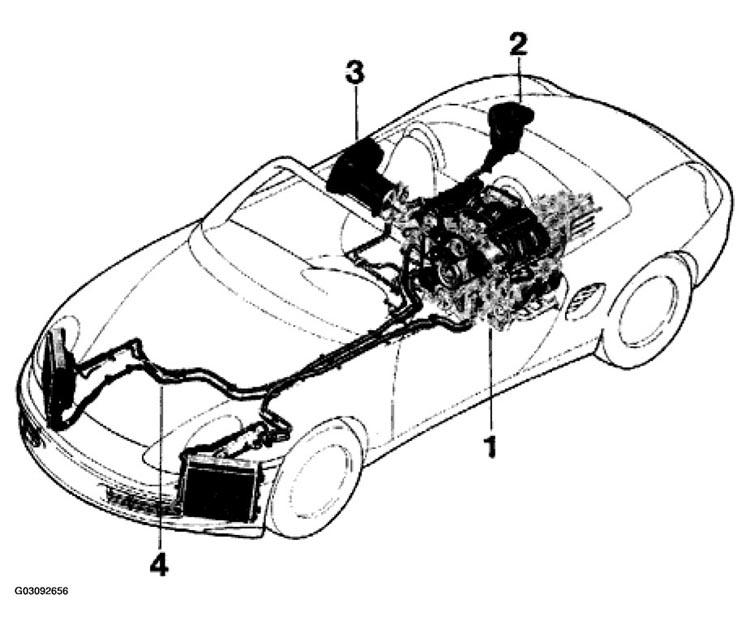

Fig 1: Identifying Cooling System Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

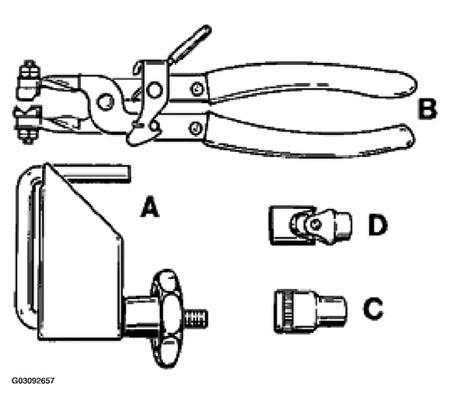

Fig 2: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

No.

Designation

Explanation

A⁽¹⁾

Hose clamp

Art. No. 3093, from Saltus Art. No. 3094, from Saltus

B⁽¹⁾

Spring-band clamp pliers

Mubea G0 - 190, from Muhr [amp ] Bender

C⁽¹⁾

Torx socket

E12 (3/8 inch), from Stahlwille

D⁽¹⁾

Flexible-head socket wrench

Art. No. 4001 - 10, from Stahlwille

⁽¹⁾	For explanation see Fig 2.

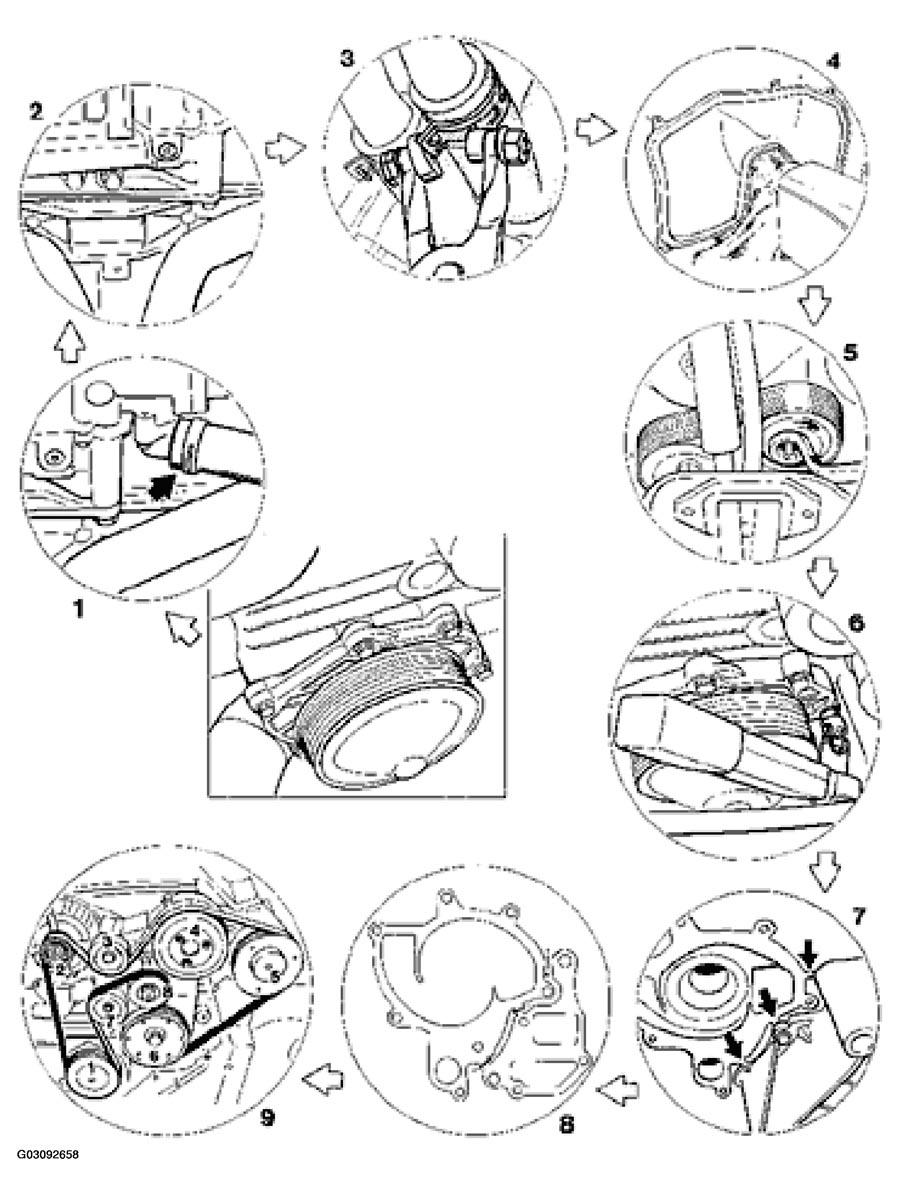

Fig 3: Removing And Installing Coolant Pump

Courtesy of PORSCHE OF NORTH AMERICA, INC.
