Removing And Installing Oil Protection Tube - Engine Installed: Tools

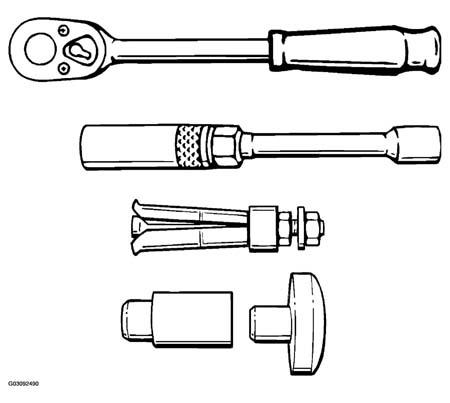

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item	Designation	Special tool
A(1)	Spark-plug wrench	commercially available
B(1)	Internal puller 23.5 - 30 mm °	commercially available
C(1)	Hand pressure piece, for fitting the oil protection tubes	9604
D(1)	Pressure piece, for fitting the oil protection tubes	9605/1
(1) For explanation see Fig 1 .
