Fitting check valve on intake distributor

The black side of check valve must face rubber sleeve. Lay vacuum hose tension-free.

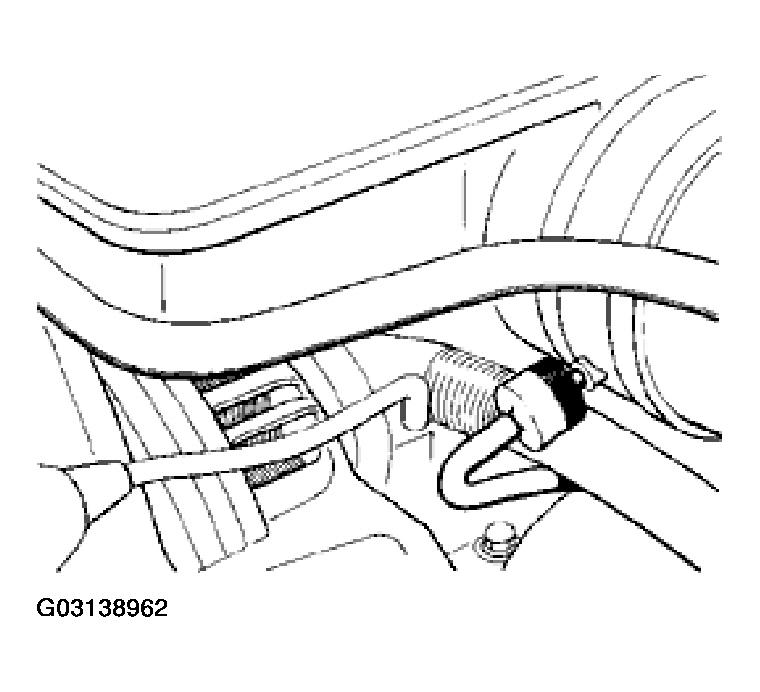

Fig 1: Fitting Check Valve On Intake Distributor

Courtesy of PORSCHE OF NORTH AMERICA, INC.
