Removing and installing pulse sender: Removal

1. Remove right rear wheel.

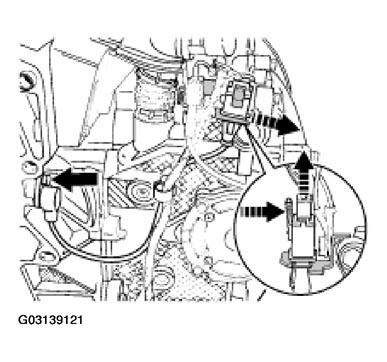

2. Disconnect plug connection; to do this, press the clip and simultaneously pull off the plug. Pull the lower plug half out of the holder to the right.
   Fig 1: Disconnecting Pulse Sender Plug Connection

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

Engine removed for the sake of clarity

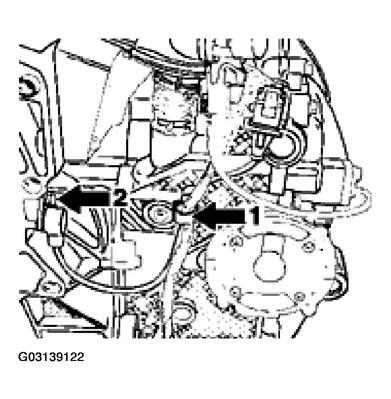

3. Unclip cable (arrow 1). Undo M6x 16 pan-head screw (arrow 2) (wrench size 4 mm) and remove the pulse sender.
   Fig 2: Unclipping Cable & Undoing Pan-Head Screw

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

Engine removed for the sake of clarity
