Removing and installing rotor for hall sensor: Tools

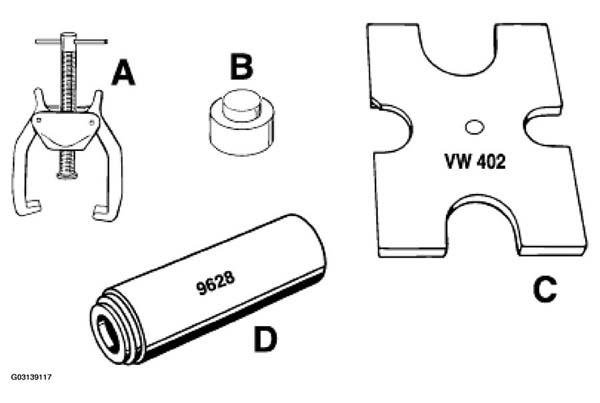

Fig 1: Identifying Hall Sensor Rotor Removing And Installing Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

TOOL DESCRIPTIONS

Item	Designation	Special tool
A in Fig 1 .	Extractor	Commercially available
B in Fig 1 .	Spacer	VW 545/2
C in Fig 1 .	Pressure plate	VW402
D in Fig 1 .	Pressure piece	9628
