Removing and installing fuel pump: Removal

Undo battery terminals and battery holder. Lift battery out by holding strap.
Undo battery support cover (four hexagon nuts, wrench size 13).
Disengage fuel line and disconnect electrical plug connection.

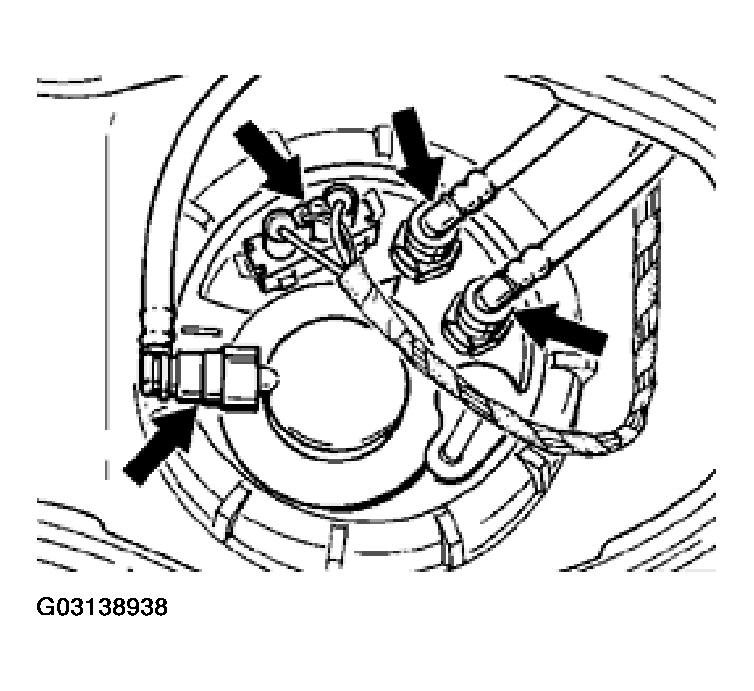

Fig 1: Disengaging Fuel Line And Disconnecting Electrical Plug Connection
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Undo union nut with VW special tool 3217.

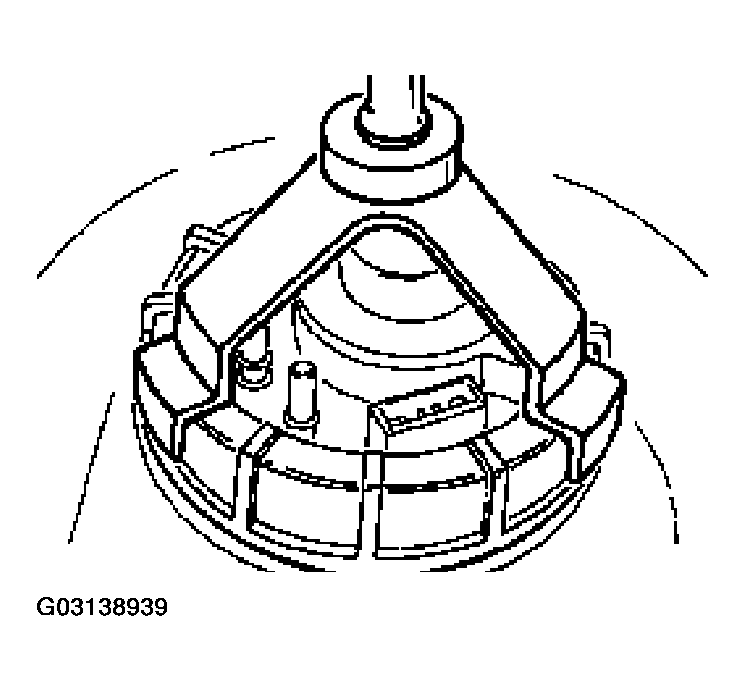

Fig 2: Removing Union Nut With Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Extract residual fuel.
NOTE: Observe safety regulations.
Lift fuel gauge and disconnect electrical plug connection and fuel pipes.

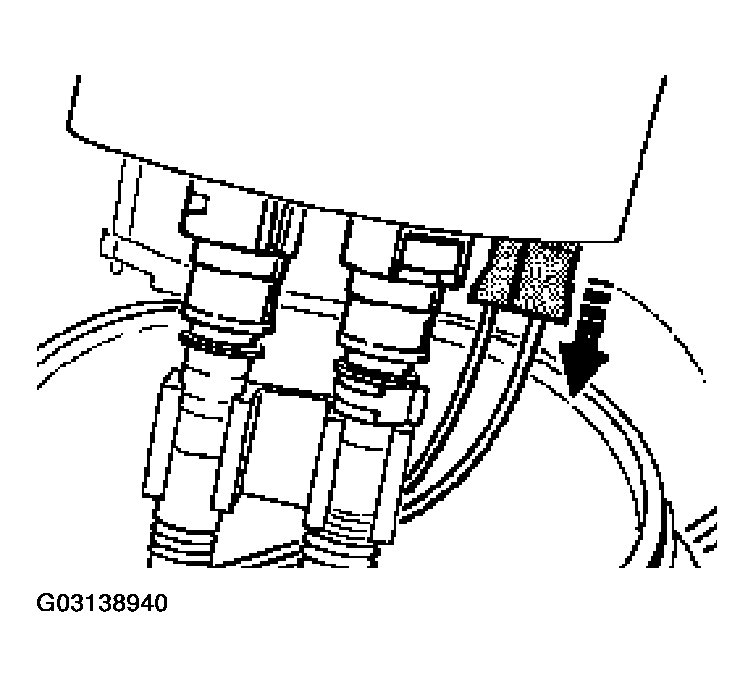

Fig 3: Lifting Fuel Gauge And Disconnecting Electrical Plug Connection And Fuel Pipes
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Put on fuel-proof glove, hold the fuel pump fastened to tank floor, turn it to left (approx. 15°, bayonet lock) and remove fuel pump.
