Installing front three-point belt
INSTALLING FRONT THREE-POINT BELT INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Only on vehicles with belt tensioner Installing belt tensioner | See REMOVING AND INSTALLING BELT TENSIONER | |

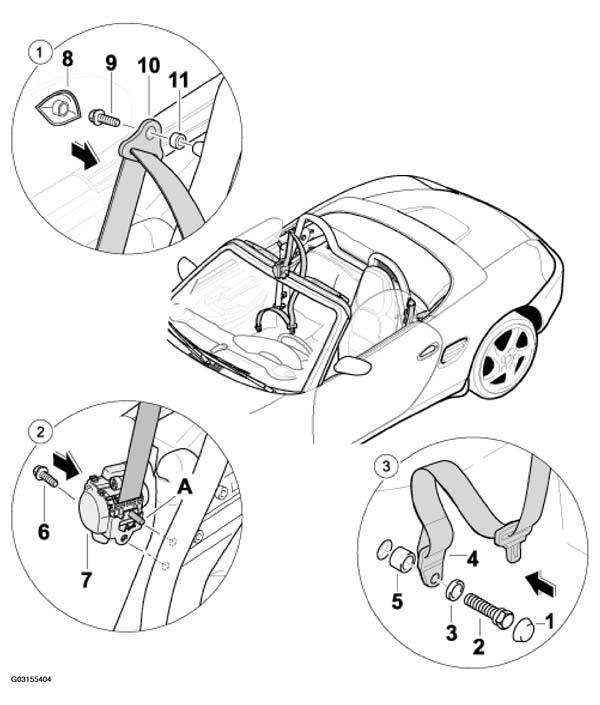

| 1 | Installing deflector | Position deflector -10-11-9-8- . See Fig 1 . |
| 2 | Installing automatic belt device | Position automatic belt device -7-A-6- . See Fig 1 . |
| 3 | Removing seat belt and fitting | Make sure that the belt strap can run properly! -2-3-4-5- . See Fig 1 . |
| Screw the fastening screw -2-3-4-5- . See Fig 1 . | ||
| Removing side-panel lining |
