Removing front three-point belt
REMOVING FRONT THREE-POINT BELT INSTRUCTIONS
| No. | Procedure | Instructions |
|---|---|---|
| Removing side-panel lining | ||

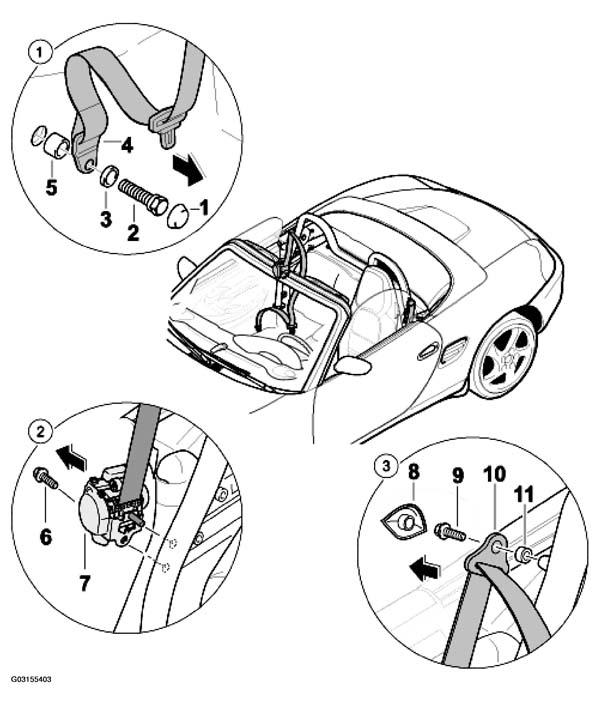

| 1 | Removing seat belt and fitting | Press out the covering cap -1-2-4-5-3- . See Fig 1 . |
| Removing belt tensioner | See REMOVING AND INSTALLING BELT TENSIONER | |
| Only on vehicles with belt tensioner | ||
| 2 | Removing automatic belt device | Unscrew fastening screw -6-7- . See Fig 1 . |
| 3 | Removing deflector | Remove the cover -8-9-10-11- . See Fig 1 . |
