Install sensor for side airbag

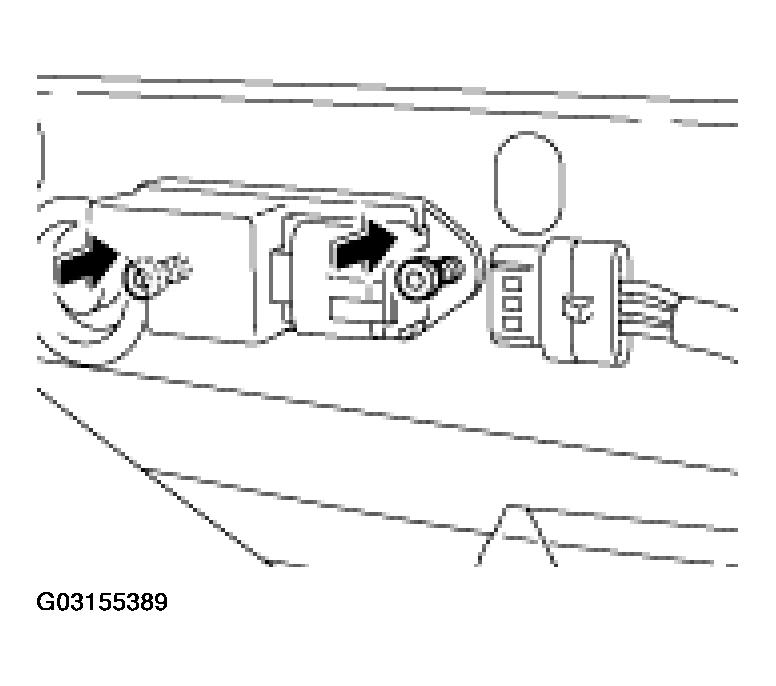

- Position sensor and secure with the fastening screws. Tightening torque 10 Nm (7.5 ftlb.).
Courtesy of PORSCHE OF NORTH AMERICA, INC.

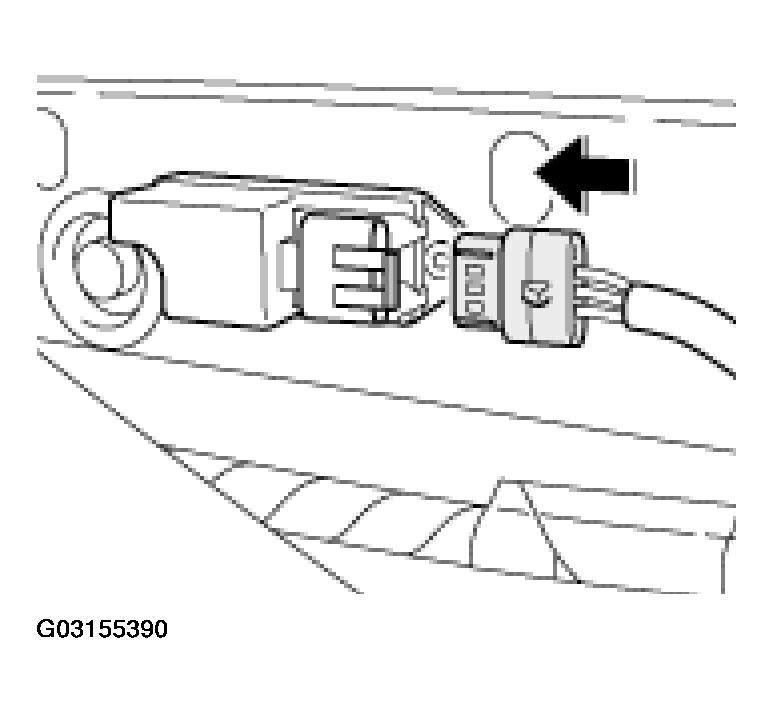

- Connect electrical plug connection.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Position the support and engage in lower side member.
Courtesy of PORSCHE OF NORTH AMERICA, INC.

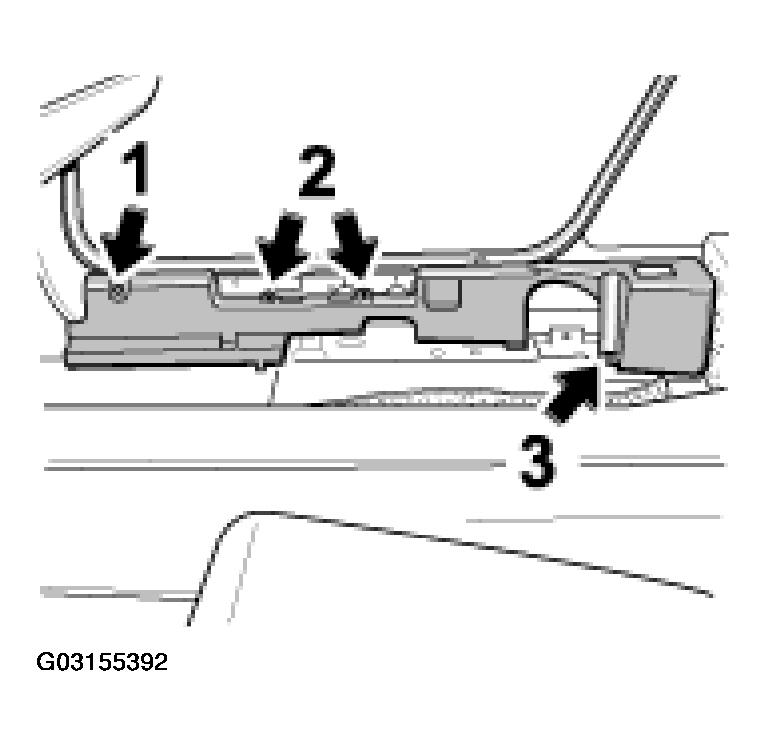

- Push in the locating peg -1-
of the support and check that it is sitting correctly.
- Tighten the fastening nuts -3-
and the fastening screws -2-
. Tightening torque -2-
7.2 Nm (5.5 ftlb.).
Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Lay the floor covering over the support and engage.
