Engine Installed Tools

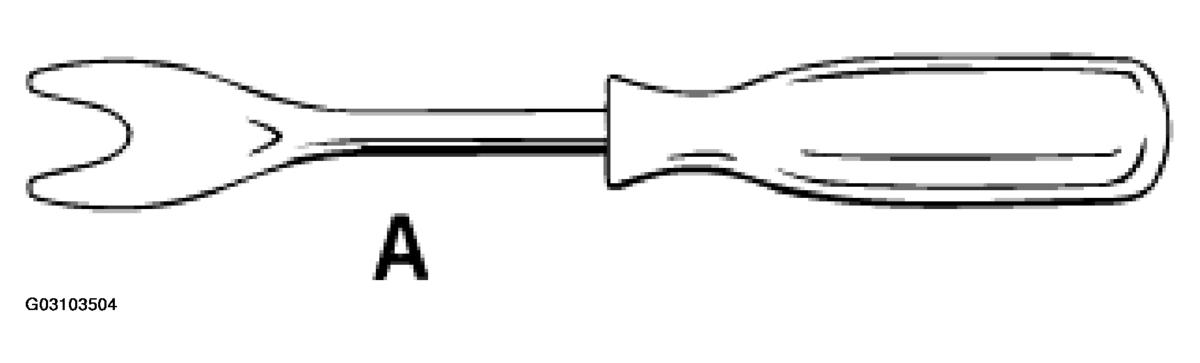

Fig 1: Identifying Special Service Tool, Removal Tool

Courtesy of PORSCHE OF NORTH AMERICA, INC.

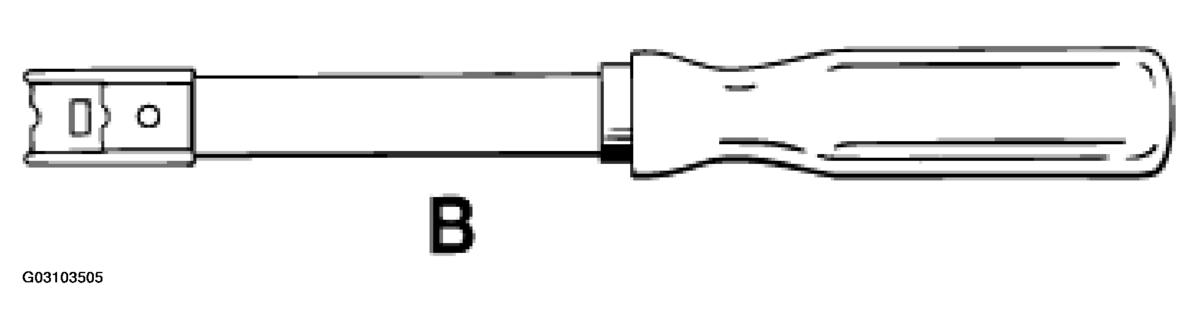

Fig 2: Identifying Special Service Tool, Assembly Tool

Courtesy of PORSCHE OF NORTH AMERICA, INC.

HYDRAULIC PUMP REMOVING AND INSTALLING TOOL EXPLANATION

No.	Designation	Special tool	Explanation
A	Removal tool see Fig 1 .	commercially available	Disconnect steering return line on hydraulic pump
B	Assembly tool for pin retainer see Fig 2	commercially available	Remove/fit hinge lock on convertible top compartment lid
