Removing And Installing Deflection Lever: Removal

  1. Detach selector lever cable at deflection lever.

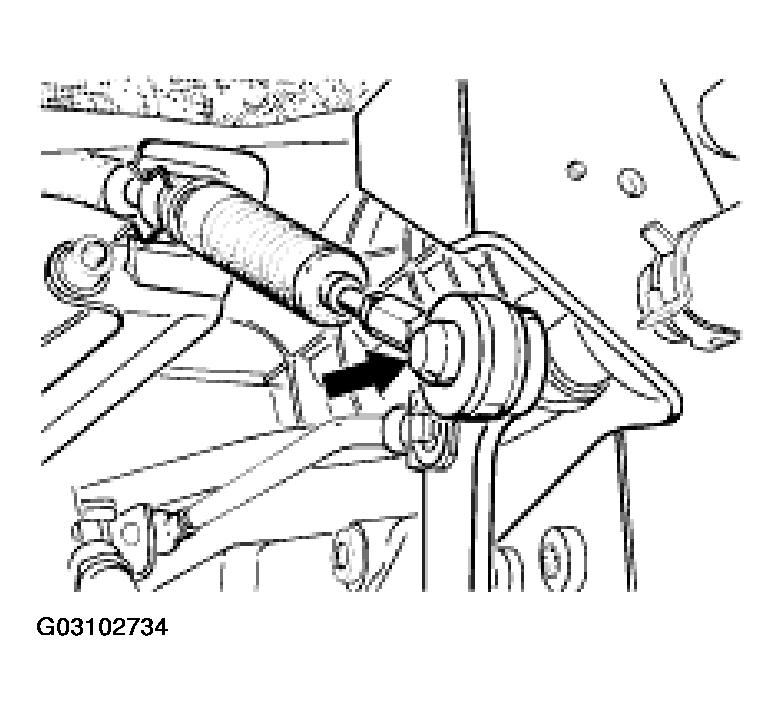

    Fig 1: Detaching Selector Lever Cable At Deflection Lever
    G03102734Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Unclip push rod on transmission lever.
  3. Remove snap ring for deflection lever and remove lever with push rod.

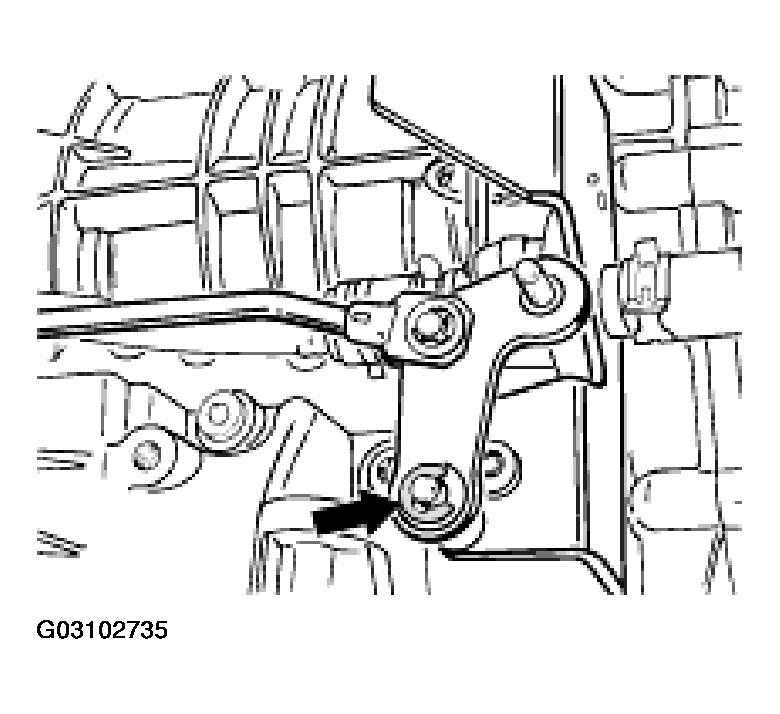

    Fig 2: Removing Snap Ring For Deflection Lever
    G03102735Courtesy of PORSCHE OF NORTH AMERICA, INC.
