Removing And Installing Multi-Function Switch: Installation

Install in the reverse order.

1. Put multifunction switch on the selector shaft. The flat point on the serrations in the switch (3) must lie against the flat point on the selector shaft (1).

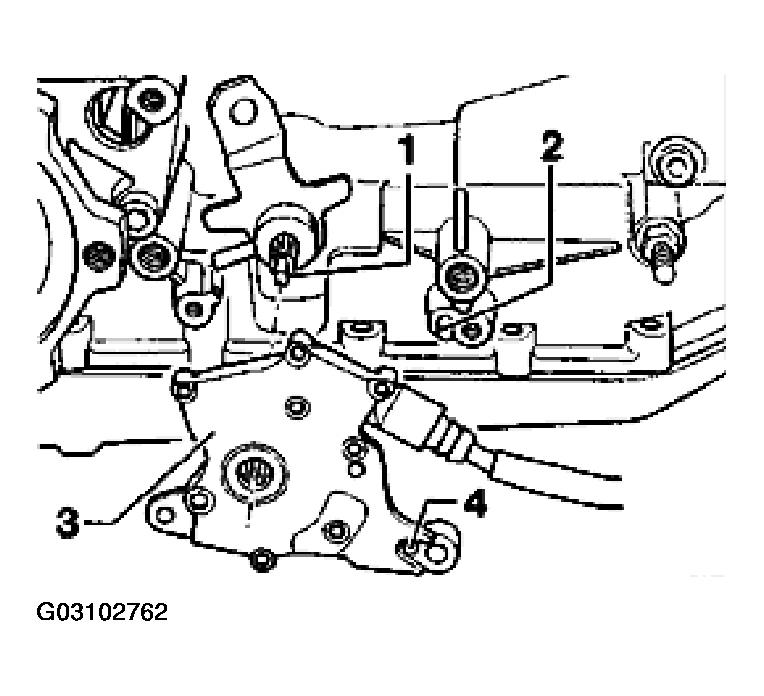

   Fig 1: Putting Multi-Function Switch On Selector Shaft

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
   NOTE:

   • Place multifunction switch on the selector shaft. Do not tilt or use force: you may damage the switch contacts.
2. Turn switch until the fitting bore (4) can be put on the dowel pin (2) on the transmission housing. See Fig 2 .

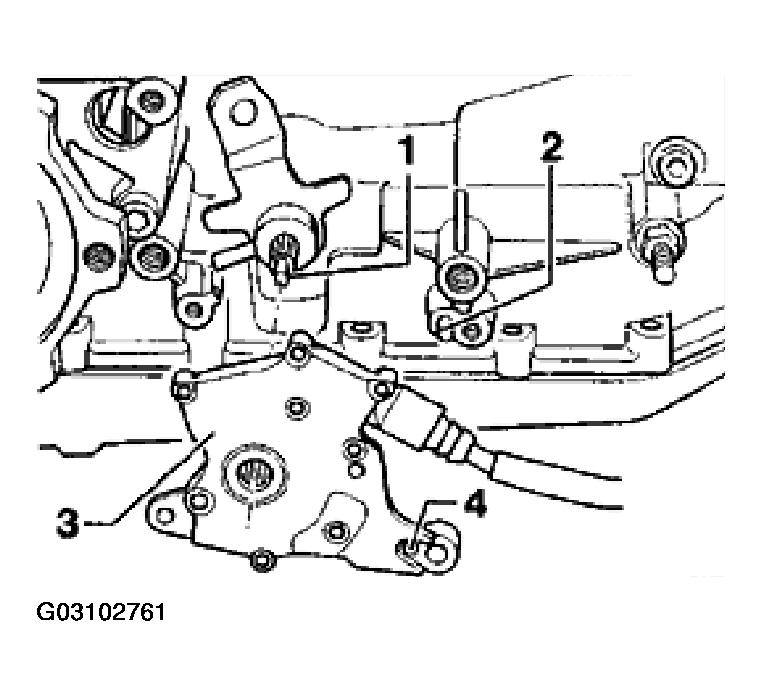

   Fig 2: Turning Switch Until Fitting Bore Can Be Put On Dowel Pin

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
